Impulse Voltage Generator
Fully compliant with IEC 60060-1 and IEEE Std 4 standards for 1.2/50 μs lightning surge testing. We help global clients validate insulation margins, eliminate critical field failures, and secure power grid reliability.
01
15+
Years of R&D Experience
02
6000+
Completed Project Cases
03
CE/ISO
Full Export Certifications
04
98.5%
Project Acceptance Rate
-
![Lightning Impulse Test System]()
Lightning Impulse Test SystemThe MOEORW-WGJ28 lightning impulse test system is based on the Marx multi-stage loop principle and can generate various high-voltage pulse waveforms, including standard lightning impulse waves and -
![Surge Impulse Voltage Tester]()
Surge Impulse Voltage TesterThe MOEORW-WJC5-50 Fully Automatic Insulation Material Dielectric Breakdown Voltage Tester measures breakdown strength and withstand voltage of solid insulators (plastics, rubber, films, resins, -
![Impulse Voltage Test Device]()
Impulse Voltage Test DeviceThe MOEORW-W3100-II impulse voltage generator is a test product designed for electrical engineers, manufacturers, and testing institutions. It features standard impulse waveforms and adjustable -
![Lightning Impulse Voltage Generator Test Equipment]()
Lightning Impulse Voltage Generator Test EquipmentThe MOEORW-WGJ29 fully automatic lightning impulse voltage test system is used to generate lightning impulse voltage waves, chopped waves, and switching impulse voltage waves, and can perform -
![Lightning Impulse Voltage Generator]()
Lightning Impulse Voltage GeneratorThe MOEORW-W3030C impulse voltage tester outputs a standard 1.2/50μs waveform with an adjustable peak voltage of 3kV~30.5kV. It conforms to IEC and multiple national standards and is used for -
![25kA Impulse Current Generator]()
25kA Impulse Current GeneratorThe Wuhan Moen Intelligent MOEORW-W320-25kA Impulse Current Test System is designed for indoor high-voltage testing. It has a rated impulse current of 25kA and is compatible with national/IEC -
![400 kV - 30 kJ Impulse Voltage Generator (4-Stage Marx Circuit)]()
400 kV - 30 kJ Impulse Voltage Generator (4-Stage Marx Ci...400 kV / 30 kJ 4-stage Marx impulse voltage generator — Siemens PLC, ±1% measurement accuracy, IEC 60060-equivalent waveforms. For distribution transformer, bushing, arrester and GIS impulse testing.
What is a Lightning Impulse & Why Does It Matter for Power Grids?
A standard lightning impulse is defined by international standards like IEC 60060-1 and IEEE Std 4 as a 1.2/50 μs transient overvoltage waveform, designed to test the Basic Insulation Level (BIL) of electrical equipment against atmospheric lightning strikes.
As an essential part of high voltage testing equipment, conducting a lightning impulse test allows engineers to simulate real-world atmospheric hazards in a controlled laboratory environment. This rigorous simulation helps substation managers, utilities, and apparatus manufacturers validate design margins, verify dielectric strength, and ensure regulatory compliance to eliminate catastrophic field failure risks in critical power grid infrastructure.
Why Choose Our Impulse Voltage Test System?
International Standard Compliance
Fully certified to meet IEC 60060-1, IEC 60230, and IEEE Std 4 specifications. Our systems guarantee 100% compliance for all global power grid acceptance and type tests.
Precision Waveform Control
Engineered with ultra-low internal inductance and advanced Marx circuit tuning. It consistently delivers highly stable 1.2/50μs lightning and 250/2500μs switching impulse shapes.
Intelligent Automated Operation
Equipped with a fully-shielded fiber-optic control system and intuitive PLC interface. Operators can safely manage charging, triggering, and waveform analysis from the control room.
Robust Diagnostic Safety
Features real-time peak voltage tracking, over-current trip protection, and an integrated rapid-earthing mechanism. Your operators and test objects are protected under all breakdown conditions.
Marx Generator Structure & Step-by-Step Operation Process

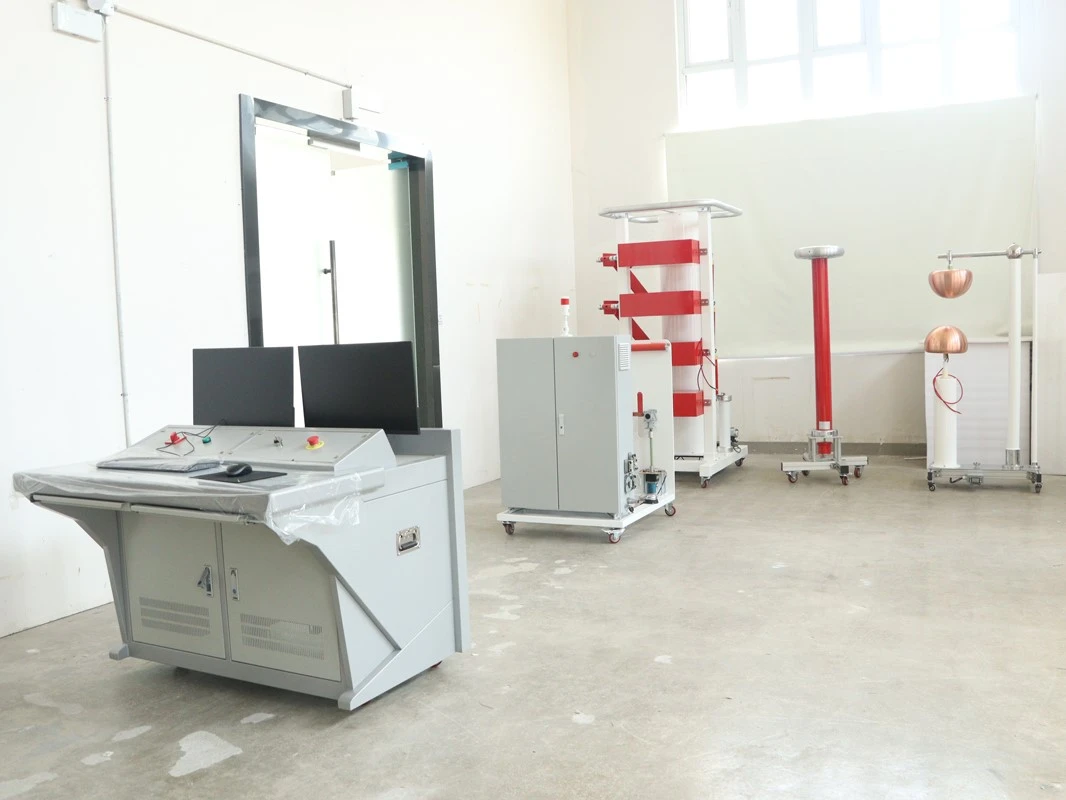

Core Equipment Components
- Marx Impulse Generator Loop: Main multi-stage capacitor tower equipped with precise, automated sphere gap triggering switches.
- DC Charging Power Supply: Provides highly stable, symmetric constant-current charging for all inter-stage capacitors.
- Damped Capacitive Divider: Delivers linear, high-precision voltage reduction for accurate peak measurement and feedback.
- Fiber-Optic Control & Analysis System: Fully isolated PLC control system for safe remote triggering and digital waveform recording.
Step-by-Step Operation Process
- Parallel Charging: The stable DC power supply safely charges all capacitor stages in a parallel circuit layout to store high energy.
- Sphere Gap Triggering: The fiber-optic control system fires the spark gap switch, instantly switching capacitors from parallel to series connection.
- Impulse Discharge: An ultra-high voltage, brief electrical pulse is generated instantly and injected directly into the designated test object.
- Waveform Measurement: The capacitive voltage divider scales down the signal, allowing the software to instantly display, log, and analyze peak values.
Why Global Utilities Trust Our High Voltage Testing Equipment
Verified High Voltage Reliability
As a leading high voltage testing equipment manufacturer, we engineer every system to withstand continuous, full-load impulse stress. This guarantees maximum asset uptime and steady performance for your long-term laboratory operations.
100% International Market Acceptance
Our impulse voltage test systems produce certified factory acceptance reports that are globally recognized by utility boards, government inspectorates, and power grid authorities worldwide.
Advanced Waveform Customization
Easily switch and tune wave-head and wave-tail resistors to deliver standard lightning surges, switching impulses, or chopped waves. Our flexible impulse testing solutions adapt to multiple testing criteria.
Maximizing Your Laboratory ROI
By replacing external testing services with our cost-effective, automated high voltage test system, you drastically reduce product time-to-market, minimize compliance expenses, and boost your market competitiveness.
Marx Impulse Voltage Generator Specifications (100kV to 4800kV+)
As a professional high voltage testing equipment factory, we design and supply a comprehensive range of Marx impulse voltage generators tailored to different voltage levels and energy capacities:
Low-to-Medium Voltage Impulse Generators (100kV - 400kV)
Optimized for distribution transformers, instrument transformers (CT/PT), surge arresters, and low-voltage electrical components.
High Voltage Marx Generators (400kV - 1200kV)
Engineered for mid-to-high voltage power apparatus including power cables, outdoor insulators, and medium-sized power transformers.
Ultra-High Voltage (UHV) Testing Systems (1200kV - 4800kV+)
Custom-built, heavy-duty multi-stage tower structures designed for ultra-high voltage grids, GIS (Gas Insulated Switchgear), and national-level electrical power research institutes.
Impulse Testing Applications for Transformers, Cables, and GIS
Our high voltage impulse generators provide critical lightning surge simulation and insulation verification for:
Power Transformers & Distribution Units
Evaluating the winding insulation under severe atmospheric transient overvoltages.
01
High Voltage Cables & Accessories
Performing type tests and routine testing on XLPE cables, joints, and terminations.
02
GIS (Gas Insulated Switchgear)
Verifying the dielectric strength of SF6 insulated systems and tracking internal flashover risks.
03
Insulators & Surge Arresters
Conducting critical flashover tests and residual voltage testing under simulated standard 1.2/50μs wave shapes.
04
High Voltage Surge Simulator & Marx Generator Nomenclature
In the global power engineering industry, our Impulse Voltage Generator is also frequently searched and referred to as:
Marx Generator High Voltage (Common in scientific research & academic labs)
Lightning Impulse Test System (Preferred by utility operators & compliance boards)
Impulse Voltage Test Equipment (Standard purchasing & procurement nomenclature)
High Voltage Surge Simulator (Frequently used in component & electronics testing)
FAQ
Q1: What standard waveforms can your impulse voltage generator produce?
A: Our impulse voltage test system generates standard 1.2/50μs lightning impulse waves and 250/2500μs switching impulse waves. Upon customer request, we can also customize the system with extra resistors to deliver chopped lightning waves and steep-front waves to meet specific IEC 60060-1 testing requirements.
Q2: Can your high voltage testing equipment pass third-party calibration (e.g., CNAS / NIM / ILAC)?
A: Yes, 100%. As a verified high voltage testing equipment manufacturer, all our power measuring instruments, capacitive dividers, and charging systems are designed for full traceability. We routinely assist global buyers in securing certified third-party calibration reports recognized by international power authorities.
Q3: How long is the production lead time, and do you offer international on-site installation?
A: Production lead time typically ranges from 45 to 90 days depending on the kV and kJ specifications of the Marx generator. We provide complete global engineering support, including professional on-site installation, system commissioning, and comprehensive operator training conducted by our expert senior high-voltage engineers.
As one of the most professional impulse voltage generator manufacturers in China, we're featured by quality products and good price. Please rest assured to buy high quality impulse voltage generator in stock here and get quotation from our factory. Customized orders are welcome.
