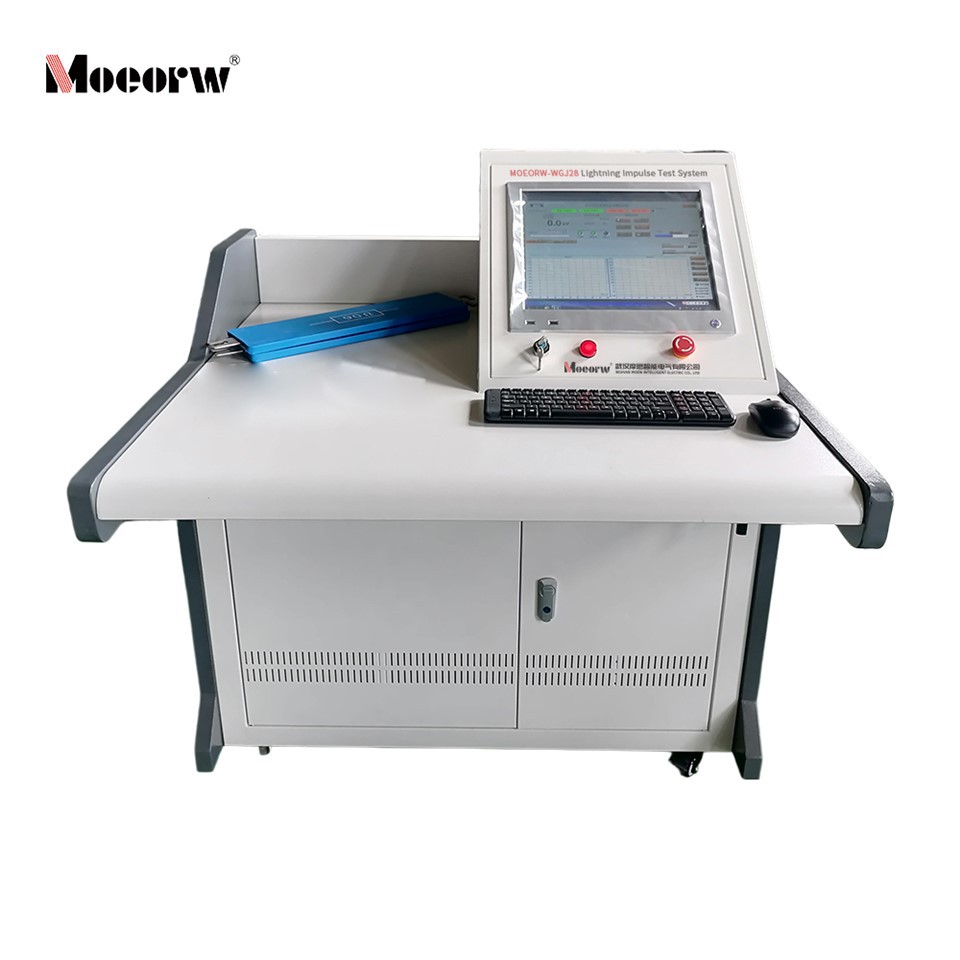

Lightning Impulse Test System

The MOEORW-WGJ28 (200kV-10kJ) lightning impulse test system is a test device that simulates high-voltage pulses. High-voltage pulses are frequently encountered in real life. For example, during a lightning strike, extremely high pulse currents and voltages occur at the point of impact, inducing high pulse voltages in the surrounding area. Similarly, the switching operations of equipment in power systems also cause transient pulse voltages. These transient pulse voltages often have amplitudes of tens or hundreds of kilovolts, which can damage equipment and endanger personal safety. Therefore, experimental research on impulse voltages is essential. On the other hand, simulating natural lightning phenomena to study the discharge mechanism is also very meaningful.

I. Basic Technical Parameters

II. Control System Technical Parameters

III. Protection Functions

Overcurrent protection (configurable)
Overvoltage protection (configurable)
Dynamic charging protection (optional)
Door switch interlock
Grounding mechanism interlock
Polarity conversion chain
IV. Output Impact Waveform Types
Standard lightning impulse waveform
Standard operating shock waveform
Special impulse voltage waveforms (such as special operation impulse waves, etc.)

Marx multi-stage loop is used

High-voltage pulses are generated by charging capacitors in parallel and discharging them in series. The principle is mature and reliable.

• Compact structure, easy to arrange indoors
• Supported by three insulated columns, each level uses high-density solid capacitors, which are lightweight, small in size, and have low site requirements.
• Flexible waveform modulation, suitable for various waveforms
• It can generate standard lightning shock waves, standard operating shock waves, and other special waveforms to meet different testing needs.
• Multiple operating modes
• It supports series connection, reduced series connection, series-parallel connection, and multi-stage parallel connection to adapt to different load characteristics of transformers, insulators, etc.
• PLC intelligent control
• It features manual, automatic, and program control functions, high stability of constant current charging, an intuitive user interface, and supports parameter setting and status display.
• Comprehensive protection and interlocking
• It integrates multiple protections such as overcurrent, overvoltage, charging abnormality, door switch, grounding, and polarity reversal to ensure the safety of equipment and personnel.
• Safety grounding design
• In case of abnormality, it can automatically ground and discharge, and is equipped with a manual grounding rod and a safety lock button. There are clear safety prompts before and after operation.

Power equipment factory and maintenance tests

Used for impulse voltage withstand tests on equipment such as transformers, reactors, instrument transformers, high-voltage switches, combined electrical appliances, surge arresters, power cables and accessories, bushings, and insulators.

Insulation Coordination Study

In the insulation design of high-voltage transmission systems and substations, simulated lightning or switching overvoltages are used to verify the rationality of insulation coordination between equipment.

Electromagnetic compatibility (EMC) research

Simulate high-voltage pulse environments to test the immunity performance of power electronic equipment and control systems.

Discharge Mechanism and Lightning Simulation Research

In research institutions or university laboratories, simulate natural lightning phenomena to conduct basic research on gas discharge, insulation aging, and other related topics.

High-voltage electrical product development and type testing

Used for operational impact testing and lightning impact testing of products such as circuit breakers and disconnect switches to verify whether their performance meets national or industry standards.
