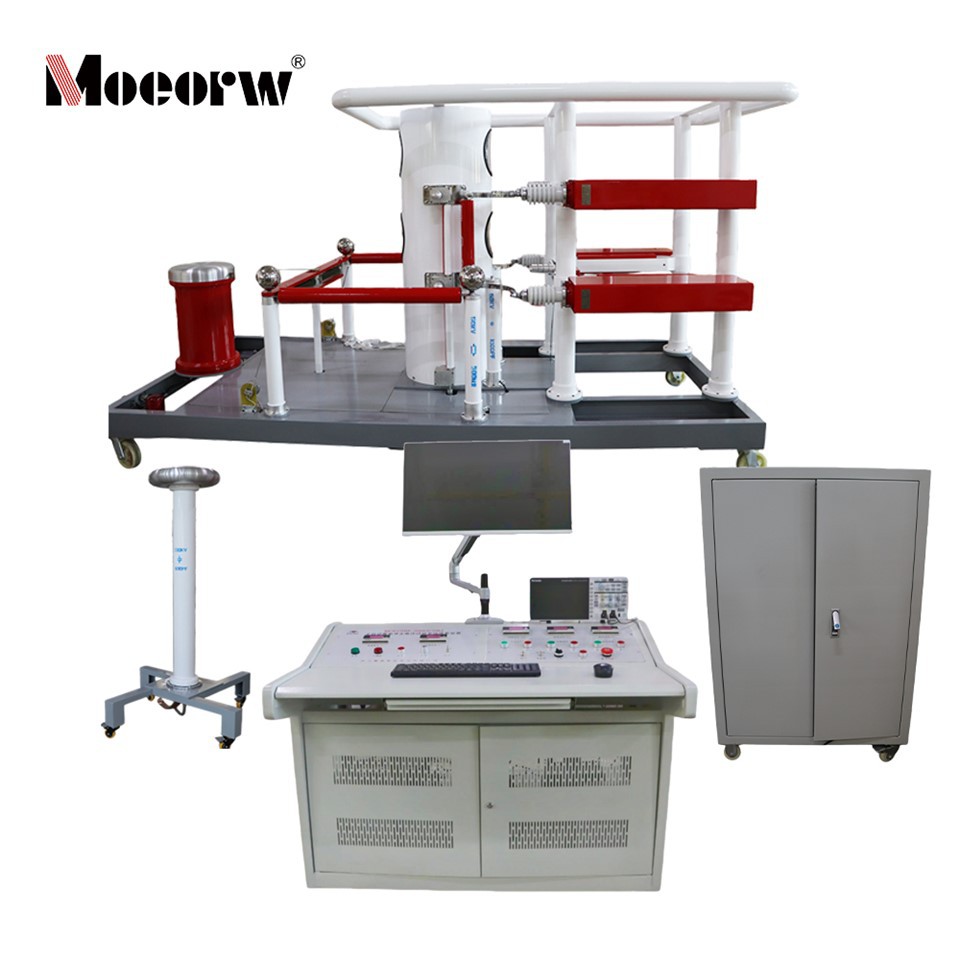

Product Introduction
The MOEORW-WGJ29 fully automatic 200kV lightning impulse voltage test system complies with IEC 61180-1 and IEC 60060-1 standards, generating precise 1.2/50 µs lightning impulse waves and switching impulses for equipment insulation testing.
Product Parameter (specification)
| MOEORW 200kV 10kJ Impulse Voltage Generator Specifications | |
| Technical Indicator | Standard Industrial Specification |
| System Model Configuration | MOEORW 200kV 10kJ Impulse Voltage Generator System |
| Nominal Lightning Impulse Voltage | ±200 kV |
| Nominal Charging Energy (Capacity) | 10 kJ |
| Impulse Capacitors Specification | 1 μF, 100 kV, oil-filled & fully insulated hermetic package |
| Stage Voltage Configuration | 100 kV per stage (2 stages in total) |
| Stage Capacity Allocation | 5 kJ per stage (2 stages total) |
| Standard Output Waveforms | 3 Types: Standard Lightning Impulse (1.2±30%/50±20% μs), Chopped Wave, and Switching Impulse Voltage Waves |
| Synchronization Range | ≥ 20% (Excellent synchronization range for stable multi-stage firing) |
| Synchronization Error Rate | < 1% |
| Amplitude Adjustment Accuracy | Error < 1%; Minimum output voltage ≤ 10% of nominal system voltage |
| Continuous Operating Duration | Continuous operation supported at < 80% rated operating voltage; Intermittent duty cycle at > 80% rated voltage |
| Maximum Load Capacitance | ≤ 5000 pF |
| System Grounding Resistance | < 1 Ω (Industrial-grade low grounding impedance for transient safety) |
| Base Dimensions & Mobility | 1.8m × 1.2m robust base, equipped with heavy-duty casters (Fully movable) |
| System Total Height & Weight | Height: Approx. 1.6 m | Net Weight: Approx. 320 kg |
Product Features & Technical Highlights
Multifunctional Impulse Waveform Outputs (⚡ Direct IEC 60060 Compliance)
Capable of generating standard lightning impulse voltage waveforms, lightning impulse voltage chopped waveforms, and switching impulse voltage waveforms. Perfectly tailored for advanced impulse and insulation verification testing on insulator strings, long air gaps, high-voltage bushings, instrument transformers, and power transformers.
High-Precision Voltage Adjustment & Reliable Firing Synchronization
Features high amplitude adjustment accuracy with an absolute error of less than 1% and ultra-stable voltage output. Delivers a wide synchronization range (≥20%) alongside an exceptionally low synchronization error rate (<1%), ensuring consistent multi-stage firing under complex laboratory conditions.
Industrial-Grade Safety Controls & Strict Grounding Protection
Equipped with an integrated automatic grounding switch, high-voltage charging protection resistors, and hardware-direct emergency stops. Engineered with a low system grounding resistance requirement (<1 Ω) to rapidly discharge hazardous residual voltage and maximize onsite operator protection.
Compact, Modular, & Highly Mobile Structural Design
The entire 200kV impulse voltage generator system features a highly compact layout with a moderate total height of approximately 1.6m. Built on a robust 1.8m × 1.2m base equipped with heavy-duty, industrial casters, allowing rapid mobility and flexible layout arrangement within compact testing bays.
Flexible Working Modes for Heavy-Duty Lab Applications
Supports continuous, non-stop testing operations under normal low-load conditions (<80% rated operating voltage). Efficiently switches to reliable intermittent duty cycles under high-load conditions (>80% rated voltage) to comfortably adapt to diverse research and factory acceptance testing (FAT) schedules.
Turnkey Package & Complete Accessory Integration
Supplied as a fully integrated, turnkey high-voltage test system, including custom charging transformers, high-voltage silicon rectifiers, capacitive voltage dividers, wave-chopping devices, steepening gaps, and an intelligent manual/automatic control console.
System Applications & Testing Capabilities
The Moecrw 200kV 10kJ Impulse Voltage Generator System is universally engineered to support state-of-the-art laboratory research, routine quality inspections, and Factory Acceptance Testing (FAT) across multiple heavy-duty industrial domains:
1. Insulation Performance & Dielectric Withstand Testing
Engineered to evaluate the transient high-voltage isolation integrity of critical substation electrical assets and high-voltage grid components, including:
- Insulator Strings: Suspension glass/porcelain insulators and composite insulator strings.
- High-Voltage Bushings: Transformer bushings, wall bushings, and GIS insulation components.
- Instrument Transformers: High-precision CTs (Current Transformers) and PTs (Potential Transformers).
- Power Transformers: Distribution transformers, dry-type transformers, and specialized industrial coils.
2. Atmospheric Air Gap Discharge Analysis
Designed to simulate real-world air dielectric breakdown conditions by conducting critical high-voltage flashover experiments:
- Long Air Gaps: Impulse voltage withstand and breakdown characteristics testing for long air gap distances.
- Phase-to-Phase Spacing: Validation of insulation clearance designs for substation switchgear layouts.
3. Transient Overvoltage Protection & Simulation Research
Serves as an advanced research platform for testing grid surge performance and overvoltage mitigation assets:
- Atmospheric Overvoltage Simulation: Replicating destructive, real-world lightning strikes (1.2/50μs transient waves).
- Switching Overvoltage Simulation: Simulating transient grid switching surges to test sub-station safety margins.
- Surge Protection Devices (SPDs): Testing residual voltage and energy absorption on metal-oxide lightning arresters.
4. Specialized Chopped Wave & Steep Wave Testing
Provides the high-speed synchronization required to execute demanding destructive insulation diagnostics:
- Lightning Impulse Chopped Wave Tests: Simulating insulation responses during a lightning arrester operation or a flashover event.
- Steep Wavefront Correlations: Evaluating localized dielectric stress utilizing integrated steepening gap devices.
5. Advanced Scientific Research & Academic Laboratories
Acts as an indispensable testing instrument for university research facilities and national high-voltage engineering labs focusing on advanced dielectric physics, insulation aging trends, and next-generation power grid equipment development.
System Configurations & Package List
The Moecrw MOEORW-WGJ29-200kV/10kJ Automatic Lightning Impulse Voltage Testing System is a turnkey high-voltage laboratory solution comprising four core subsystems:
Main Impulse Generator & Charging System
Includes high-performance main impulse capacitors (1 μF, 100 kV per stage), charging transformer, high-voltage silicon rectifiers, and protection resistors.
Integrated Measurement & Safety Protections
Incorporates weak-damped capacitive voltage dividers, automatic grounding switches, and damping/coupling capacitors.

High-Precision Waveform Tuning Elements
Features interchangeable wave-front/tail resistors, wave-chopping devices, steepening gaps, and charging clamping resistors.
Integrating the robotics ecosystemIntelligent Measuring & Control Center
Smart PLC/PC workstation for automated charging, triggering, and waveform analysis.
Operating & Environmental Conditions
- Altitude & Weather: Altitude ≤1,000m; temperature -20°C to +40°C; relative humidity ≤90% (at 20°C).
- Site Safety: Free from conductive dust, corrosive gas, explosive vapors, or severe vibrations.
- Floor Levelness: Foundation slope ≤3°; floor unevenness within ±1 mm/m² for mobile setups.
- Power Input: Stable 50Hz sine wave; waveform distortion rate < 3%.
- Grounding Grid: Dedicated grounding grid with steady-state resistance strictly ≤ 0.5 Ω.
- Safety Clearance: Minimum clearance between 200kV high-voltage terminal and grounded objects must be ≥ 1.0 meter.
FAQ
Q: Which international testing standards does the Moecrw 200kV impulse generator comply with?
A: The system fully complies with IEC 60060-1 (High-voltage test techniques) and IEEE Std 4 industry standards for high-voltage dielectric insulation testing.
Q: What type of capacitors are used, and can they be safely moved within the factory floor?
A: The system utilizes 1 µF, 100 kV oil-filled, fully insulated hermetic capacitors (2 stages in total). The entire system is built on a compact 1.8m × 1.2m base equipped with heavy-duty casters for effortless shop floor mobility.
Q: What are the strict grounding and safety distance requirements for this 200kV system?
A: The steady-state grounding resistance must be strictly ≤ 0.5 Ω. During operation, the minimum safety clearance between the 200kV high-voltage terminal and surrounding grounded structures must be at least 1.0 meter.
Q: Can it generate switching impulses and chopped waves out of the box?
A: Yes. This multifunctional package includes custom wave-chopping devices and steepening gaps, supporting standard lightning impulses (1.2/50 μs), chopped waves, and switching impulse voltage waves.
Q: Do you support customized OEM/ODM services or global onsite commissioning?
A: Yes. We are an original factory offering direct factory prices, customized multi-language UI/test reports, and long-term remote or onsite technical training for global system integrators.
