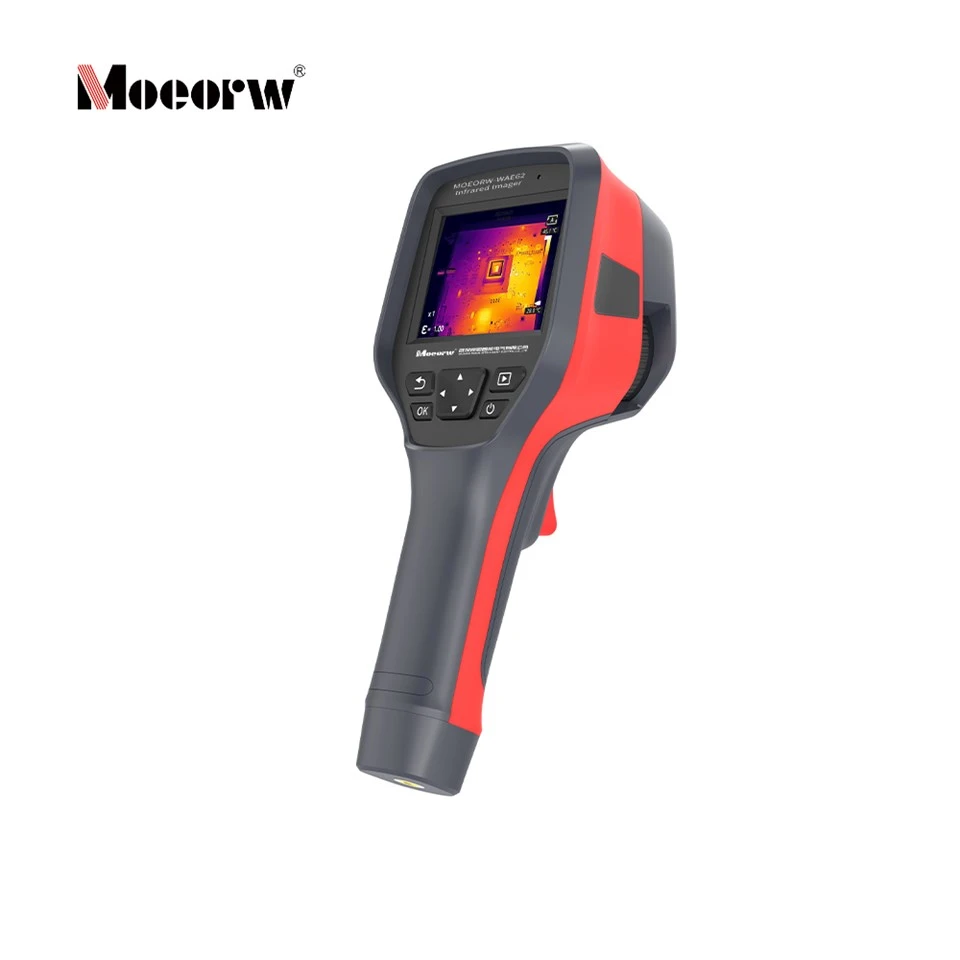

Cost-Effective Entry Thermal Scanner

MOEORW-WAE62 entry-level industrial handheld thermal imager is a cost-effective dual-light temperature measurement device developed for general industrial inspection scenarios. Equipped with standard uncooled vanadium oxide infrared detector and matched visible light sensor, it realizes real-time temperature monitoring and basic target temperature reading, supporting dual-light fusion, picture-in-picture and multi pseudo-color display modes.

Adopting lightweight ergonomic handheld structure, the unit meets IP54 dustproof and waterproof protection grade and 1.8-meter anti-drop standard, with built-in SD card local storage, Class 2 laser locator, LED auxiliary fill light and basic Wi-Fi wireless transmission module. It is suitable for daily power patrol, general mechanical fault detection, basic building inspection and conventional fire rescue work. The product sales and after-sales service are limited to Chinese Mainland; laser beam is forbidden to directly irradiate human eyes and skin to avoid tissue damage.

Hardware & Structural Design
1.Standard dual independent optical paths for infrared thermal and visible light, equipped with manual focusing wheel to adjust imaging definition; reserved tripod mounting port for temporary fixed monitoring.
2.Hybrid operation mode of physical navigation key group and small-size capacitive touch screen, simplifying shortcut operations for daily field inspection.
3.Detachable lithium battery design with dual charging options: charging dock for separate battery fast charging, TYPE-C wired charging for on-site emergency power supply.
4.Dedicated laser trigger key for momentary laser positioning output; shortcut navigation key to switch LED fill light; independent shutter calibration key for daily thermal image correction.


Core Performance Advantages
1.320×240 standard resolution infrared detector with NETD less than 60mk, meeting temperature difference capture demand of general industrial daily inspection.
2.Max 4× digital zoom without lens replacement, supporting local amplification to observe conventional abnormal temperature areas.
3.Basic multi-form temperature measurement logic: point, line and rectangular box measurement functions available, with simple temperature threshold visual alarm function.
4.Four switchable display modes with adjustable fusion transparency and picture-in-picture scale to realize basic dual-light registration observation.
5.Two basic temperature highlighting algorithms (Focus Highlight, Temperature Highlight), with customizable threshold to mark abnormal temperature zones with single-color overlay.


Practical Application Value
1.64G built-in storage supports snapshot and short-time video recording; media files can be exported via TYPE-C cable for simple inspection report arrangement.
2.Single-band Wi-Fi wireless linkage: basic screen casting for remote viewing, mobile hotspot for portable device real-time preview.
3.Basic adjustable system parameters: screen brightness, auto power-off timer, temperature unit switch, factory reset recovery function.
4.Lightweight industrial shell with IP54 protection and 1.8m anti-drop design, adapting to daily general workshop and construction inspection scenarios.
5.Long-term storage maintenance rule: power on continuously for 3 hours every half a year to maintain stable equipment performance during idle storage.

1.Conventional Power Patrol: Daily overheating risk inspection of distribution boxes, common cables and low-voltage electrical equipment.
2.General Mechanical Maintenance: Routine temperature monitoring of common motors, ordinary hydraulic pipelines and general production equipment to judge simple overheating faults.
3.Basic Building Inspection: Wall thermal bridge preliminary positioning, simple roof water leakage detection, conventional heating pipeline hidden danger screening.
4.Daily Fire Rescue: Smoke penetration target identification for conventional fire scene trapped personnel and high-temperature fire source positioning.
5.General Laboratory Research: Conventional constant temperature equipment calibration, basic material thermal performance testing.
6.Municipal Conventional Pipeline Inspection: Thermal leakage screening of civil heating pipelines and common buried fluid pipelines.

1.Detachable lithium-ion battery: Provides independent spare power for daily all-day field inspection.
2.Special charging dock: Realizes separate fast charging of battery without occupying the main device for detection work.
3.SELV safety standard power adapter: Avoids electric shock risk during charging operation, matching the equipment power demand.
4.TYPE-C data transmission cable: Realizes synchronous charging and media file export operation.
5.Lightweight portable storage case: Shockproof and dustproof storage for equipment and accessories during transportation; original packaging must be used for after-sales return maintenance.
6.Simplified operation manual: Contains core safety warnings, parameter introduction and basic operation steps for daily quick reference.
