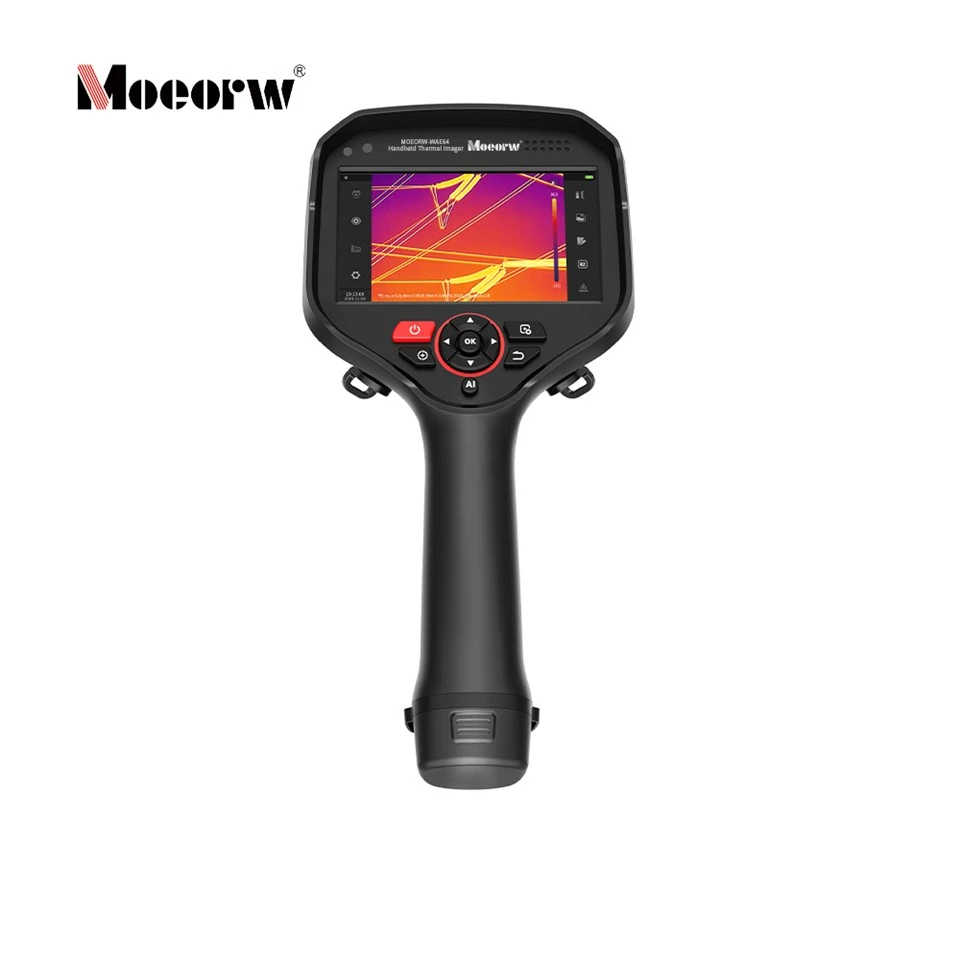

Handheld Infrared Thermal Inspection Camera

This MOEORW-WAE64 portable temperature measurement hardware is designed for professional industrial fault diagnosis technicians, equipped with high-performance infrared detector chips to output accurate temperature readings and layered thermal images. The ergonomic grip body is matched with a large touch display and self-developed embedded operating system to simplify complex on-site measurement procedures.

Integrated with laser distance sensor, multi-speed focus control, digital zoom module and multiple wireless transmission modules, the unit supports local video recording, image storage and on-board report compilation. A complete set of matching accessories is delivered as standard, with multiple replaceable optical lenses available as optional upgrades to adapt to microelectronics, power grid, high-temperature metallurgy and storage tank inspection scenarios. All hardware has passed safety tests for handheld portable equipment, complying with global standards for lithium batteries, radio frequency and waste electronic product management, with complete safety operation guidelines attached.

Hardware & Mechanical Structure Design
1.Integrated front optical module combining infrared lens, visible light camera, LED auxiliary fill lamp and laser distance sensor; rotatable focus ring for micro adjustment of optical focal length.
2.Dual removable lithium battery design with dedicated charging cradle, supporting simultaneous charging of main unit and spare batteries via matched dual Type-C charging wires.
3.Dual operation mode of touch screen touch control and physical navigation buttons; freely definable shortcut key supports one-click activation of voice input, laser ranging and other commonly used inspection tools.
4.Built-in multi-frequency wireless communication hardware to realize remote device operation, offline data exchange and file upload to cloud server.


Thermal Imaging & Temperature Measurement Capability
1.High-sensitivity infrared detector captures subtle temperature differences; self-developed image fusion algorithm optimizes thermal image definition and contrast performance.
2.Multi-stage digital electronic zoom function with real-time magnification ratio display; image dragging and panning supported when previewing zoomed pictures in local gallery.
3.Adjustable temperature range slider, multiple switchable color rendering schemes and manual image correction function to reduce imaging measurement errors.
4.Full set of temperature analysis tools: spot, line, rectangle, circle and polygon temperature measurement markers, isotherm overlay display and high-temperature threshold alarm for visual analysis of thermal data.
5.Adjustable global environmental compensation parameters: surface emissivity, ambient air temperature, target measuring distance, atmospheric transmittance and background reflection temperature to improve overall measurement precision.


Practical Value for On-site Inspection
1.Four optional focusing modes (manual optical adjustment, one-touch auto-focus, continuous intelligent focus, laser-aided focus) to guarantee stable clear thermal images during long-duration field detection.
2.Automatic file naming based on accurate timestamp information; all environmental measurement parameters embedded into image files for complete inspection record traceability.
3.On-device image editing function supporting multi-file batch sorting, renaming and mass deletion; one-click generation of standard PDF inspection reports without external computing devices.
4.Multiple data transmission channels available: offline SD card export, Type-C wired data transmission, LAN remote client connection, mobile terminal APP wireless pairing, FTP and cloud platform synchronization for cross-device secondary data analysis.
5.Built-in standard inspection process templates and intelligent diagnosis mode to unify operation standards for repetitive daily industrial detection tasks.

1.Cleaning of housing and cables: Do not spray cleaning liquid directly onto the equipment; wipe with dust-free soft cloth dipped in special detergent. Read safety instructions of cleaning agents before use to avoid corrosion risks.
2.Infrared lens maintenance: The lens surface is coated with anti-reflection film, only wipe gently with dedicated lens paper. Do not use tissue or rough cloth with excessive force to prevent coating scratches.
3.Detector protection: Regardless of lens cap status, never aim the lens at the sun or high-power laser equipment, which will permanently damage the detector and degrade long-term temperature measurement accuracy. The operating temperature of the device shall not exceed 55°C.
4.Battery maintenance: Control charging environment within 0°C~45°C, operating temperature range of batteries is -20°C~50°C. Stop using the battery immediately if bulging, odor, overheating or deformation occurs; insulate battery poles with adhesive tape before disposal.
5.Long-term storage: Power off the device, remove batteries and store in the matching protective case; place in cool and dry environment, avoid direct sunlight, high temperature and humid conditions.

1.Power Grid Inspection Work: Thermal anomaly diagnosis for transformers, overhead transmission lines, distribution cabinets and electrical wiring joints
2.Industrial Storage Tank Inspection: Liquid level identification via thermal temperature difference distribution mapping for large storage containers
3.Electronic R&D Verification Test: Micro thermal detection of circuit boards with ultra-macro lens to analyze chip heat dissipation performance
4.High-temperature Kiln Equipment Maintenance: Defect inspection of refractory lining materials for rotary kilns and high-temperature industrial furnaces
