Auto-Focus Thermal Imager For Field Patrol

MOEORW-W400T auto-focus handheld infrared thermal imager is an upgraded dual-light temperature measurement device equipped with automatic focusing module, built on the core 384×288 infrared detector platform. The unit integrates auto-focus infrared lens, high-definition visible light sensor, multi-mode image processing algorithm and industrial-grade wireless transmission module, which realizes one-click clear imaging without manual focusing operation.

Ergonomic handheld structure matches field long-time inspection demand, with IP54 dustproof and waterproof performance and 2-meter anti-drop standard. It supports local SD card storage, Class 2 laser positioning, LED auxiliary lighting, Wi-Fi remote transmission and Bluetooth audio reception. Widely applied in power patrol, mechanical fault diagnosis, building energy-saving detection and fire rescue scenarios. The product is only available for sale and after-sales service within Chinese Mainland; direct laser irradiation to eyes and skin is strictly prohibited to avoid tissue damage.

Hardware & Structural Design
1.Auto-focus integrated infrared optical path, eliminating manual focusing operation; independent visible light lens matched for dual-light synchronous imaging, reserved tripod mounting port for fixed monitoring.
2.Hybrid control system of physical key group and full-touch screen, supporting one-touch shortcut operation for auto-focus, fill light and digital zoom.
3.Quick-release detachable lithium battery, dual charging schemes: charging dock for separate fast charging, TYPE-C wired charging for on-site power supply.
4.Independent laser trigger key for instantaneous positioning laser output; shortcut key to switch LED fill light; dedicated shutter calibration key for real-time image correction.


Core Performance Advantages
1.384×288 high-sensitivity infrared detector with sub-50mk temperature noise, capturing subtle temperature difference signals in complex industrial environments.
2.Built-in auto-focus algorithm, automatically matching target distance to realize clear imaging without manual adjustment; max 8× digital zoom for local temperature detail amplification.
3.Multi-dimensional temperature measurement system supporting point, line and rectangular box measurement simultaneously, with configurable high/low temperature threshold visual alarm.
4.Four switchable display modes with adjustable fusion transparency and picture-in-picture scale to optimize dual-light registration effect.
5.Two sets of temperature highlighting algorithms (Focus Highlight, Temperature Highlight), with customizable threshold to mark abnormal temperature areas with distinctive color overlay.


Practical Application Value
1.64G local storage supports snapshot and long-time video recording; media files can be exported via TYPE-C cable for post-inspection data sorting and report production.
2.Full wireless linkage function: Wi-Fi screen projection for remote real-time monitoring, mobile hotspot for portable device preview, Bluetooth audio for wireless voice annotation playback.
3.Rich system adjustable parameters: screen brightness, auto power-off timer, temperature unit switch, emissivity display control, factory reset recovery function.
4.Industrial environmental resistance design: IP54 dust and water protection, 2-meter anti-drop performance to reduce maintenance cost in harsh construction and workshop scenes.
5.Standard long-term storage maintenance rule: power on continuously for 3 hours every half a year to maintain stable internal electronic component performance.

1.Power Grid Inspection: Thermal anomaly detection of high-voltage equipment, distribution cabinets, cable terminals and power transmission lines to predict overheating faults.
2.Mechanical Equipment Maintenance: Real-time temperature monitoring of motor rotating parts, hydraulic pipelines, smelting furnaces and rolling machines to judge equipment wear state.
3.Building Energy Efficiency Detection: Wall thermal bridge positioning, roof leakage inspection, buried heating pipeline fault search, building heat loss assessment.
4.Fire Disaster Rescue: Smoke penetration imaging to rapidly locate trapped personnel and high-temperature fire sources under zero visibility environment.
5.Laboratory Scientific Research: Constant temperature equipment calibration, material thermal property testing, micro temperature difference experimental data recording.
6.Municipal Pipeline Inspection: Thermal leakage detection of heating, chemical and underground buried fluid transmission pipelines.

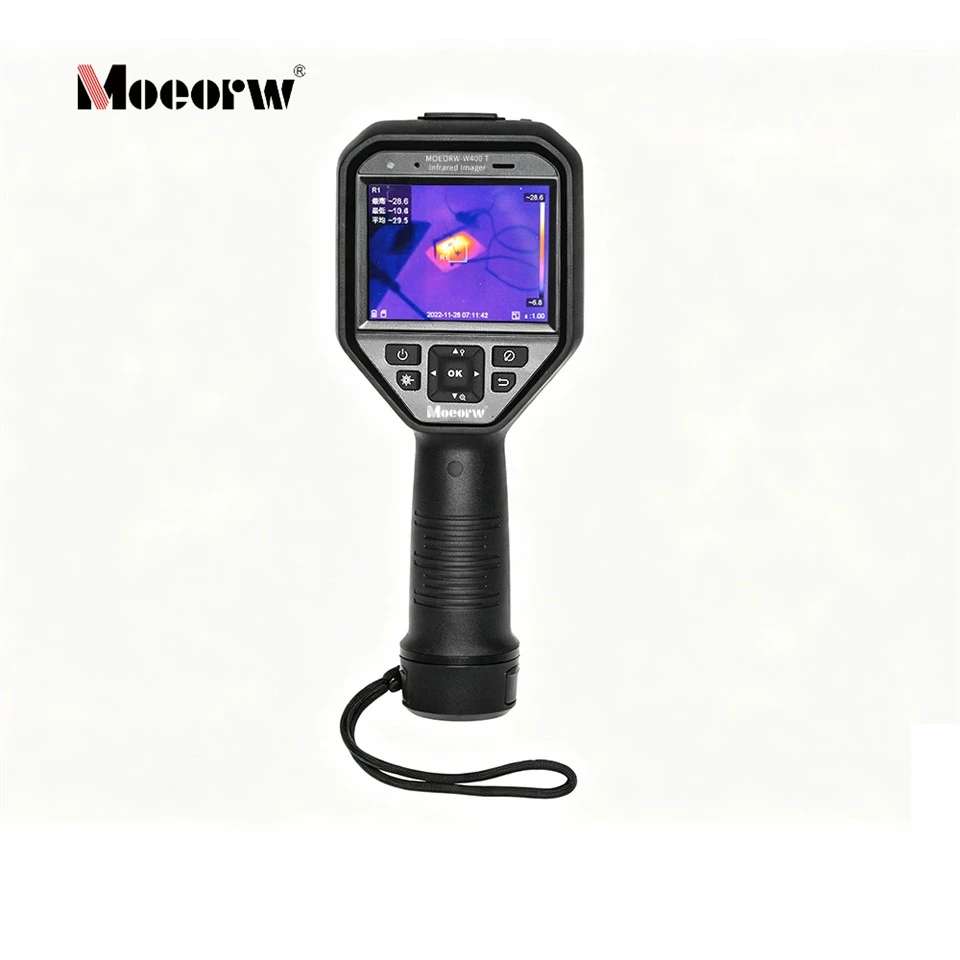

1.Front Panel: 3.5-inch touch LCD display, microphone, speaker, indicator light, integrated navigation key group with laser trigger, shutter calibration, return and slice shortcut keys.
2.Lens Side: Auto-focus infrared lens, visible light lens, LED fill light, laser locator, focusing auxiliary wheel, tripod mounting interface, trigger key (short press snapshot, long press recording).
3.Bottom Part: Detachable lithium battery compartment, TYPE-C charging & data transmission interface, SD card storage slot, sealed waterproof dustproof interface cover.
4.Control Key Definition: Laser key for momentary laser output; up/down navigation keys for fill light switch and digital zoom; shutter key for thermal image calibration; trigger key for media capture.
