15kV Intelligent Insulation Resistance Tester

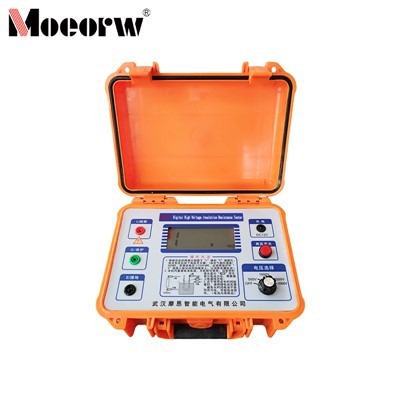

Product Introduction

MOEORW-W6015 Smart Insulation Resistance Tester complies with IEC safety standards, featuring 7 voltage ranges and manual voltage adjustment capability, with a maximum test capacity of 3TΩ. It supports dual power supply via battery or AC, automatically calculates polarization index and absorption ratio, offers strong anti-interference performance, and automatically discharges capacitive test specimens. The fully English display ensures user-friendly operation, making it suitable for power and industrial applications in equipment insulation performance testing and maintenance.

Product Parameter (specification)

Safety Specifications	IEC 61010-1 CAT.IV 600V Contamination Level 2 IEC 61326 EMC specification;Electrical equipment for testing, control and inspection IEC60529 IP64 (outer casing closed)
AC power supply	220V ± 10% , 50/60 HZ , 20 VA
Battery powered	16.8V lithium - ion battery
Battery life	20000V@ no load, approximately 4 hours
Dimensions (L x W x H)	270270170mm
Weight	3.5 kg
Test voltage accuracy	100% to 110% of nominal value.
Voltage measurement accuracy	5% +10V
Current measurement range	10mA
Current measurement accuracy	5% ± 0.2nA
Short-circuit current	2 to 5mA , adjustable output ( 10mA short-circuit current can be customized ).
Capacitance test range	20uF
Capacitance testing accuracy	15% +0.03uF
Insulation resistance test range and accuracy (Temperature	23 ± 5 º C , Relative humidity;45 – 75% RH

Range Accuracy	500V	1000V	2500V	5000V	10000V	15000V
not specified	<1M	<1M	<1M	<1M	<1M	<1M
5%	1M -10G	1M -20G	1M -100G	1M -100G	1M -200G	/
20%	/	/	/	/	/	300G -3T
not specified	> 100G	> 200G	> 1T	> 1T	> 2T	> 3T

Product feature and application

With a maximum test capacity of 3TΩ and the option to apply voltage manually, the MOEORW-W6015 Smart Insulation Resistance Tester has seven ranges: 500V, 1000V, 2500V, 5000V, 10000V, and 15000V.

Strict adherence to safety regulations was maintained during design.

Range of insulation resistance: 3TΩ @ 15kV.

● Short-circuit current that can be adjusted up to 5 mA (customizable variants with up to 10 mA short-circuit current are available).

Leakage current and capacitance are measured; polarization index (PI) and dielectric absorption ratio (DAR) test data are automatically shown; superior anti-interference capability preserves testing accuracy even with interference currents up to 2 mA.

● Rapid discharge for capacitive test specimens; the device provides automatic rapid discharge during cable testing, eliminating the need for human discharge.

● Dual power options: At 20000V no-load, a lithium-ion battery can run for up to 4 hours. allows for charging while in use. During blackouts, it automatically converts from AC to battery power.

● Simulated insulation resistance columns are clearly displayed in full Chinese with easy-to-understand Chinese prompts.

Comprehensive protective features, such as fuse blowout notification, reduce display variations caused by external interference thanks to the digital filtering function.

Prodection details

Power Systems: Insulation testing and inspection of high-voltage transmission cables and distribution equipment, as well as generators, transformers, and high-voltage circuit breakers in power plants and substations;

Industrial Production: Factory acceptance testing, regular maintenance, and troubleshooting of electrical machinery, such as variable frequency drives, motors, and machine tools;

Construction Projects: Acceptance testing of insulation performance for distribution panels, lighting/power systems, and electrical circuits;
Electrical testing involves calibrating parameters for insulating materials and electronic components in a lab, such as leakage current and insulation resistance;

Additional Uses: Evaluation of the insulation status of electrical equipment in sectors such as chemicals and railroads (ideal for capacitive test specimens and high-interference settings).

Company Qualifications

FAQ

1)Does the MOEORW-W6015 Smart Insulation Resistance Tester require manual discharge after testing high-voltage cables?

Answer: No. This instrument features rapid discharge for capacitive test specimens. When testing cables or other capacitive specimens, the device automatically performs rapid discharge without manual intervention. This ensures operational safety while simplifying the testing process.

2)What are the power supply features of the MOEORW-W6015 Smart Insulation Resistance Tester?

Answer: The instrument supports two power options:
1. 16.8V lithium-ion battery power supply, providing up to 4 hours of operation at 20000V under no-load conditions; Second, 220V±10% AC power supply, which allows charging during use. In the event of a power outage, the instrument automatically switches from AC to battery power to ensure uninterrupted testing.

3)When measuring high insulation resistance with the MOEORW-W6015 Smart Insulation Resistance Tester, how can the impact of surface leakage current on test results be minimized?

Answer: When measuring high insulation resistance, place a conductive protective ring over the surface between the two measurement terminals of the test specimen. Connect this protective ring to the instrument's G terminal (protective ring terminal) using test leads. This utilizes the low-voltage side shielding function to eliminate measurement errors caused by surface leakage current, ensuring test accuracy. During instrument calibration, connect the G terminal to the G terminal of the resistance box to ensure proper calibration
