10kV Intelligent Insulation Resistance Tester

Product Introduction

The MOEORW-W6010 Smart Insulation Resistance Tester complies with IEC safety standards, featuring 5 fixed ranges and manual voltage adjustment capabilities, with a maximum test capacity of 10TΩ. It supports automatic calculation of polarization index and absorption ratio, offers strong anti-interference performance, and automatically discharges capacitive test specimens. Powered by dual batteries for extended operation and simultaneous charging, it features a fully Chinese-language display for intuitive operation. Equipped with comprehensive protection and filtering functions, it is suitable for insulation testing in power, industrial, and other sectors.

Product Parameter (specification)

Safety Specifications	IEC 61010-1 CAT.IV 600V Contamination Level 2 IEC 61326 EMC specification;Electrical equipment for testing, control and inspection IEC60529 IP64 (outer casing closed)
AC power supply	220V ± 10% , 50/60 HZ , 20 VA
Battery powered	16.8V lithium - ion battery
Battery life	20000V@ no load, approximately 4 hours
Dimensions (L x W x H)	270230170mm
Weight	3.0 kg
Test voltage accuracy	100% to 110% of nominal value.
Voltage measurement accuracy	5% +10V
Current measurement range	10mA
Current measurement accuracy	5% ± 0.2nA
Short-circuit current	2 to 5mA , adjustable output ( 10mA short-circuit current can be customized ).
Capacitance test range	20uF
Capacitance testing accuracy	15% +0.03uF
Discharge rate of capacitor sample	From 10000V to 10V , 0.5S/µF
Insulation resistance test range and accuracy (Temperature	23 ± 5 º C , Relative humidity;45 – 75% RH

Range Accuracy	500V	1000V	2500V	5000V	10000V	Manual voltage adjustment
not specified	< 100k	< 100k	< 100k	< 100k	< 100k	Measuring range: 1G/V, 100G range at 100V. When the voltage is less than 300V, the resistance error increases by 10%.
5%	1M -10G	1M -20G	1M -100G	1M -100G	1M -200G
20%	10G - 100G	20G-200G	100G-1T	100G-1T	200G-2T
not specified	> 100G	> 200G	> 1T	> 1T	> 2T

Product feature and application

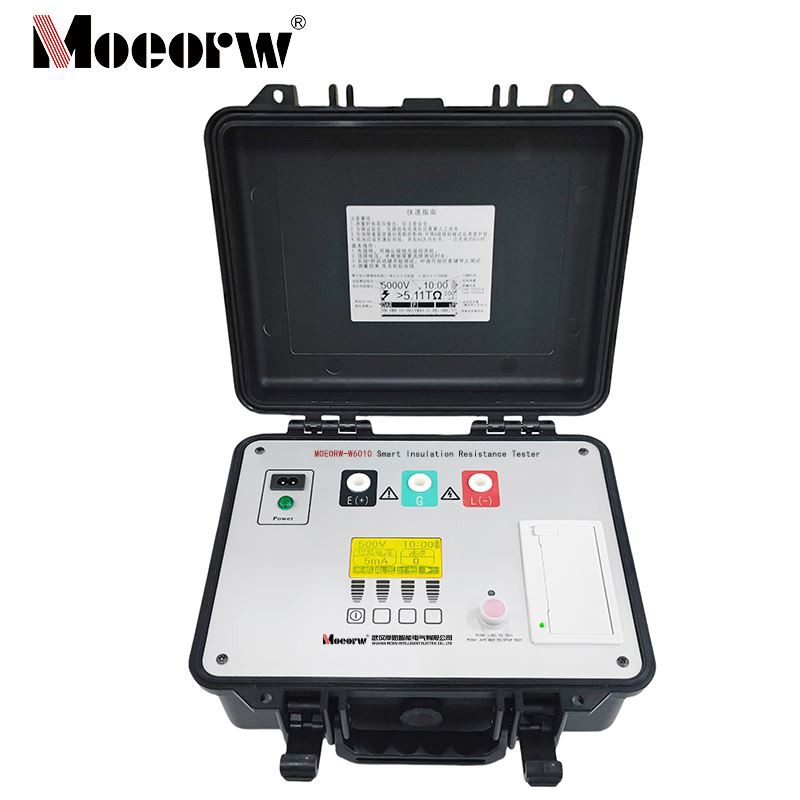

MOEORW-W6010 Intelligent Insulation Resistance Tester features five ranges: 500V, 1000V, 2500V, 5000V, and 10000V, with a maximum test capacity of 10TΩ.

● Designed in strict compliance with safety standards

● Insulation resistance range: 10TΩ@10kV

● Adjustable short-circuit current up to 5mA (customizable models available with 10mA short-circuit current).

● Automatically displays polarization index (PI) and dielectric absorption ratio (DAR) test values; measures leakage current and capacitance.

● Superior anti-interference performance maintains testing accuracy even with interference currents up to 2mA.

● Rapid discharge for capacitive test specimens; no manual discharge required during cable testing-instrument performs automatic rapid discharge.

● Dual power options: Lithium-ion battery provides up to 4 hours of operation (at 10,000V no-load).

Simultaneous charging during operation. Automatically switches from AC to battery power during outages.

● Full English display with clear operational prompts, featuring an insulation resistance simulation column.

● Digital filtering function mitigates display deviations caused by external interference.

● Comprehensive protection features including fuse blowout indication.

Prodection details

Power Systems:

Insulation testing and aging assessment for high-voltage equipment (generators, transformers), transmission cables, and distribution facilities

Industrial Sector:

Insulation maintenance for motors, industrial control equipment (PLCs, inverters), and electrical systems of special equipment

Building Electrical:

Insulation testing for distribution circuits, lighting/air conditioning systems in new/renovated buildings

Equipment Calibration:

Calibration of insulation resistance testers and related instruments (requires proper G-terminal connection to ensure accuracy)

Residential/Commercial:

Insulation performance testing for large home appliances and security equipment

Company Qualifications

FAQ

1)Can the MOEORW-W6010 Smart Insulation Resistance Tester be used in flammable locations? Why?

Answer: No. This instrument may generate sparks during testing. Since flammable locations contain combustible or explosive substances, sparks could trigger explosions. This violates the instrument's "hazardous" level safety requirements and may cause serious accidents.

2)What is the function of the G terminal (protective ring) on the MOEORW-W6010 Smart Insulation Resistance Tester?

Answer: The G terminal primarily eliminates measurement errors caused by leakage currents on the test specimen surface, ensuring testing accuracy. Especially when measuring high insulation resistance or calibrating the instrument, connecting the conductor protective ring on the test specimen's surface to the G terminal shields against surface leakage current interference, ensuring precise test results.

3)How does the MOEORW-W6010 Smart Insulation Resistance Tester ensure uninterrupted testing when battery power is low?

Answer: This instrument supports dual power supply modes and automatically switches between them. When the battery power is low, if an AC 220V power source is connected, the instrument will automatically switch from battery power to AC power supply. Additionally, the instrument can charge while in use, allowing it to replenish power without interrupting the test, ensuring continuous testing.
