Comprehensive Safety Compliance Tester

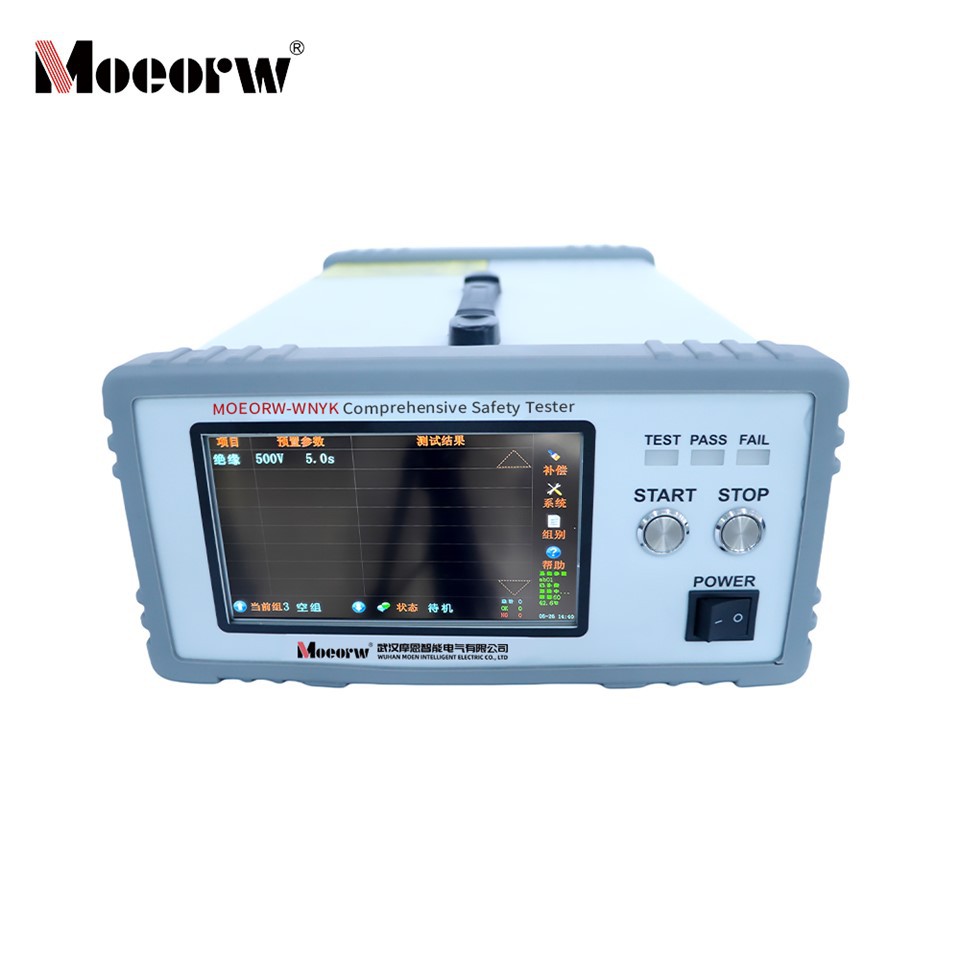

MOEORW-WNYK Comprehensive Safety Compliance Tester

The MOEORW -WNYK portable withstand voltage tester features 1% safety compliance accuracy, supports 5000V high voltage output, switches between test items in just 0.1s, and can perform multi-item combined testing, significantly improving testing efficiency.

Equipped with a 7-inch touchscreen and graphical operation guide, it supports multiple start/stop control methods and can perform intelligent self-testing down to the chip level, making it both convenient and safe to operate.

It supports both local and remote data storage, has multiple interfaces to adapt to various scenarios, enables remote upgrades, and its modular design makes equipment maintenance easier.

The MOEORW-WNYK portable withstand voltage tester provides testing functions for grounding resistance, insulation resistance, AC withstand voltage, DC withstand voltage, normal state contact current (dynamic leakage), fault state contact current (static leakage), low-voltage start-up, and power. To improve testing efficiency, this series of products offers multi-functional combined testing solutions such as grounding + AC withstand voltage, grounding + power, AC withstand voltage + power, and grounding + AC withstand voltage + power.

The MOEORW- W NYK portable withstand voltage tester continuously monitors the temperature of internal power devices. The analyzer terminates the test when the internal power device temperature reaches the analyzer's protection limit of 85°C.

The switching time between test items and the power polarity switching time for leakage current of the MOEORW -W NYK portable withstand voltage tester are both <0.1s. The switching time includes the protection time for functions such as discharge protection of the test item.

in this series of analyzers support built-in inspection fixtures for use and measurement .

This series of products features large capacity, powerful functions, high precision, fast speed, ease of use, easy maintenance, easy expansion, easy upgrade, and a high degree of informatization.

This product series strictly adheres to testing standards. It has a withstand voltage of 5000V x 100mA and supports short-term peak output of 5000V x 200mA. It features a 1MHz leakage current bandwidth and supports 6 human body network types.

The entire series features a touchscreen with graphical help instructions, making operation simpler;

It has testing functions for grounding, insulation, AC withstand, DC withstand, dynamic leakage, static leakage, low start-up, and power.

Joint testing of grounding, withstand voltage, power, and other parameters;

It features comprehensive protection functions, including grounding detection, leakage protection, and overcurrent protection.

High precision, with a basic safety standard accuracy of 1%;

The test is fast, with a test item switching time of approximately 0.1 seconds;

Intelligent features include intelligent self-testing of functional circuits down to the chip level.

Modular design, all circuits are modularized, tool-free assembly and disassembly;

Lifetime upgrade service for functional modules;

The system includes built-in help documentation, allowing users to access the corresponding help interface from any screen.

It comes standard with functional interfaces for equipment such as test power supply, barcode scanner, PLC system, and fully automatic inspection fixtures;

Test data is stored locally;

Services such as remote data storage and cloud upgrades based on RS232, CAN, and WIFI interfaces;

Customizable cloud data server features.

 Production line batch quality inspection : Adapted to mass production testing of electrical products on assembly lines, supporting rapid switching, joint testing, automated start-up and shutdown, and synchronous data storage.

 Laboratory R&D Testing : For new electrical products/samples, we perform high-precision safety performance tests with multiple adjustable parameters to meet R&D verification needs.

 On-site maintenance and inspection : Portable design allows for on-site testing of safety indicators of equipment in power, industrial control and other fields. Data can be stored locally or exported via USB.

 Third-party safety testing : Complies with national standards, covers all testing functions, has traceable data, and meets the accuracy requirements of third-party testing reports.
