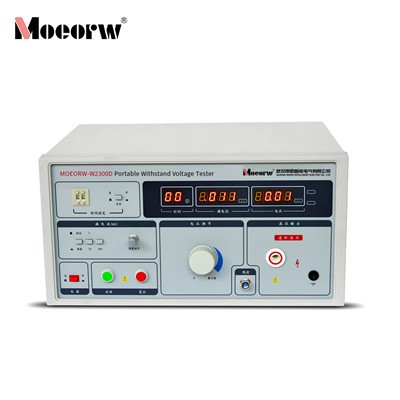

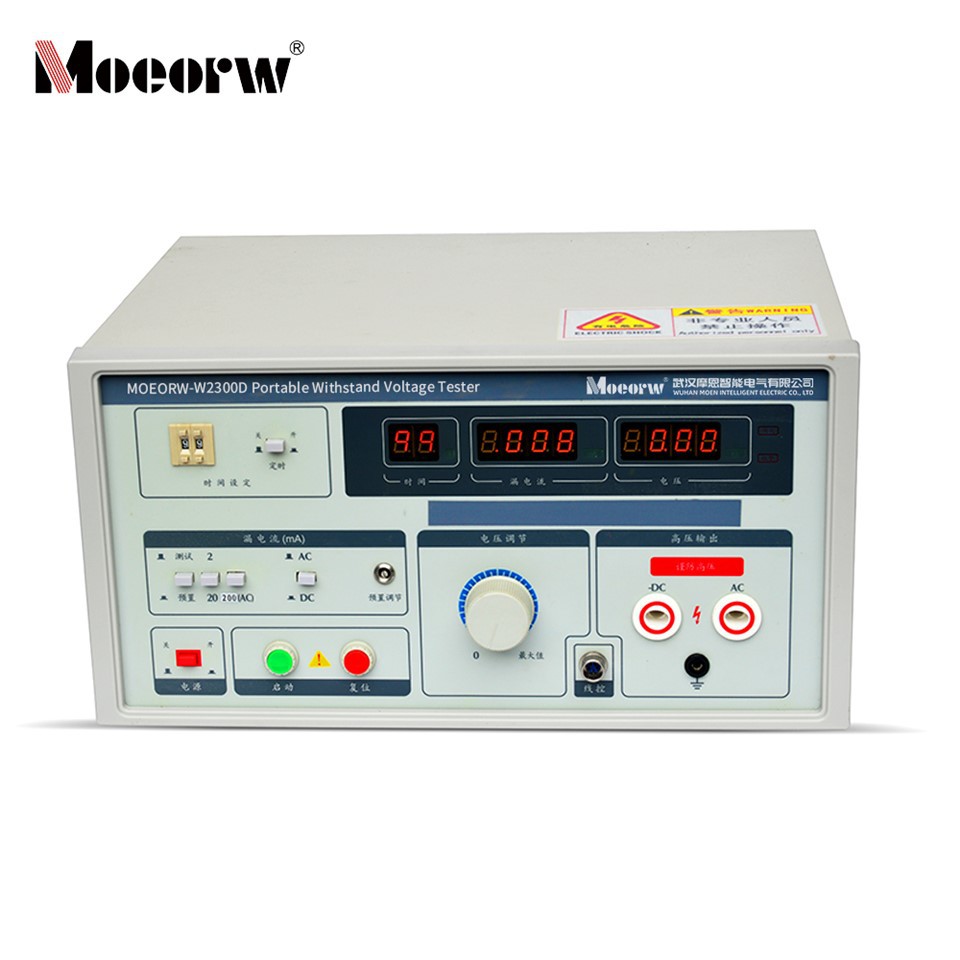

MOEORW-W2300D AC DC Hipot safety testing
Digital display for direct reading of voltage and leakage current with controllable error; alarm current and test time can be freely preset; AC/DC dual output adapts to multiple scenarios; audible and visual alarm for exceeding threshold and automatic power-off at set time.
AC DC Hipot safety testing is lightweight and portable, with simple operation steps, suitable for rapid on-site testing, and meets the national standard requirements for withstand voltage and leakage current testing of various electrical equipment and high-voltage systems.
Product Introduction
The AC/DC Hipot safety testing is suitable for testing the safety withstand voltage and leakage current of various motors, electrical appliances, instruments, and household appliances, as well as high-voltage systems. This instrument is easy to operate, safe, reliable, performs well, and is easy to maintain. It is the testing equipment required to meet the testing requirements of relevant clauses in national standards such as GB4706.1 "General Requirements for Safety of Household and Similar Electrical Appliances," GB9706.1 "General Requirements for Safety of Medical Electrical Appliances," and GB4943 and GB4793.
Product Parameter (specification)
2.1 Output voltage, basic error, leakage current, preset alarm current and tolerance
Table 1
|
model |
MOEORW-W2300D |
|||
|
Digital AC/DC |
||||
|
Output voltage |
0-5kV |
|||
|
Basic error |
± (5% r + 3d) |
|||
|
Leakage current |
mA |
AC |
0.5-20 |
0.5-200 |
|
DC |
0.5-10 |
0.5-20 |
||
|
Allowance |
± (5% r + 3d) |
|||
|
Alarm current |
mA |
AC |
0.5-20 |
0.5-200 |
|
DC |
0.5-10 |
0.5-20 |
||
|
Allowance |
± (5% r + 3d) |
|||
|
Note 1: r - reading d - number of words. Note 2: The basic error and tolerance test conditions are: ambient temperature 23℃±5℃, relative humidity not greater than 80%. |
||||
2.2 Product Features
The display method is digital.
b can display the leakage current value on the tested item during the test.
c features time preset and display, and a test time countdown.
d The alarm current value can be set arbitrarily.
The output waveform is a 50Hz sine wave or DC.
2.3 Test time, dimensions and weight
Table 2
|
model |
Leakage current mA |
Test time s |
External dimensions l×b×h, mm: |
weight kg |
|
|
MENY-H |
Digital display |
0.5-20 |
1～99 |
380×325×205 |
|
|
0.5-200 |
|||||
2.4 Usage Conditions
|
Temperature |
0℃～40℃ |
|
Relative humidity |
not exceeding 80% |
|
There are no strong electromagnetic interference sources in the vicinity, no large amounts of dust or corrosive gases, and the ventilation is good. |
|
|
Power supply AC |
220V, tolerance ±10%, 50Hz. |
Product feature and application
Digital display method, intuitively displaying test data;
It can display the leakage current value of the tested object in real time;
Supports preset test time and countdown display;
The alarm current value can be set freely;
Outputs 50Hz sine wave AC/DC voltage to suit different testing needs.
Prodection details
Safety withstand voltage and leakage current testing of various motors, electrical appliances, instruments, and household appliances
Safety withstand voltage and leakage current detection of high-voltage systems
Testing and inspection of relevant electrical products that meet the requirements of national standards such as GB4706.1, GB9706.1, and GB4943.
