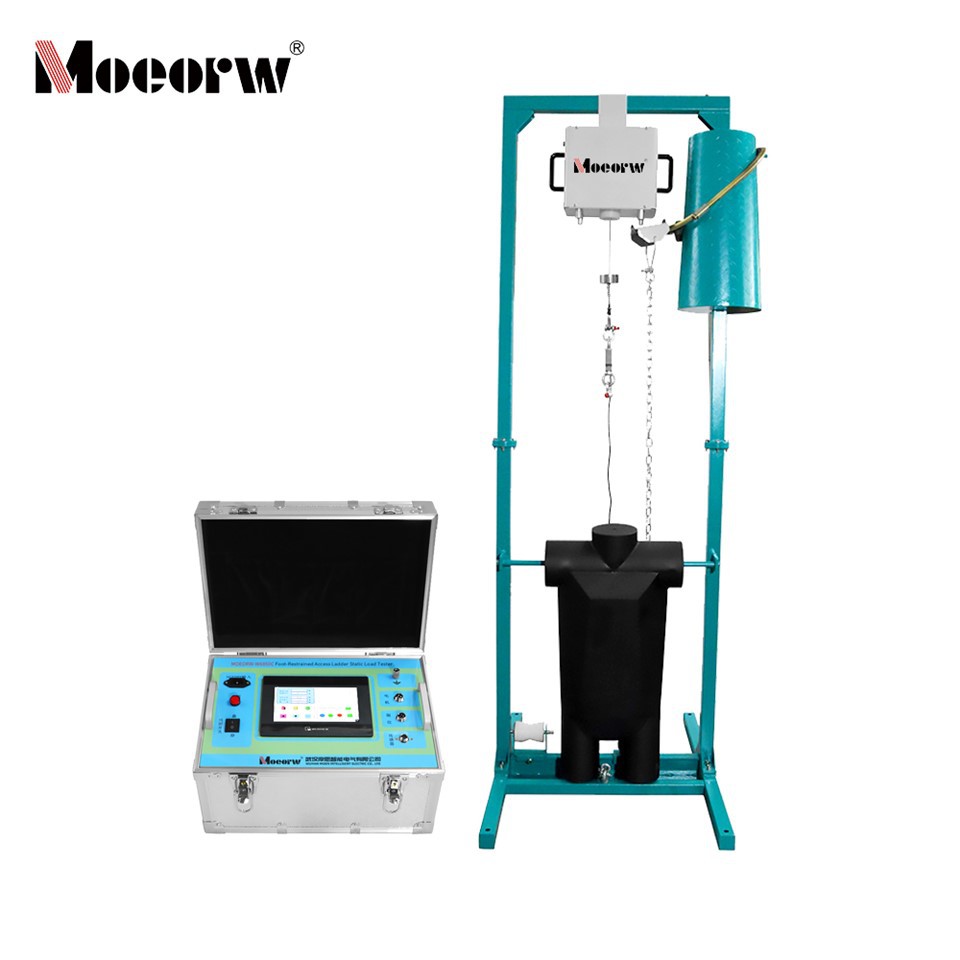

MOEORW- W6812 Portable Servo Loading Device
The MOEORW-W6812 portable servo loading device is suitable for preventive mechanical testing of safety tools in the power industry and meets national standards.
Portable and easy to install, precise and intelligent, it supports static load testing of various tools and equipment, and the force value can be automatically compensated. It is easy to operate.
It is widely used in the power supply and generation fields, and compliance testing can be carried out in both the field and the laboratory.
Product Introduction
Our company's MOEORW -6812 portable servo loading device complies with the national standard DL/T1476-2015 "Preventive Testing Procedures for Electrical Safety Tools". All indicators of this product meet the requirements of the national standard and can complete various preventive mechanical performance tests according to the "Procedures". It is widely applicable to the mechanical performance testing of safety tools in industries such as power supply and generation.
Product Parameter (specification)
|
1. Maximum tensile force |
5kN |
|
2. Maximum opening distance |
2000mm |
|
3. Minimum force setting |
0.001kN |
|
4. External dimensions |
1200mm (length) × 800mm (width) × 2500mm (height) |
|
5. Accuracy level |
Level 1 |
|
6. Equipment weight |
75kg |
|
Instrument usage conditions |
|
|
1. Power supply voltage |
AC 220V±10V 50Hz |
|
2. Operating ambient temperature |
-10°C - +40°C |
|
3. Ambient relative humidity |
RH < 80% |
Product feature and application
△ It meets the requirements of national standard DL/T1476-2015 and is suitable for preventive testing of the mechanical properties of electrical safety tools.
△ It is highly portable, weighs 75kg, and has a detachable frame for easy transport and assembly.
△ Highly accurate performance, Class 1 accuracy, minimum force setting of 0.001kN, maximum tensile force of 5kN;
△ It has good range adaptability and a maximum opening distance of 2000mm, which can meet the testing needs of various samples;
△ Intelligent operation, servo loading, supports automatic/manual modes, automatic compensation for force drop, and real-time display of test data;
△ It has comprehensive functions and can complete the testing of various electrical safety tools such as safety belts, foot buckles, and lifting platforms.
△ It comes fully equipped with a complete set of test accessories, including a frame, mannequin, sensors, etc., and is ready to use right out of the box.
Prodection details
Preventive mechanical performance testing of electrical safety tools and equipment in the power supply and generation industries is a core application scenario.
Static load tests are conducted on various safety tools and equipment, such as safety belts, safety ropes, foot straps, lifting platforms, and bamboo and wooden ladders.
It is applicable to the quality inspection and compliance verification of safety tools and equipment in various power operation sites and laboratories.
Company Qualifications
Q: Are you a factory or a trading company?
We are a professional manufacturer of testing equipment.
Q: How is the after-sales service?
A: The warranty period is 12 months. After the warranty period, we also provide lifetime service paidrepair or service.
Q: How is the after-sales service?
A: The warranty period is 12 months. After the warranty period, we also provide lifetime service paidrepair or service.
Q: What about transportation?
A: It depends on your requirements. We can ship to your airport by air, to your seaport by sea, or to your office by courier.
We also accept cooperation with your shipping agent.
Q: Are your keyboard, interface, software, and manuals in English?
A: Yes, if you are using the English version of the keyboard, interface, software, and manual and require other languages, please contact us for confirmation.
