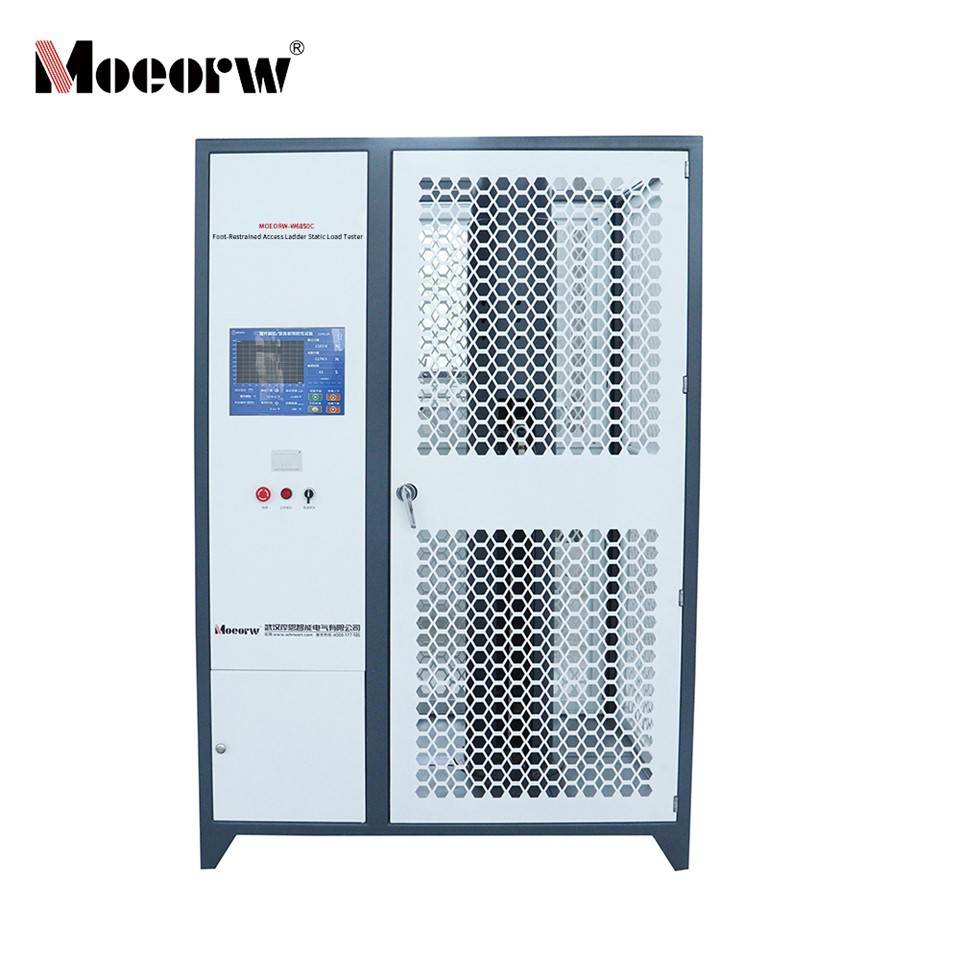

MOEORW-W6850C Foot Buckle & Step Board Static Load Tester
The MOEORW -W 6850C Pole Climbing Board Static Load Testing Machine is a dedicated static load testing device for the power industry, suitable for preventive testing of pole climbing feet and climbing boards.
Servo drive and intelligent load control enable precise detection of tool performance, compliant quality assessment, and ensure safety during high-altitude power operations.
Product Introduction
This static load testing machine for climbing feet and platforms consists of a servo testing platform and a loading device. The machine features an integrated design with an embedded control box, facilitating operation and saving laboratory space. It uses a servo motor to drive a lead screw to control the loading device for static load testing of climbing feet/platforms. The control method is time-saving and labor-saving. The overall equipment is lightweight, highly automated, low-noise, and offers stable and reliable control.
Product Parameter (specification)
2.1 Pole Climbing Pads/Climbing Boards
2.1.1 Test Items and Parameters
Test Project
Pole climbing feet, climbing board,
Other: The tension value can be customized according to actual needs.
|
Test parameters |
|
|
1. Maximum tensile force |
5kN (500kg) |
|
2. Sensor configuration |
5kN |
|
3. Test accuracy |
±0.5% |
|
4. Test rate |
(0-500) mm/min |
|
5. Test stroke |
≤1000mm |
|
6. Operating power supply |
Two-phase three-wire AC 220V 50Hz |
|
7. Main unit power consumption |
800W |
|
8. Equipment dimensions |
(Length × Width × Height) 1350mm * 950mm * 2000mm |
|
9. Equipment weight |
284kg |
|
2.1.2 System Equipment Parameters |
|
|
Operating system |
Linux |
|
Human-machine interface |
15-inch LCD touchscreen |
|
Safety features |
User interface and warning lights provide alerts; automatic emergency stop function in abnormal situations. |
|
Printing function |
58mm thermal printer |
|
External interfaces |
Supports USB, Ethernet, RS232, RS485 |
|
Power supply parameters |
AC 220V, 50Hz, rated power 800W |
|
External dimensions |
1350mm*950mm*2000mm |
Product feature and application
▼ It meets multiple testing standards in the power industry, and the test results are authoritative.
▼ The integrated embedded design saves space and is easy to operate. The servo drive is low-noise and stable, and has a high degree of automation.
▼ The test accuracy is ±0.5%, the parameters are adjustable and support custom tensile force, and it can meet various static load test requirements.
▼ Multiple interfaces allow for external system connection; Linux system + 15-inch touchscreen; easy to operate and can connect to upstream data centers.
▼ Automatic emergency stop in case of abnormality + warning reminder, comprehensive safety protection;
▼ It has a built-in printing function, and historical data can be viewed, printed, and exported, making data management convenient;
▼ Supports both automatic and manual operation modes to adapt to special testing scenarios;
▼ The specialized accessories are highly compatible, and the overall equipment is lightweight and has stable performance.
Prodection details
Power Industry Laboratory
Power-related companies have dedicated laboratories to conduct routine static load preventative tests on pole climbing clips and climbing boards, complete annual inspection tasks, and determine whether the tools and equipment meet the standards.
Electrical safety equipment testing organization
Professional third-party testing organizations conduct compliance tests on pole climbing foot straps and climbing boards, and issue authoritative test data and result reports.
Power construction and maintenance units
In the tool management process of power construction and operation and maintenance companies, quality inspection and performance verification are carried out on their own pole climbing feet and climbing boards to ensure the safe and usable use of the tools.
