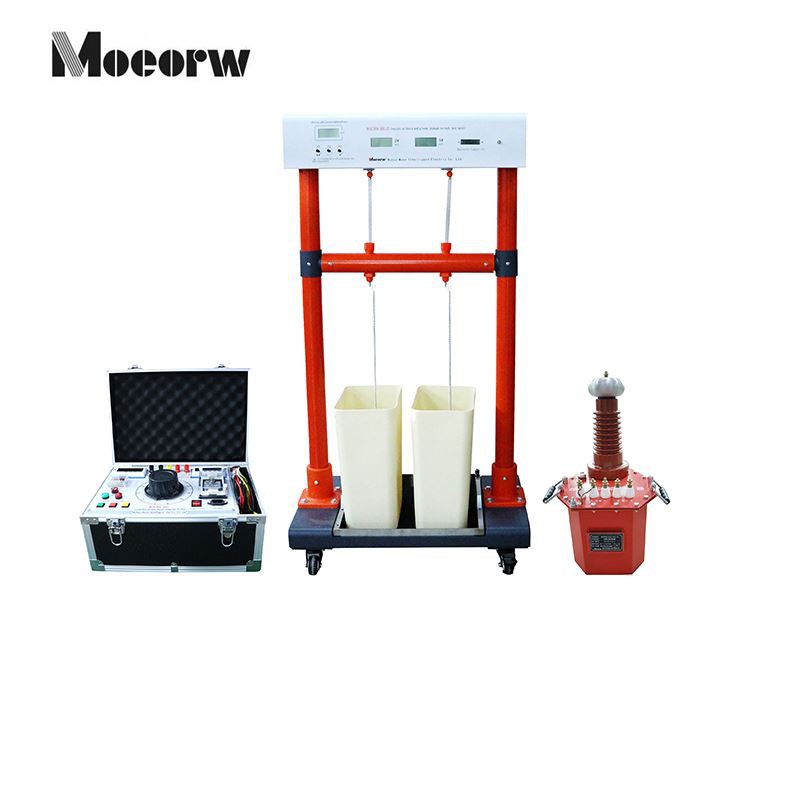

Insulation Boots Withstand Voltage Test Device

Product Introduction

This insulation boots and gloves withstand voltage tester is developed in accordance with standards including DL/T 976‑2017, DL/T 1476‑2023, GB/T 17622‑2008 and GB 21148‑2020. It is designed for power frequency withstand voltage and insulation performance intelligent testing of electric safety protective tools. The equipment effectively prevents electric shock risks in high-voltage operations, widely applied in preventive testing and compliance inspection for power plants, industrial mines, construction and other high-

Product Parameter (specification)

Pressure-resistant bracket working power supply	DC 12V lithium battery power supply
Rated voltage	50kV
Maximum range	30.0mA
Leakage current measurement error	1% ±3 characters
Leakage current resolution	0.01mA
Ambient temperature	-10℃-40℃
Temperature	≤90%RH, no condensation, no flickering of the instrument
Test stand dimensions and weight	850 × 800 × 11 0 0 (mm) 15kg
Transformer size and weight (optional)	270×270×510(mm) 29kg
Control box size and weight (optional)	450×320×250(mm) 16kg

Product feature and application

Dual-station automatic tripping: Support testing 2 pieces at one time. Each circuit monitors leakage current independently; single circuit breakdown or over-limit will trip automatically without affecting other channels.
Dry type testing without water injection: Adopt steel beads inside boots instead of traditional water filling, avoid damp inner lining trouble and improve testing efficiency and tool service life.
Lithium battery independent power supply: Leakage current sampling and tripping mechanism powered by built-in lithium battery with real-time power percentage display, realizing complete high-low voltage isolation.
High-bright LED display: Dual-channel leakage current displayed clearly; tripping current value can be set precisely via buttons.
Special customized fixture: Equipped with stainless steel grounding tray for insulation boots and dedicated container for insulation gloves, easy installation and stable test performance.

Prodection details

On-site maintenance and daily preventive testing of power distribution stations (small and medium-sized)

Daily preventive testing of mining teams and small-scale mining operation sites

Safety inspection of small construction sites involving high-voltage operations

Small-batch daily testing of insulation protective equipment in small and medium-sized enterprises

On-site testing scenarios without complex water supply and power supply conditions

Company Qualifications

FAQ

1)Can this device be used for on-site testing without a fixed power supply

Yes. The device's pressure-resistant bracket is powered by a DC 12V lithium battery, which supports on-site testing without a fixed power supply, perfectly adapting to the mobile testing needs of small and medium-sized scenarios such as mining teams and construction sites.

2)How to deal with the situation that the lithium battery power is insufficient during on-site testing?

It is recommended to carry a backup lithium battery for replacement during on-site testing. At the same time, the device has a real-time power percentage display, which can remind you to charge or replace the battery in advance to avoid affecting the testing progress.

3)Is it necessary to have professional operation experience to use this device?

No. The device is equipped with a high-bright LED display and simple button operation. The tripping current can be set with one key, and no professional and complicated training is required, which is suitable for on-site operators to use quickly.
