SF6 Gas Quantitative Leak Detector

Product Introduction

The MEJL-WK1 Portable SF6 Gas Leak Detector is a high-precision, high-sensitivity leak detection instrument developed by our company. It utilizes non-dispersive infrared (NDIR) technology to locate and quantify leaks. Compared to previous generations, it offers faster testing speeds, enhanced portability, replaceable batteries (enabling unlimited runtime), greater reliability, and superior cost-effectiveness.

Utilizing the Smart Quick Intelligent Power Testing System (Software Copyright Registration No. 1010215, Trademark Registration No. 14684781), our company incorporates internationally advanced detection technology in its R&D and production. It is primarily applied for leak detection in GIS and SF6-filled electrical equipment within the power industry. It enables both qualitative and quantitative testing of SF6 gas electrical equipment. The annual leakage rate of SF6 gas electrical equipment is measured using the wrapping method. Additionally, this device is widely used for SF6 gas leak detection across multiple fields, including power supply bureaus, substations, high-voltage switchgear companies, laboratory safety fume hoods, and scientific experiments.

Product Parameter (specification)

1. Measurement Principle	Non-dispersive infrared, dual-wavelength principle
2. Detection Range	0-1500 ppmv
3. Detection Resolution	1 ppmv
4. Detection Accuracy	±3% FS
5. Repeatability Error	≤±1%
6. Detection Response Time	≤1 second
7. Detection Recovery Time	≤3 seconds
8. Long-Term Stability (Span)	≤±20 ppm over 1000-hour period
9. Long-Term Stability (Zero)	≤±20 ppm over 1000-hour period
10. Sampling Method	Pump-drawn, flow rate > 1.5 L/min
11. Zero Drift	≤±1% (F.S./year)
12. Linearity error	≤±1%
13. Display method	Touchscreen color display, Incell display technology
14. Battery technology	Removable and replaceable, single battery provides over 4 hours of continuous operation; wireless operation achievable via battery replacement.
15. Peak current	<500mA
16. Average power	<2W
17. Operating air pressure	800–1150 hPa
18. Operating Humidity	0–95% RH
19. Operating Temperature	-20°C to 50°C
20. Storage Temperature	-20°C to 60°C
21. Operating Humidity	0–95% (non-condensing)
22. Dimensions	245mm × 125mm × 140mm
23. Weight	3kg

Product feature and application

1. Capable of performing qualitative and quantitative detection of SF6 leaks in electrical equipment.

2. Features an environmental SF6 gas concentration zero-point function (tare function).

3. Dual displays with dual ranges ensure overall sensitivity and accuracy.

4. Accurately locates leak points in SF6-filled electrical equipment.

5. Simultaneously displays multiple parameters on a single screen: SF6 concentration, temperature/humidity, battery status, time, and diaphragm pump status.

6. Features an ingeniously designed interface with a clean, practical human-machine interaction for an optimal visual experience.

7. Utilizes non-dispersive infrared (NDIR) technology with world-leading sensors imported directly from Germany.

8. Rapid testing speed: data stabilizes within 2 seconds with excellent repeatability.

9. Single-gas SF6 response with no reaction to other gases, eliminating false alarms.

10. Non-contact measurement ensures no sensor poisoning occurs at any concentration level.

11. Sensor thermostatic chamber prevents temperature drift under all ambient conditions.

12. Military-grade OLED display guarantees clear visibility even under direct sunlight.

13. Embodies European minimalist, low-power design principles with optimized hardware/software, featuring built-in lithium battery for extended standby.

14. Operators can wear the device while performing elevated work during field inspections.

15. Addresses previous model's issue of unreadable color screens in sunlight, enhancing field usability.

16. Segmented audible and visual alarms enable operators to detect leaks without visual data monitoring.

17. Adjustable sampling tube length accommodates various field conditions.

18. Diaphragm pump sampling ensures airtight integrity of the test gas pathway.

19. Equipped with a non-slip handle, flexible probe, and anti-drop wrist strap for user convenience and safety.

20. Includes a mobile WeChat mini-program for power calculation, enabling automatic annual leakage rate computation by inputting relevant data-eliminating cumbersome manual operations.

21. Data is stored as concentration readings paired with detection times, enabling staff to accurately retrieve required data.

22. The device housing utilizes aerospace-grade, fully shielded, ultra-lightweight ABS plastic construction, supporting SF6 concentration monitoring and alarm functions in monitoring environments or confined spaces.

Prodection details

● High-voltage switchgear

● Helicopter rotor blades

● Gas delivery systems

● Fire extinguisher inspection

● Building ventilation rate studies

● Hazardous material detection

● Storage containers

Company Qualifications

FAQ

1)Why does the MEJL-WK1 SF6 Gas Quantitative Leak Detector not require regular sensor replacement?

Answer: This instrument employs Non-Dispersive Infrared (NDIR) technology paired with top-tier sensors imported directly from Germany. Its non-contact measurement capability prevents sensor poisoning. Additionally, the sensor is housed in a temperature-controlled chamber to prevent thermal drift, ensuring stable performance without wear-prone components. Consequently, regular sensor replacement is unnecessary, eliminating secondary investment costs.

2)Is the MEJL-WK1 SF6 Gas Quantitative Leak Detector convenient for use during elevated field operations?

Answer: Extremely convenient. Compact in size (245mm × 125mm × 140mm) and weighing only 1.5 kg, it can be handheld or worn on the body. Equipped with Russian military-grade Picatinny rail mounts, an air-cushioned massage anti-slip shoulder strap, non-slip handles, and a fall-prevention wrist strap, it allows operators to carry it effortlessly during elevated work while ensuring safe and comfortable operation.

3)How does the MEJL-WK1 SF6 Gas Quantitative Leak Detector prevent false alarms during testing?

Answer: Firstly, the instrument exhibits single-gas responsiveness to SF6, remaining unresponsive to any other gases. This design principle fundamentally eliminates false alarms caused by interference from other gases. Secondly, the instrument features an ambient SF6 gas zero-offset function (tare function). When the environment contains a baseline concentration of SF6, this function allows setting the ambient concentration to zero, preventing environmental gases from affecting test results and further reducing false alarms.

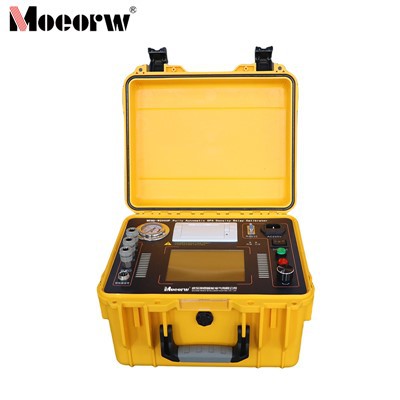

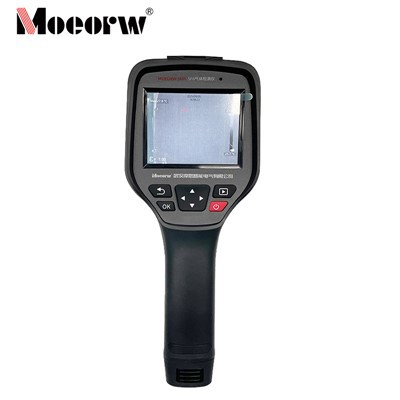

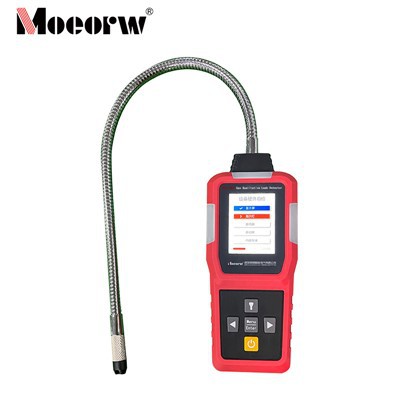

Hot Tags: sf6 gas quantitative leak detector, China sf6 gas quantitative leak detector manufacturers, factory, Fully Automatic SF6 Density Relay Calibrator, Intelligent SF6 Density Relay Calibrator, SF6 Das Qualitative Leak Detector, SF6 Gas Comprehensive Analyzer, SF6 Gas Infrared Imaging Leak Detector, SF6 Gas Quantitative Leak Detector
