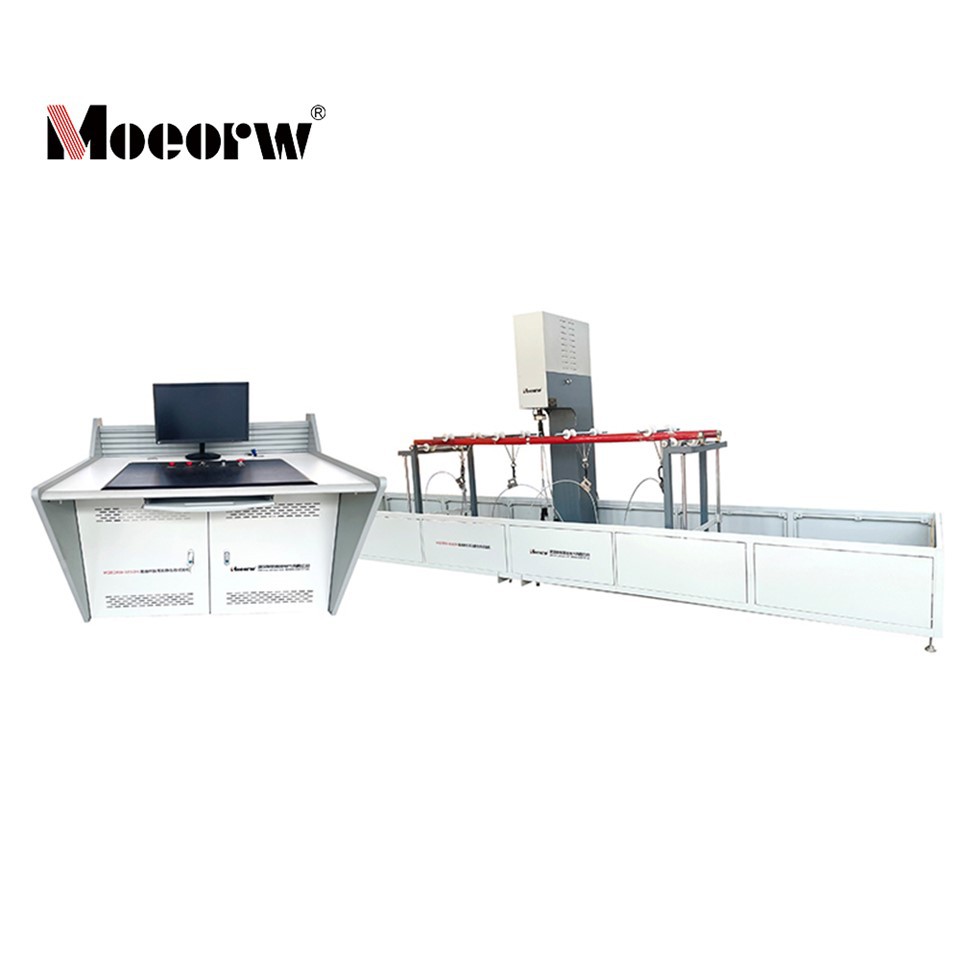

Insulation Pole Bending Tester

The MOEORW-W6860H Insulating Rod Bending Static and Dynamic Load Testing Machine is a computer-controlled, electric servo-loaded specialized testing equipment. It is mainly used for static and dynamic bending mechanical performance testing of products such as insulating rods, bottle holders, insulating tubes, tubular composite materials, and ladders. It is designed in strict accordance with national standards and power industry standards and can accurately complete bending static and dynamic load tests.

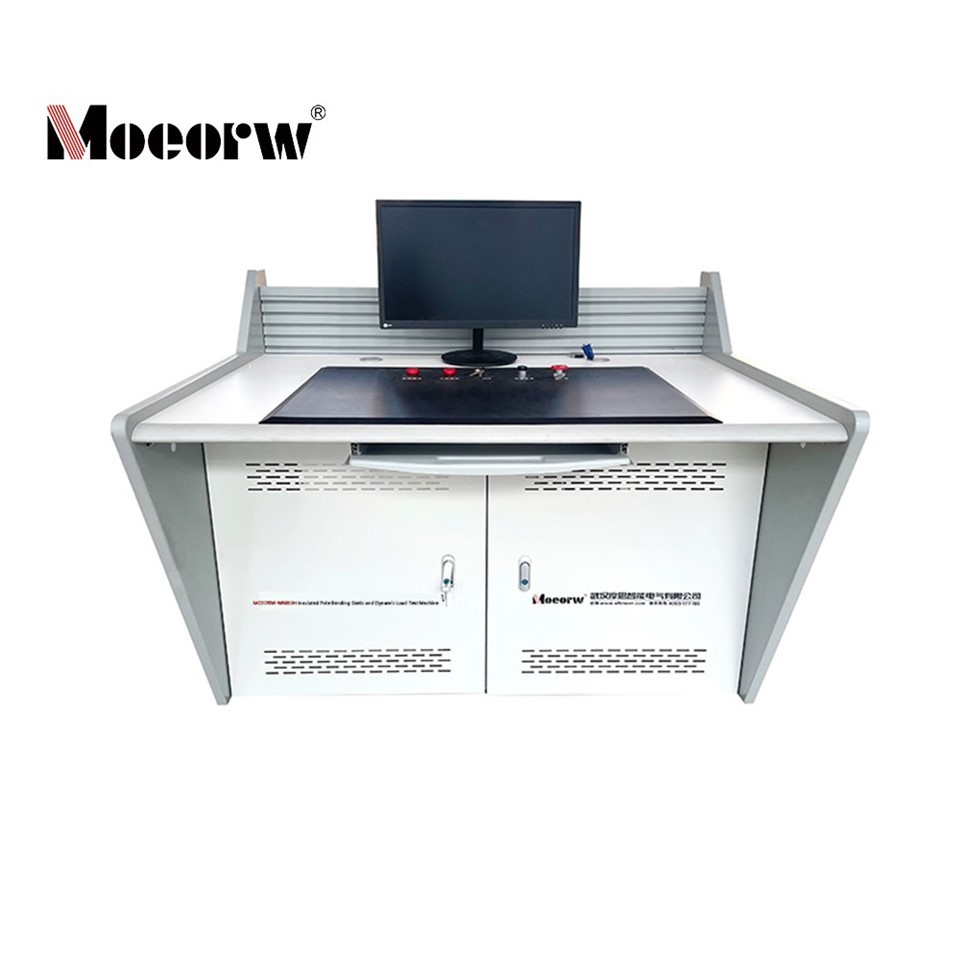

1. Computer controlled, the software can display test curves in real time. The test plan is programmable and has multi-stage, multi-functional, and multi-mode control.

2. It can automatically measure the bending deflection of materials and products.

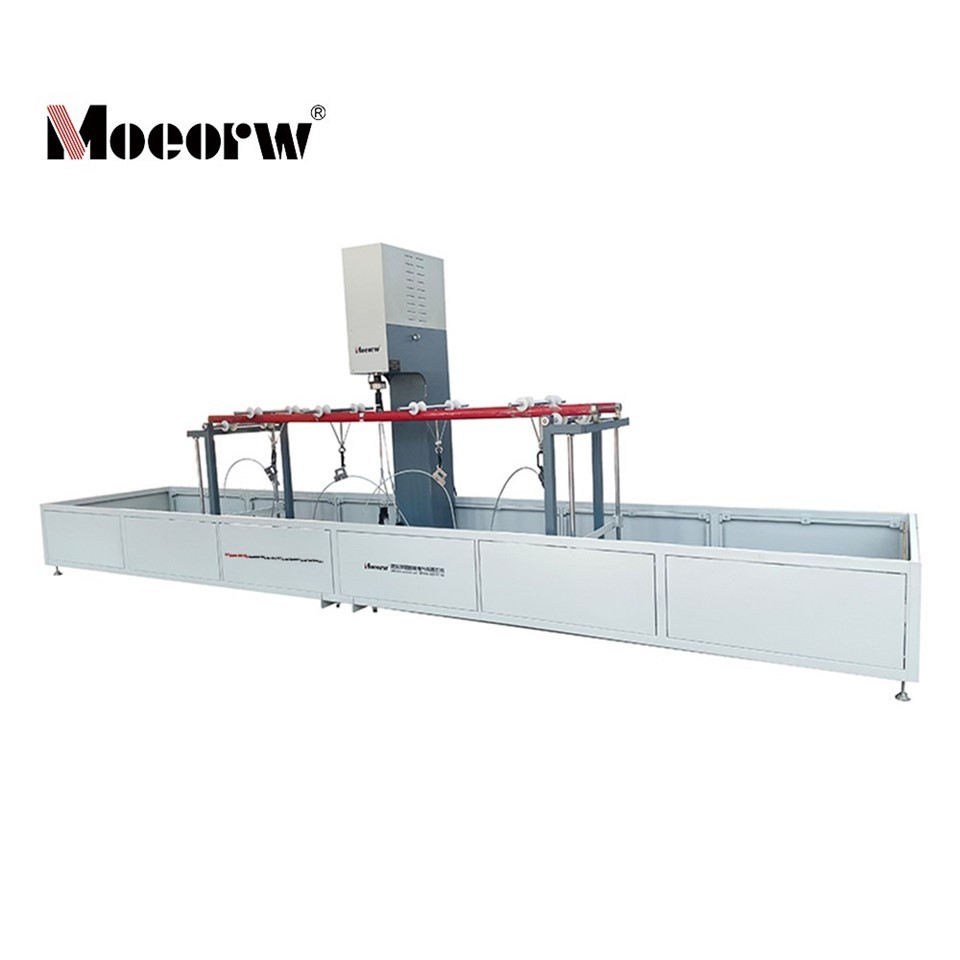

3. Adjustable test rack, allowing for test length adjustments from 500 to 5500 mm to suit different products. The ladder can be placed horizontally or vertically for testing. Equipped with 1 to 4-point tension balancing devices, it can perform tests on bottle support racks exceeding 110kV.

4. Comprehensive overheat, overcurrent, and leakage protection functions, as well as audible and visual warning functions. It also features an emergency stop procedure to ensure the safety of testing personnel.

5. Network interface: It can connect to the internal cloud platform and be integrated into the test management system to achieve data communication.

This testing machine is suitable for dynamic and static bending tests on various materials such as insulating rods, bottle holders, insulating tube materials, tubular composite materials, and ladders.
