High Voltage Switching Time Characteristic Tester

Product Introduction

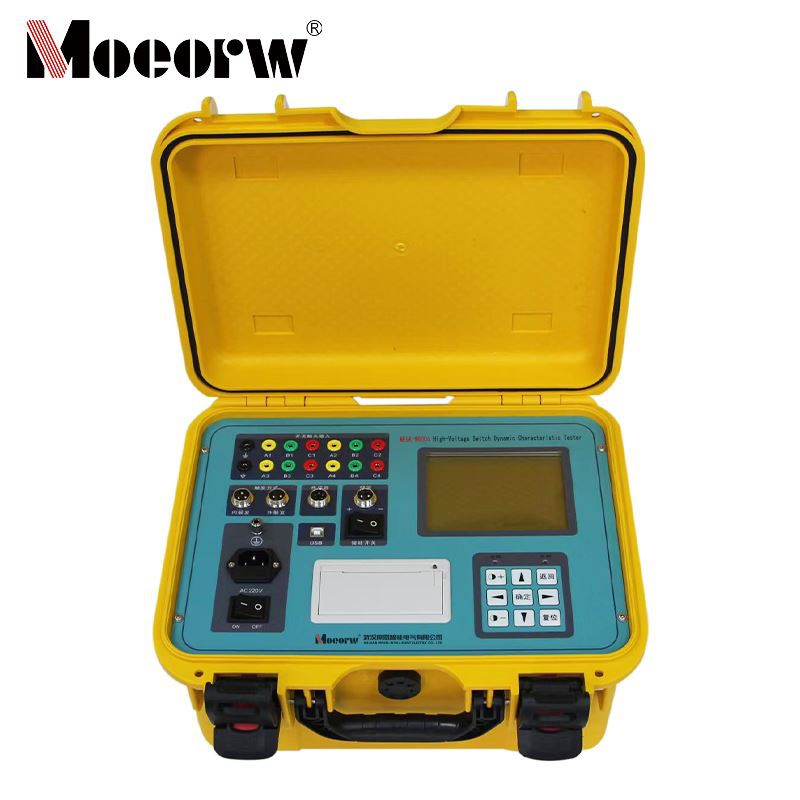

MEGK-W8006 High-Voltage Switch Dynamic Characteristic Tester is suitable for various mechanical characteristic tests of high-voltage switches. With strong anti-interference capability, it can accurately measure parameters such as time and speed in live environments. Equipped with two easy-to-install sensors, it features an intuitive English menu for simple operation. Supporting data storage and printing, it provides clear guidance for on-site wiring and fault troubleshooting, making it a reliable tool for high-voltage switch testing.

Product Parameter (specification)

1.1 Usage Environment

Input power: 220V±10% 50Hz±10% Atmospheric pressure: 86～106kPa

Temperature -10～40℃, Humidity ≤80%RH

1.2 Safety Performance

Insulation resistance > 2MΩ

The dielectric strength of the power supply is 1.5 kV withstand voltage to the chassis at power frequency for 1 minute without flashover or arcing.

1.3 Basic Parameters

uTime : Range 4000.0ms, Resolution 0.1ms

Error ① Within 100ms: 0.1ms ± 1 character

② 0.1% ± 1 word for 100ms or more

③Simultaneous

Speed : Range 20.00 m/s, Resolution 0.01 m/s

Error ① Within 0-2m/s ±0.1m/s ±1 character

② 100ms or more ±0.2m/s ±1 character

Uitinerary :

	Range	Resolution	Error
Vacuum circuit breaker	50.0mm	0.1mm	1% ± 1 character
SF6 circuit breaker	300.0mm	1mm
Low oil circuit breaker	1000.0mm	1mm

▲Current: Range 20.00A, Resolution 0.01A

▲Output power: DC20～256V digitally adjustable/15A (instantaneous operation)

▲External dimensions: 360mm (L) × 280mm (W) × 300mm (H)

▲Weight : 9kg

Product feature and application

Suitable for mechanical characteristic testing of all models of SF6 switches, GIS assemblies, vacuum switches, and oil switches manufactured domestically and internationally.

Exceptional interference resistance enables effortless testing and precise measurement even when the 500kV substation bypass bus is energized.

Linear linear sensors and rotary sensors feature extremely convenient and straightforward installation.

A single switch operation captures all mechanical characteristic test data and corresponding waveform spectra.

The main unit stores field test data with an internal real-time clock for archiving test dates and times.

Large-screen LCD with wide temperature range, direct-viewing, backlighting, and full Chinese display for all data and spectra. Features electronically adjustable contrast and power-off memory.

English menu interface ensures user-friendly operation. Built-in printer enables instant printing of all data and spectra.

Prodection details

Suitable for mechanical characteristic testing of various high-voltage switches including SF6 switches, GIS assemblies, vacuum switches, and oil switches. Operable in live environments such as substations rated up to 500kV, meeting testing requirements for switch parameters including operating time, speed, and travel distance.

Company Qualifications

FAQ

1)What types of sensors are available for the MEGK-W8006 High-Voltage Switch Dynamic Characteristic Tester? What are their respective application scenarios?

Answer: This instrument is equipped with two sensor types: rotary sensors and linear sensors. Their applicable scenarios are as follows:
Rotary Sensor: Suitable for scenarios where the linear transmission mechanism is enclosed within the switch body and no installation space exists for other sensors, or for factory testing by switch manufacturers on the opening/closing indicator or rotary shaft. During installation, ensure its axis is as concentric as possible with the switch's rotary shaft.
Linear Sensor: Suitable for scenarios requiring precise measurement of switch travel distance. Available in three specifications: 50mm (standard, for vacuum switches), 200mm, and 300mm (non-standard, for SF6 switches, etc.). Installation requires ensuring the sensor's motion axis moves linearly, with the pull rod moving parallel and synchronously with the switch's moving contact.

2)What are the core safety requirements for field wiring when using the MEGK-W8006 High-Voltage Switch Dynamic Characteristics Tester?

Answer: Core safety requirements are as follows:
Upon arrival at the site, the protective grounding terminal must be reliably connected to the site ground before proceeding with any other wiring or operations. After testing concludes, first turn off the instrument power, then disconnect all other circuits, and finally remove the grounding wire.
If the internal power supply of the instrument is used for closing/opening control (internal trigger mode), the control power supply within the switch control box under test must be disconnected (without disconnecting the energy storage power supply). The internal power supply of the instrument must not be used as the power source for the on-site energy storage motor.
During wiring, avoid contact with exposed circuits and live metal parts. It is strictly prohibited to arbitrarily plug or unplug test leads while they are connected to live terminals.

3)What core functional modules does the main menu of the MEGK-W8006 High-Voltage Switch Dynamic Characteristics Tester include? What are their primary functions?

Answer: The main menu comprises five core modules: [Settings], [Test], [View], [File], and [Help], with the following functions:
[Settings]: Configure pre-test parameters including speed definition, sensor installation phase, test duration, trigger mode, test voltage, etc., to ensure instrument operation aligns with requirements.
[Test]: Executes various test operations, including single-close/single-open tests, close-open/open-close/open-close-open tests, low-voltage operation tests, and manual multiple-close-open tests.
[View]: Post-test analysis and result review, displaying curve graphs, comprehensive data, bounce processes, and waveforms. Supports speed analysis and result printing.
[File]: Stores test data and retrieves archived records. Data is categorized by date and can be permanently saved.
[Help]: Provides instrument intellectual property details, software version, factory serial number, and company after-sales contact information for user inquiries.
