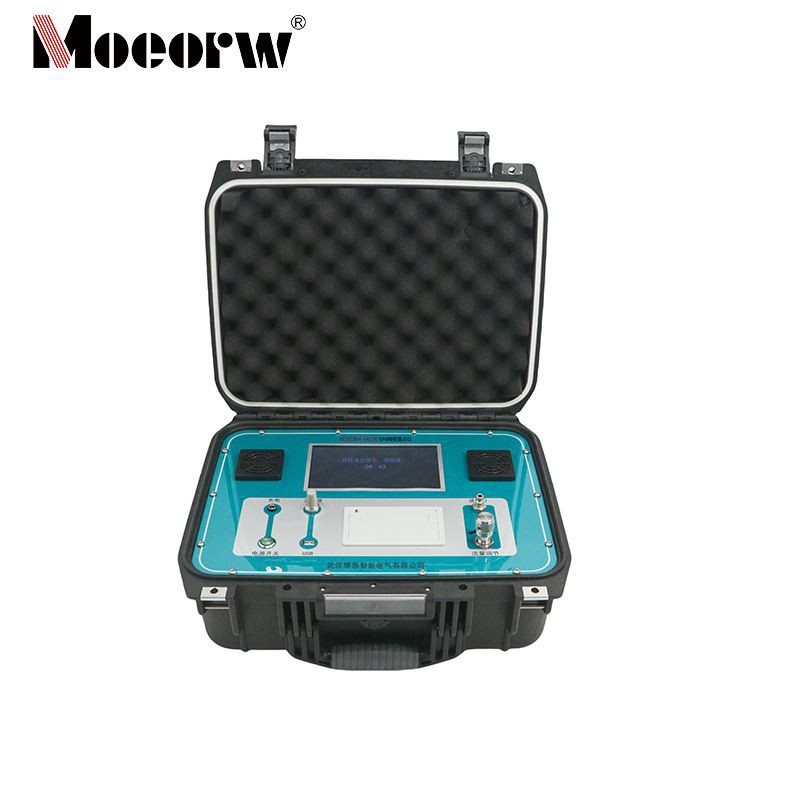

SF6 Gas Dew Point Tester

Product Introduction

MOEORW-W6423D SF6 Precision Dew Point Meter incorporates an imported high-precision dew point sensor, featuring high accuracy and fast measurement speed. The instrument boasts a user-friendly display interface for intuitive reading of measurement parameters, showing not only dew point values but also micro-water, PP20, temperature, and more. Field operation is straightforward-simply connect the gas tube to the provided quick-connect fitting to begin measurement. Compact and lightweight, the moisture tester is portable and ideal for outdoor applications. Its high-capacity battery supports extended field operation.

This moisture tester is particularly suitable for measuring trace moisture in compressed air, SF6 gas in power systems, H2 gas in power plants, and various other gases.

Product Parameter (specification)

Measurement Parameters
Dew Point Range	-80…+20°C Td
Humidity Range	0…100%
Temperature Range	-40…+80°C
√ Performance
Dew Point Accuracy (Calibrated)	±0.5°C Td
Resolution	0.1°C Td
Temperature Accuracy	±0.5°C
Humidity Accuracy	±4.5%
√ Measurement Response Time (+20℃)	-60→20℃ Td 5S [30s] 20→-60℃ Td 10S [300S]
√ Operating Environment
Operating Temperature	-20…+50℃
Relative Humidity	5…90%RH
Flow Rate	0.5…0.6 L/min
Measured Gas	Air/N₂/SF₆
√ Power Supply
Power Source	AC 220V/Lithium Battery
√ Display
Display Type	800×480 High-Definition Touchscreen
Display Parameters	Dew Point Temperature (°C Td/f) Water Content PPMV Water Content PP20
Flow Rate	L/min
Temperature (°C)
√ Gas Path Connection
Connection Method	Self-locking quick-connect fittings
√ General Parameters
Power Consumption	< 5W
Battery Life	>8 hours
Fitting Material	Copper
Carrying Method	Handle
Dimensions	414333177mm

Product feature and application

• Instrument self-calibration function

• True color touchscreen display with intuitive operation

• Dew point probe self-protection feature

• Simultaneous display of multiple parameters

• Real-time measurement curve tracking and dynamic visualization

• Equipped with high-precision electronic flow meter

• Lithium battery power supply, compatible with AC/DC operation

• USB data download capability

• Thermal silent printer

• Large-capacity data storage

Prodection details

MOEORW-W6423D SF6 Precision Dew Point Meter is primarily designed for scenarios requiring precise detection of trace moisture in gases. Centered on the power industry, its applications extend to industrial gases, outdoor operations, and maintenance:

Power Industry: Moisture detection during factory release/overhaul, handover, and operation phases for SF6 circuit breakers, GIS equipment, etc.; H2 gas moisture monitoring for hydrogen-cooled generators in power plants; Compressed air system dew point monitoring to ensure equipment insulation and operational safety.

Industrial Gases: Trace moisture control during production, quality inspection, and transportation of N₂, specialty gases, etc., meeting industry drying standards.

Outdoor/Field Operations: Equipment inspection and fault diagnosis without external power supply, supporting on-site data storage, printing, and export.

Other Applications: Moisture detection in process gases and protective gases for chemical and electronics industries to prevent moisture-related production or quality issues.

Company Qualifications

FAQ

1)What power supply options does the MOEORW-W6423D SF6 Precision Dew Point Meter offer, and how is battery life ensured during outdoor operations?

Answer: This instrument supports two power supply methods: AC 220V power (via power adapter connection) and built-in lithium battery power. For outdoor operations, the lithium battery can be used directly, providing over 8 hours of operation to meet extended fieldwork requirements. To further extend usage time, the power adapter can be carried to connect to a nearby 220V AC power source. Additionally, the power adapter charges the lithium battery while connected to AC power.

2)What material requirements apply to the connecting tubing when using the MOEORW-W6423D SF6 Precision Dew Point Meter?

Answer: For measurements, use polished stainless steel tubing or polytetrafluoroethylene (PTFE) tubing. Polished stainless steel tubing is strongly recommended for low dew point measurement scenarios. The use of water-absorbing materials such as PVC or nylon tubing is strictly prohibited to prevent measurement errors caused by water absorption or condensation. Additionally, ensure the tubing temperature does not fall below the dew point temperature. Minimize tubing length and maximize the inner diameter to maintain measurement accuracy.

3)How can historical measurement data from the MOEORW-W6423D SF6 Precision Dew Point Meter be exported or saved?

Answer: Historical measurement data can be saved or exported in three ways: First, use the built-in thermal silent printer to print current data directly from the "Dew Point Measurement" or "Historical Data" interface; Second, insert a USB drive into the "Historical Data" interface. The instrument will automatically generate a "dewpoint.csv" file containing historical data and save it to the USB drive. The USB drive can be removed for backup after data saving is complete. Third, the instrument features large-capacity data storage, allowing historical data to be retained directly within the device. Historical data can be retrieved later by accessing the "Historical Data" interface.
