MOEORW-WPD526S Handheld Ultrasonic PD Detector
Product Introduction

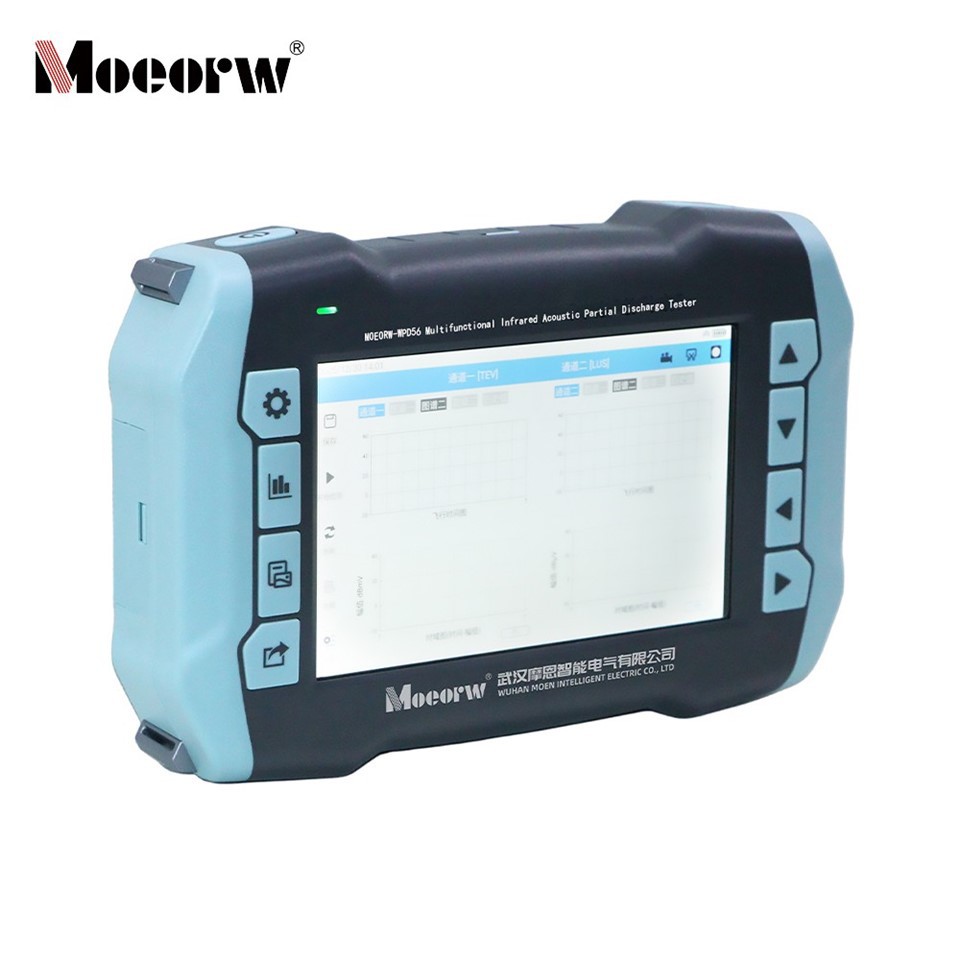

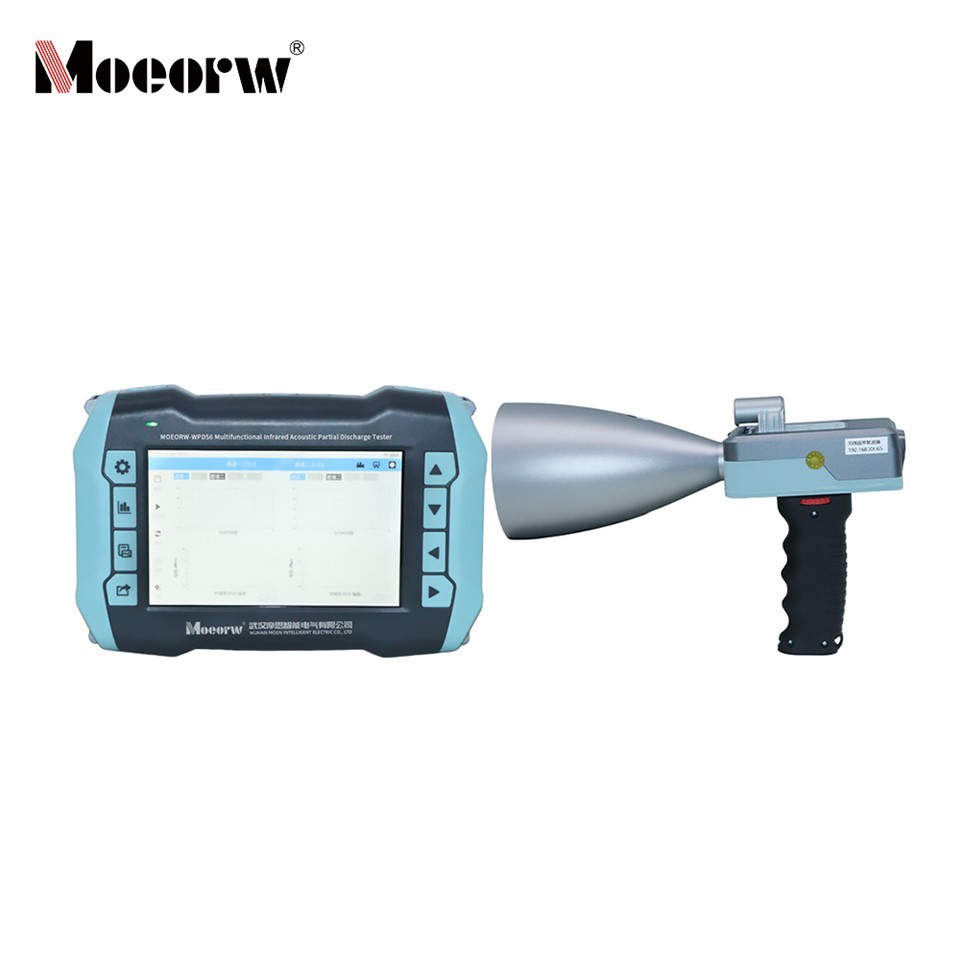

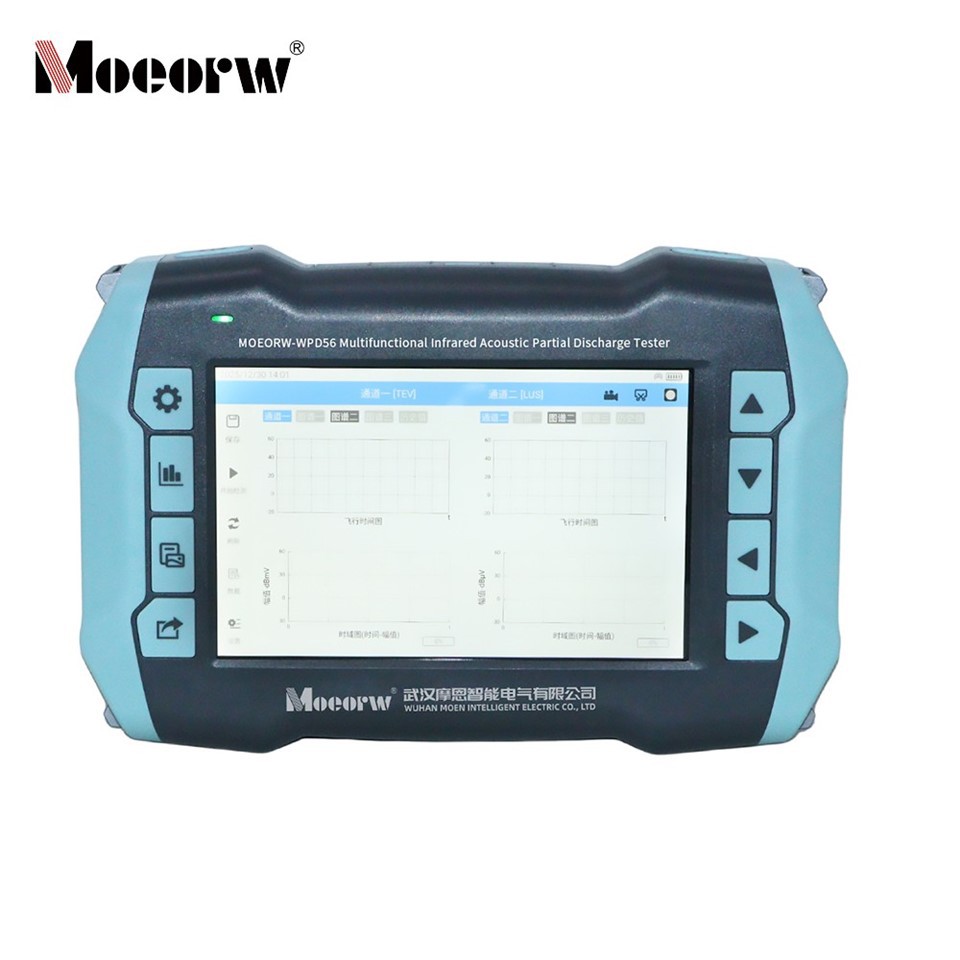

MOEORW-WPD526S is a portable, multi-functional infrared acoustic partial discharge detector for on-site live detection of power equipment. It uses beamforming acoustic localization and 64–128 microphone array to capture ultrasonic signals, and matches HD camera & infrared thermal imager to realize visualized positioning and temperature measurement. Non-invasive detection helps users quickly find insulation defects and ensure equipment safety.
Product Parameter (specification)
|
Earth radio wave parameters |
Contact Ultrasonic Parameters |
|||
|
Measurement range |
0～80 dBmV |
Measurement range |
- 10 dBμV to 80 dBμV |
|
|
resolution |
0.1dB |
resolution |
0.1dB |
|
|
accuracy |
±1dB |
accuracy |
±1dB |
|
|
Maximum pulse per cycle |
1400 |
Frequency range |
20kHz～500kHz |
|
|
Measurement frequency band |
1 ~ 100MHz |
Unit conversion |
dBμV / μV / mV |
|
|
Non-contact ultrasonic parameters |
UHF parameters |
|||
|
Measurement range |
- 10 dBμV～80 dBμV |
Detection frequency band |
300MHz～3000MHz |
|
|
resolution |
0.1dB |
Measurement range |
-80～-10dBm |
|
|
accuracy |
±1dB |
Unit conversion |
dB / dBm / mV |
|
|
Sensor center frequency |
40 kHz ± 2 kHz |
|||
|
Unit conversion |
dBμV / μV / mV |
|||
|
High-frequency transformer parameters |
Focusing parameters |
|||
|
Sensor transmission impedance |
9.9mV/mA |
Measurement range |
- 10 dBμV～80 dBμV |
|
|
Detection frequency |
0.5~50MHz (customizable) |
Measuring distance |
0m～100m |
|
|
Sensitivity |
1mV |
Center frequency |
40 kHz ± 2 kHz |
|
|
Unit conversion |
dBmV / mV / dBm |
Unit conversion |
dBμV / μV / mV |
|
|
Acoustic parameters |
High-end infrared thermal imager |
|||
|
Frequency range |
0 to 48kHz |
resolution |
384×288 |
|
|
Measuring distance |
0.3 ~ 50m |
Temperature measurement range |
-20℃ to 400℃ |
|
|
Number of microphones |
64 to 128 |
Temperature measurement accuracy |
± 2 ℃ |
|
|
Camera field of view |
58°* 27° |
|||
|
Hardware |
||||
|
shell |
ABS |
|||
|
Main unit size |
248*165*55 (Length*Width*Thickness, mm) |
|||
|
show |
7-inch capacitive touchscreen, 1280*800 resolution |
|||
|
Sampling accuracy |
12bit |
|||
|
Synchronization method |
Internal synchronization, external synchronization |
|||
|
connector |
USB External sensor input interface (also serves as charger input ) |
Wi-Fi, Ethernet port, Bluetooth |
||
|
SD card |
Standard configuration: 128GB to 256GB |
|||
|
Built-in battery |
12.6V/5000mAh lithium battery |
|||
|
Working hours |
Approximately 7 hours |
|||
|
Image format |
JPG |
|||
|
Video format |
MP4 |
|||
|
Video length |
Depends on memory capacity |
|||
|
charger |
100～240VAC, 50/60Hz |
|||
|
Operating temperature |
-30 ℃ ～50℃ |
|||
|
humidity |
≤60% |
|||
|
Volume and weight |
1.3kg |
|||
Product feature and application
- Adopts microphone array & beamforming technology to generate acoustic cloud map for intuitive discharge positioning
- Supports ultrasonic, TEV, UHF, HFCT and ground wave integrated detection with strong compatibility
- Built-in infrared thermal imaging module for non-contact temperature measurement from -20℃ to 400℃
- 7-inch high-definition touch screen, large-capacity storage and long battery life for field use
- Realize non-invasive live detection without power outage, suitable for daily patrol and fault location
Prodection details
Widely used in partial discharge detection and insulation status evaluation for:
- High-voltage switchgear, ring main units
- Distribution transformers & dry-type transformers
- High-voltage cables, overhead lines
- Voltage / current transformers
- Power supply systems of petrochemical, railway, aerospace and other industries
