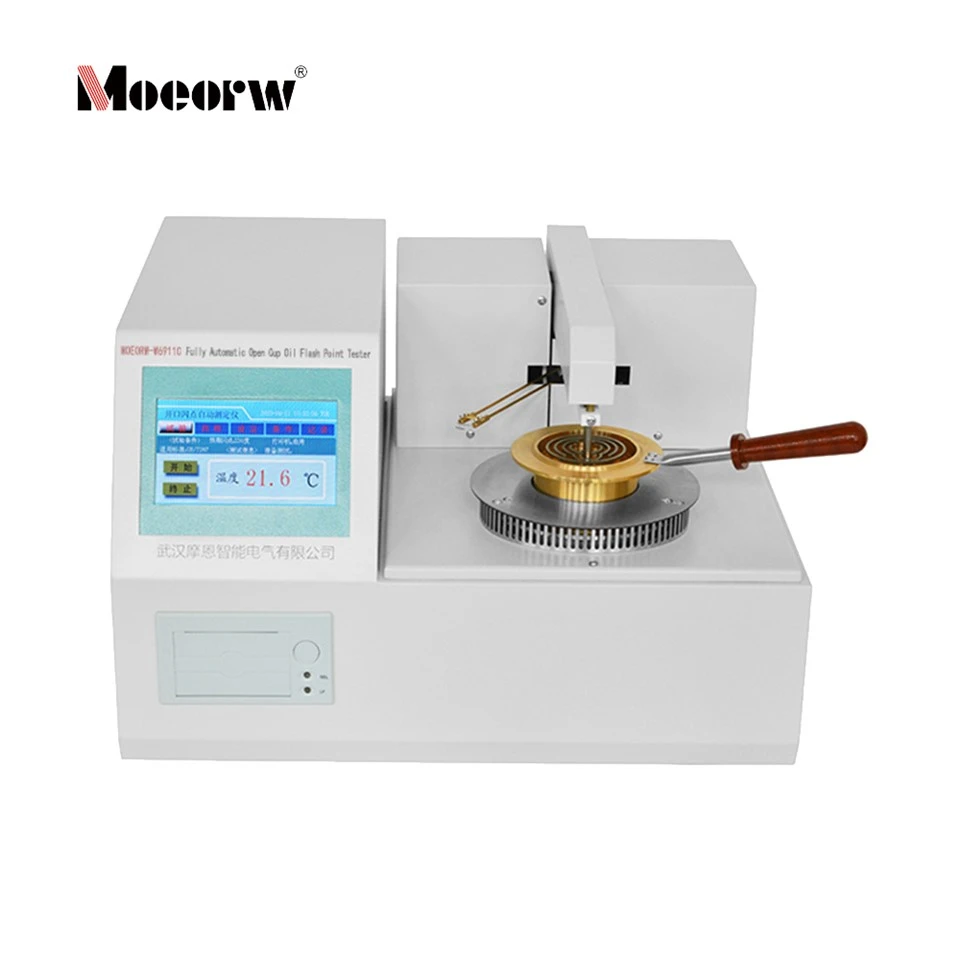

Fully Automatic Open Cup Flash Point Tester

MOEORW-W6911C is an automatic Cleveland open cup tester dedicated to measuring flash point and fire point of petroleum products. It adopts gas-free electric ignition, fully complying with ASTM D92, GB 3536-2008 and GB/T 267-88 test standards. Equipped with ARM high-performance microprocessor, erasable memory, color touch LCD and PID self-tuning algorithm, the unit integrates automatic heating, ignition, sweeping, cooling, data storage and thermal printing. It delivers stable, repeatable test data and serves as a cost-effective alternative to imported equipment for petroleum, power, chemical and commodity inspection laboratories.

1.Hardware & Control Design ARM microprocessor centralized control, touch screen Chinese/English interactive interface, independent modules for lifting, sweeping and ignition with full self-inspection function to verify mechanical and electrical integrity before testing. Built-in real-time clock supports timestamp tagging for all test records.
2.Measurement Performance Advantages Precision platinum resistance temperature sensing ensures stable temperature tracking; standardized heating curve conforms to international open cup test protocols. Automatic atmospheric pressure correction eliminates altitude-induced deviation of flash point readings.
3.Automation & Operational Value Full-process unattended operation: auto heating, periodic ignition sweeping, flash point auto-locking, automatic stop & forced cooling upon detection. Test data can be stored, reviewed, printed and cleared on demand, drastically reducing manual intervention and human error.

Power industry: Flash point detection of transformer insulating oil and industrial lubricants

Petroleum refineries: Quality inspection of crude oil, lubricating oil and heavy fuel oil

Chemical manufacturing: Flammability testing of solvent, coating and petrochemical intermediates

Customs & commodity inspection: Compliance verification of imported & exported petroleum products

Research laboratories: Standard flammability property analysis for petroleum materials

Compliance Standards
ASTM D92, GB 3536-2008, GB/T 267-88 (Cleveland open cup flash & fire point test methods)


Daily Maintenance Rules
1.Regularly clean flash sensor with gasoline or petroleum ether to remove oil contamination, which may weaken detection sensitivity.
2.Inspect detection ring before startup; clear oil stains and fiber debris to avoid short-circuit triggering continuous buzzer alarm.
3.Clean test cup thoroughly between sample batches to eliminate cross-contamination; ensure tight contact between cup and heating base for uniform heat transfer.
4.Do not manually push or lift the lifting rod and sweeping arm to prevent mechanical structural damage.
