Battery Level Recording Analyzer

Product Introduction

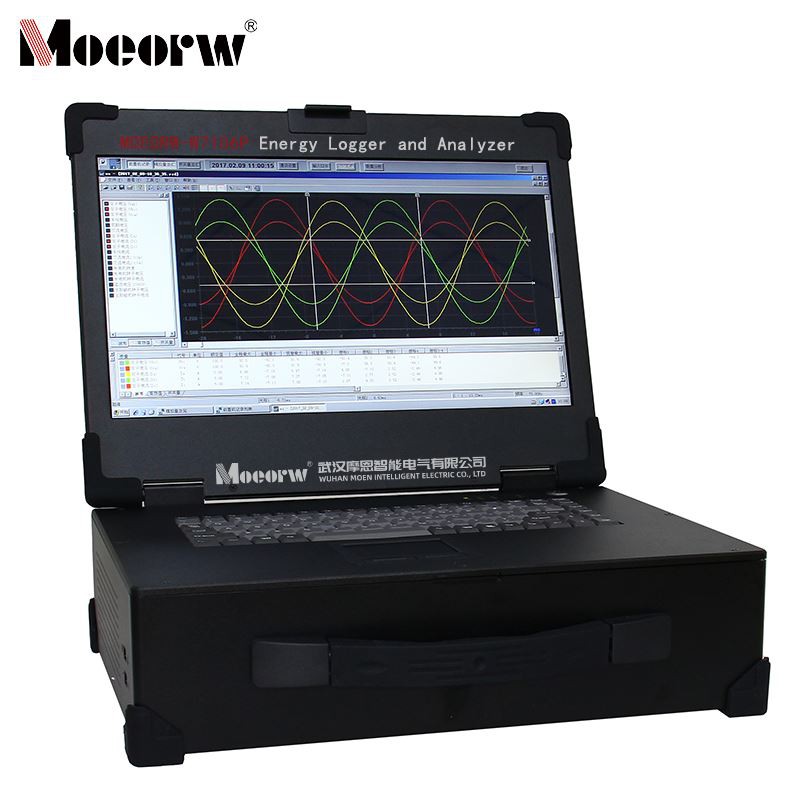

The Power Record Analyzer is a portable device based on an industrial handheld structure. It integrates data acquisition, processing, transmission, storage, and analysis functions into a single unit, utilizing a hardware and software architecture featuring a high-performance DSP, high-precision ADC chip, and an embedded operating system.

The DSP acquisition chip performs data collection and computation, enabling full digital analog signal filtering. Flexible sampling frequencies of 10K/s, 20K/s, 50K/s, and 100K/s are selectable, facilitating waveform recording and analysis of transient electrical signals.

Utilizing an advanced industrial control core combined with an embedded operating system, users can conveniently perform data storage, backup, analysis, and output operations.

The Power Data Recorder and Analyzer is an intelligent instrument integrating fault recording and generator characteristic testing functions. Its compact size, powerful capabilities, broad applicability, and flexible configuration make it highly favored by users. As an essential practical tool for power professionals, it will contribute significantly to the advancement of power industry production and technology.

Product Parameter (specification)

Instrument Specifications

name	Specifications
chassis	Portable industrial control chassis
operating system	Embedded Windows XP
Display screen	15.6" LCD display Resolution: 1366×768
storage	120GB Solid State Drive
interface	1 LAN port 2 USB ports
Keyboard and mouse	88-key keyboard, touchpad
working power supply	AC85-260V 50Hz±0.5Hz DC110-370V
Chassis dimensions (width × depth × height)	407307150 (mm )
Instrument weight	10kg

Channel technical specifications

16-channel analog features

Channel isolation withstand voltage 1500VDC
A/D resolution	16-bit
RMS accuracy	0.2%
Analog sampling frequency	10K/s, 20K/s, 50K/s, 100K/s selectable
There are a total of 8 analog signal processing modules, each consisting of 2 analog channels, configured as follows	AC voltage 150V, 3-channel internal resistance > 80kΩ AC current clamp, AC10A, 3 -channel, internal resistance < 0.1Ω AC current 10A, 2 -channel internal resistance < 0.1Ω AC voltage 500V, 3-channel internal resistance > 80kΩ AC current clamp, AC100A, 1 -channel internal resistance < 0.1Ω DC voltage ±2000V, internal resistance of one channel > 1MΩ DC voltage ±32V, internal resistance of one channel > 15kΩ voltage ±100mV; internal resistance of one channel > 8 kΩ DC current 4-20mA, 1 channel internal resistance 120Ω

16-channel switch input characteristics

Switch event resolution: 0.1 ms
Standard configuration: 8 passive nodes and 8 active nodes (external voltage of active nodes: DC24V-220V).

Fault start-up method

Analog quantities: mutation, excess, under-quantity
Switching quantity: Displacement (closed, open)

Product feature and application

1. Fault Recording: Monitors operational parameters of connected equipment, records data during faults, and performs fault data analysis;

2. Real-time Monitoring: Displays analog and digital quantities in real time;

3. Calculated Quantities: Measures active power, reactive power, frequency, positive-sequence, negative-sequence, zero-sequence, vector sum (difference), and phase angle, with real-time display of calculated values;

4. Comprehensive Generator Electrical Start-up Testing: Performs generator characteristic tests including no-load tests, short-circuit tests, no-load and load tests for main excitation; excitation tests such as zero-voltage rise tests, de-excitation tests, and 10% step tests; synchronizing tests; and other user-specified tests.

Prodection details

This instrument can be used for online monitoring of critical equipment in power systems or other industries; it can also serve as a portable device for fault recording and analysis in various industrial equipment; or leverage its data processing and computational capabilities as a data source to provide real-time data to other systems.

Company Qualifications

FAQ

1)What is the chassis type of the MOEORW-W7106P Power Data Logger and Analyzer?

Answer: The MOEORW-W7106P Power Data Logger and Analyzer utilizes a portable industrial control chassis. It features a compact size and portability, making it suitable for mobile scenarios such as on-site power operations. Its chassis dimensions (W × D × H) are 407 × 307 × 150 mm, and the instrument weighs 10 kg.

2)What types of power supplies does the MOEORW-W7106P Power Data Logger and Analyzer support?

Answer: The MOEORW-W7106P Power Data Logger and Analyzer supports both AC and DC power sources. The AC power specification is AC 85-260V, 50Hz ± 0.5Hz, while the DC power specification is DC 110-370V, accommodating diverse power supply requirements across different scenarios.

3)What types of nodes are included in the standard configuration of the digital input channels for the MOEORW-W7106P Power Data Logger and Analyzer?

Answer: The standard configuration of the MOEORW-7106P Power Data Logger and Analyzer's 16 digital input channels comprises 8 passive nodes and 8 active nodes. The active nodes support an external voltage range of DC24V-220V, with a digital event resolution of up to 0.1ms, enabling precise capture of digital input status changes.
