Product Introduction

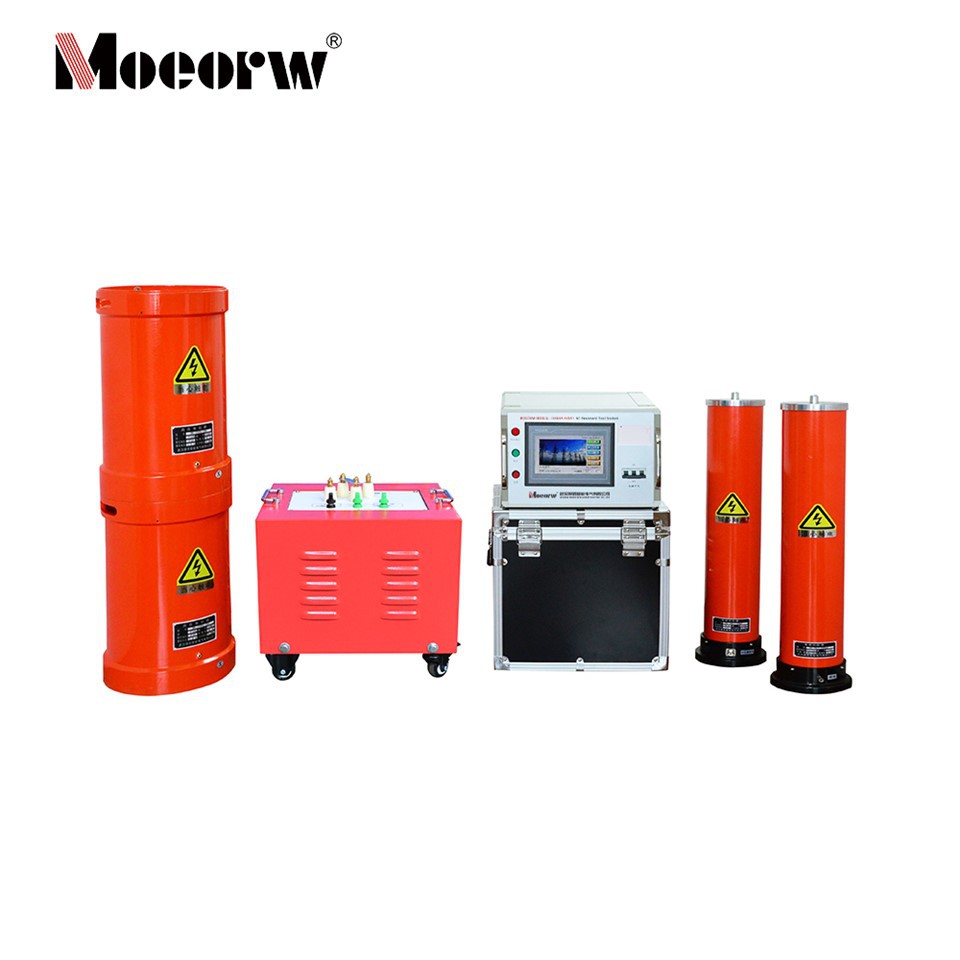

The MOEORW-WXB16-44kVA/44kV frequency conversion series resonant test device is a high-voltage testing equipment designed specifically for AC withstand voltage tests of 10kV cables, 10kV switches, and 10kV/8000kVA main transformers. It adopts a multi-section split reactor and is suitable for both high voltage and low current test conditions and low voltage and high current test conditions. It has a wide range of applications and is an ideal withstand voltage test equipment for power testing, installation, and repair units in cities and counties.
core components of a frequency converter control power supply, an excitation transformer, a high-voltage reactor, a capacitive voltage divider, a compensation capacitor , and testing accessories.
Product Parameter (specification)
| I. Core Parameters of the Machine | |
| Product Model | MOEORW WXB16 44kVA/44kV |
| Rated capacity | 44kVA |
| Rated voltage | 22kV/44kV (dual output) |
| Operating frequency | 30Hz～300Hz ; 45Hz～65Hz for main transformer testing. |
| Output waveform | Sine wave , waveform distortion rate < 1.0% |
| Quality factor Q | ≥30 (f=45Hz) |
| System measurement accuracy | 1.50% |
| Continuous working time | 5 minutes under rated conditions |
| Input power | Three-phase 380V or single-phase 220V , 50Hz |
| Protection functions | overvoltage, overcurrent, zero-position start, system detuning (flashover) protection |
| II. Core Component Parameters | |
| 1. Variable frequency drive (VFD) power supply (1 unit) | |
| Rated power | 3kW |
| Input voltage | Three-phase 380V / Single-phase 220V±5%, 50Hz |
| Output voltage | 0～400V adjustable |
| Output frequency | 30～300Hz , 0.1Hz step, instability≤0.02% |
| Output current | 0～7.5A |
| 2. High-voltage reactors (2 units) | |
| Rated operating voltage | 22kV / unit |
| Rated operating current | 1A/unit |
| Rated inductance | 92H / unit |
| Continuous operation | 5 minutes , temperature rise <65K |
| Operating frequency | 30～300Hz |
| 3. Excitation transformer (1 unit) | |
| Rated capacity | 3kVA |
| Input voltage | 400V |
| Output voltage | 1.5kV/3kV |
| Output current | 2A/1A |
| 4. Capacitor voltage divider (1 set) | |
| Self-capacitance | 2000pF |
| Rated voltage | 50kV |
| Operating frequency | 30～300Hz |
| Measurement uncertainty | 1.50% |
| Transformer ratio | 1000:01:00 |
| 5. Compensation capacitor (1 unit) | |
| Self-capacitance | 30000pF |
| Rated voltage | 40kV |
| Operating frequency | 30～300Hz |
Product Features and Applications
- Energy-saving and lightweight : The required test power capacity is only 1/Q of that of traditional equipment, and the weight and volume are about 1/10 of that of conventional equipment, making it easy to transport on site.
- Waveform purity : Outputs a sine wave with a distortion rate of <1.0%, avoiding harmonic peaks that could cause the test sample to break down.
- Safe and reliable : When the test sample breaks down, the circuit quickly detunes and the current drops sharply, eliminating the risk of large current burning out the fault point, and there is no recovery overvoltage.
- Intelligent and easy to use : Supports three modes: fully automatic, manual, automatic tuning, and manual voltage boost. It has built-in overvoltage/overcurrent/flashover/zero-point start protection and can store and print test data.
- Advanced technology : It adopts a DSP platform, has a user-friendly human-computer interaction, and supports function upgrades and parameter customization.
Prodection details
- AC withstand voltage test of 10kV cross-linked polyethylene cable
- 10kV switch AC withstand voltage test
- 10kV/8000kVA Main Transformer AC Withstand Voltage Test
