Product Introduction

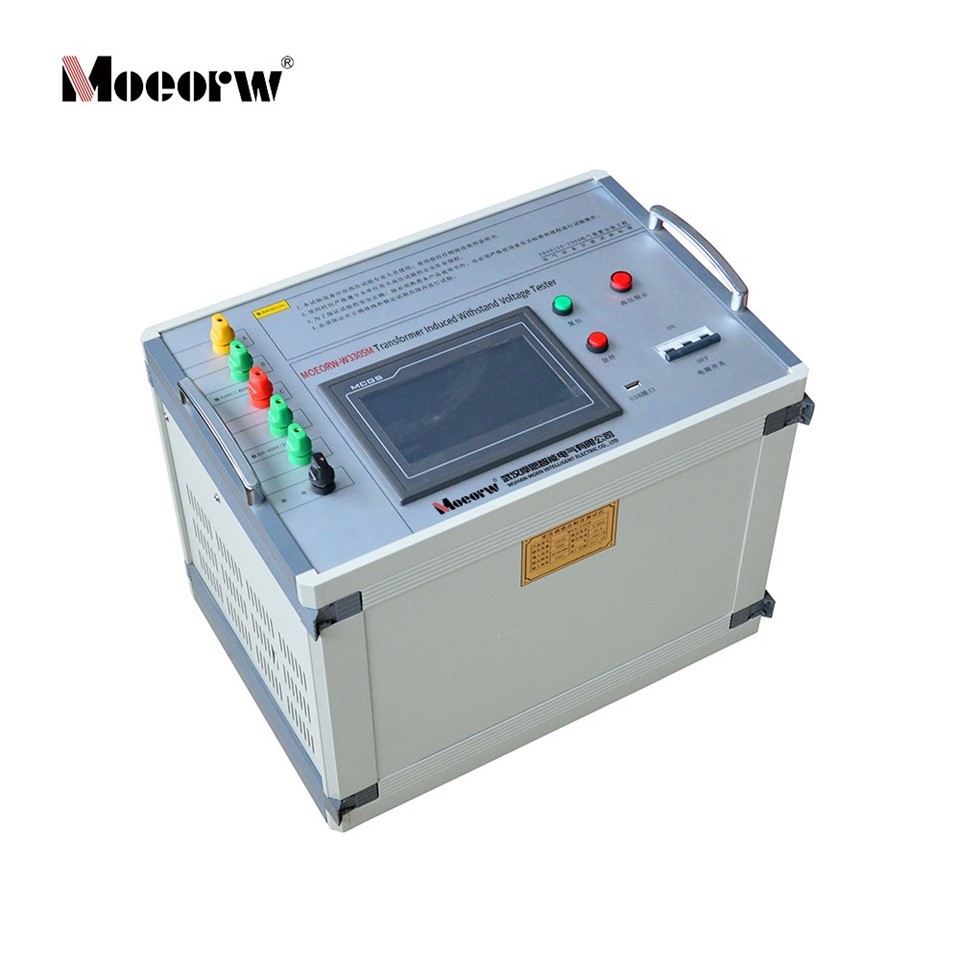

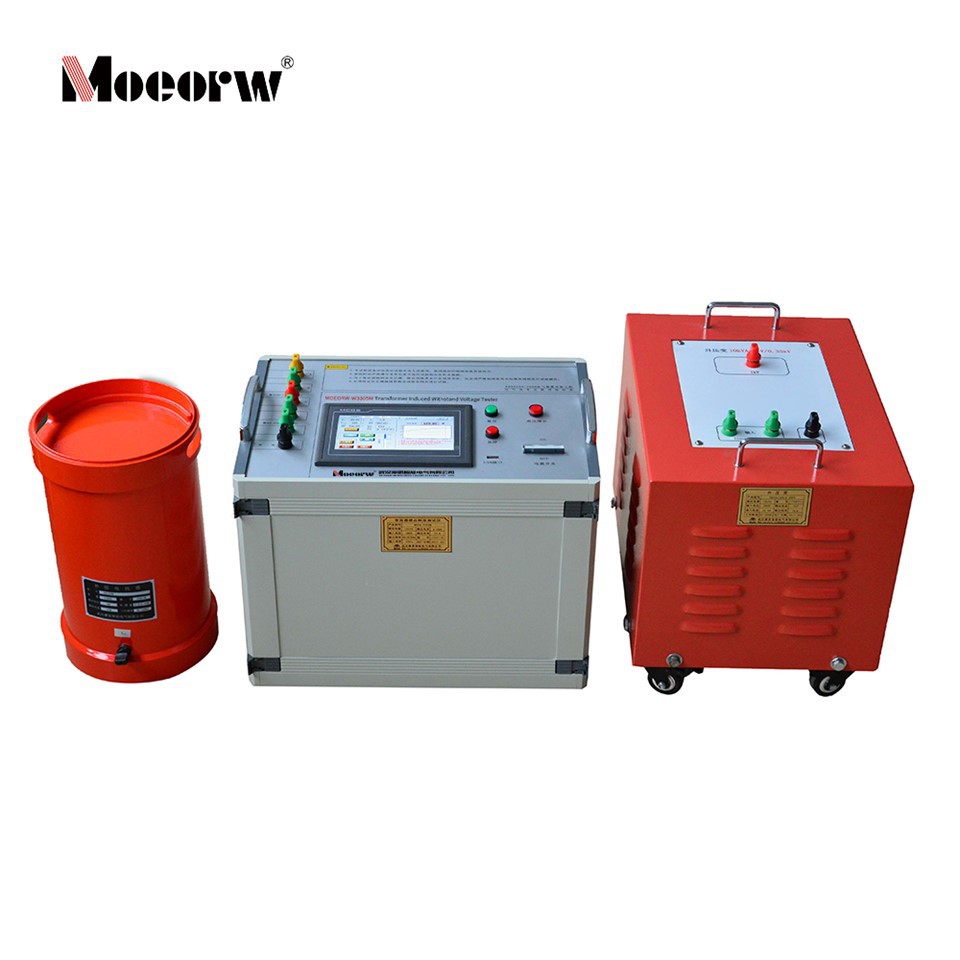

MOEORW-W3305M transformer induced withstand voltage tester is a new type of multi-frequency electrical test equipment based on power electronics technology. It abandons the traditional frequency tripling generator structure, uses frequency conversion regulator and touch control, can output 50Hz/100Hz/150Hz/200Hz multi-frequency voltage, with small size, light weight, high power adaptability, and is widely used in transformer induced withstand voltage test. It integrates control, protection and data storage, and realizes intelligent and standardized test operation.
Product Parameter (specification)
| Multi-frequency Unit | Capacity 10kVA, input three-phase AC380V±10%, 50Hz, output 0-400V, waveform distortion rate <3% |

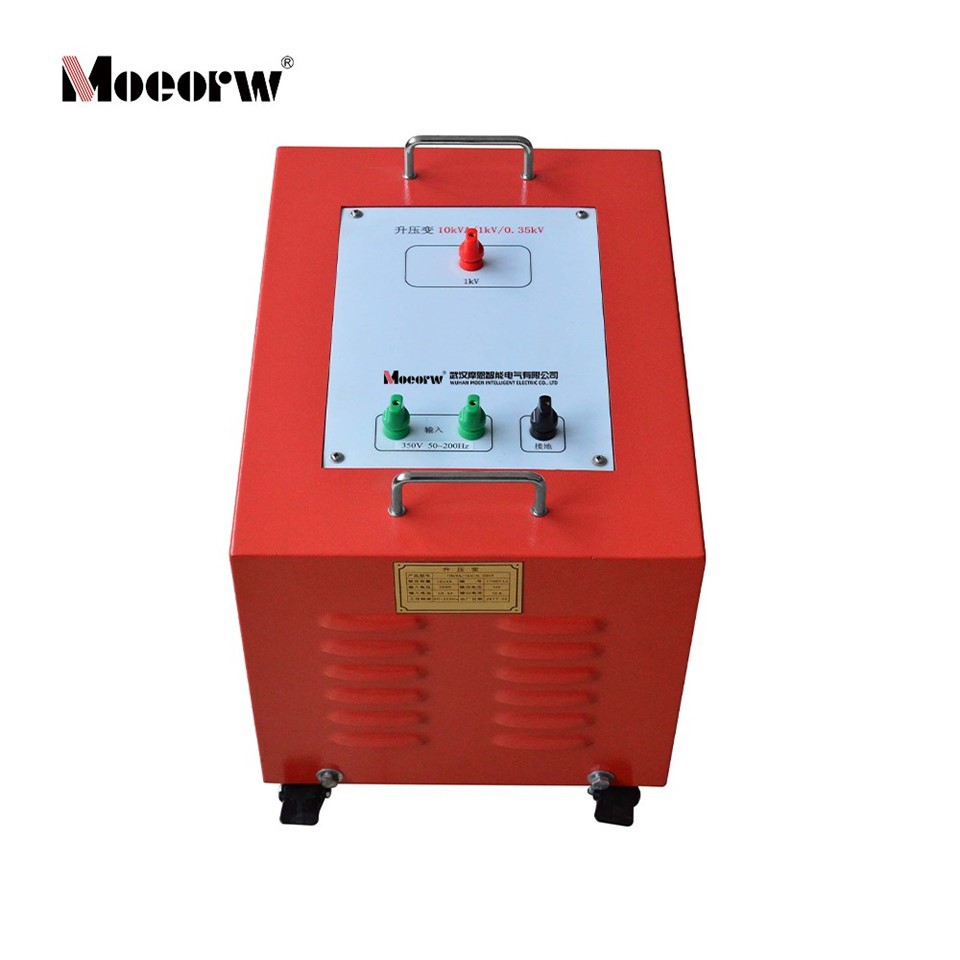

| Step-up Transformer | Rated capacity 10kVA, input 350V, output 1kV, output current 10A |
| Output Frequency | 50Hz/100Hz/150Hz/200Hz optional |
| Voltage Regulation Step | 1V/2V/5V/10V adjustable |
| Protection | Over-voltage, over-current, flashover protection |
| Structure | Integrated control box, portable design |
Product Feature
- Adopt power electronics frequency conversion technology, multi-frequency optional output

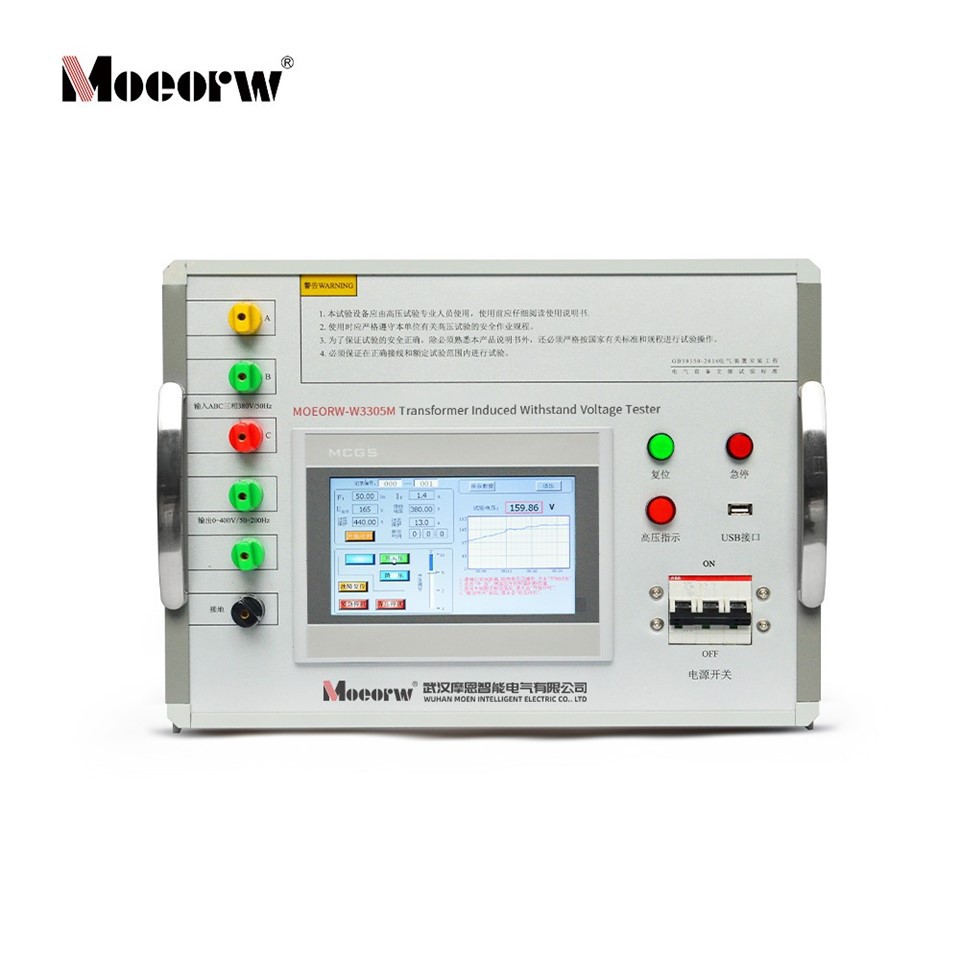

- Touch screen operation, parameter preset, step voltage regulation, easy to use
- Built-in LC filter circuit, low waveform distortion rate
- Integrated structure, small size and light weight, easy to carry
- Reduce the demand for on-site power supply capacity, strong adaptability
- With data storage, query and management functions, traceable test records
- Equipped with special compensation reactor, matching different load test requirements
Product Application
- Factory delivery test and type test of distribution transformer and power transformer
- Routine preventive test of transformer in power grid and industrial and mining enterprises
- Induced withstand voltage test of special transformer and new energy equipment
- Electrical test room, power maintenance unit and testing mechanism test use
- Transformer insulation performance evaluation and fault diagnosis test
Company Qualifications
FAQ
Q: How to select the compensation reactor tap?
A: No need for compensation if voltage meets requirements; use L0L2 tap when voltage exceeds half of target; use L0L1 tap when voltage is less than half of target.
Q: What are the protection functions?
A: It has over-voltage protection, over-current protection and flashover protection. When exceeding the set limit, the output will be cut off automatically to ensure equipment and test safety.
