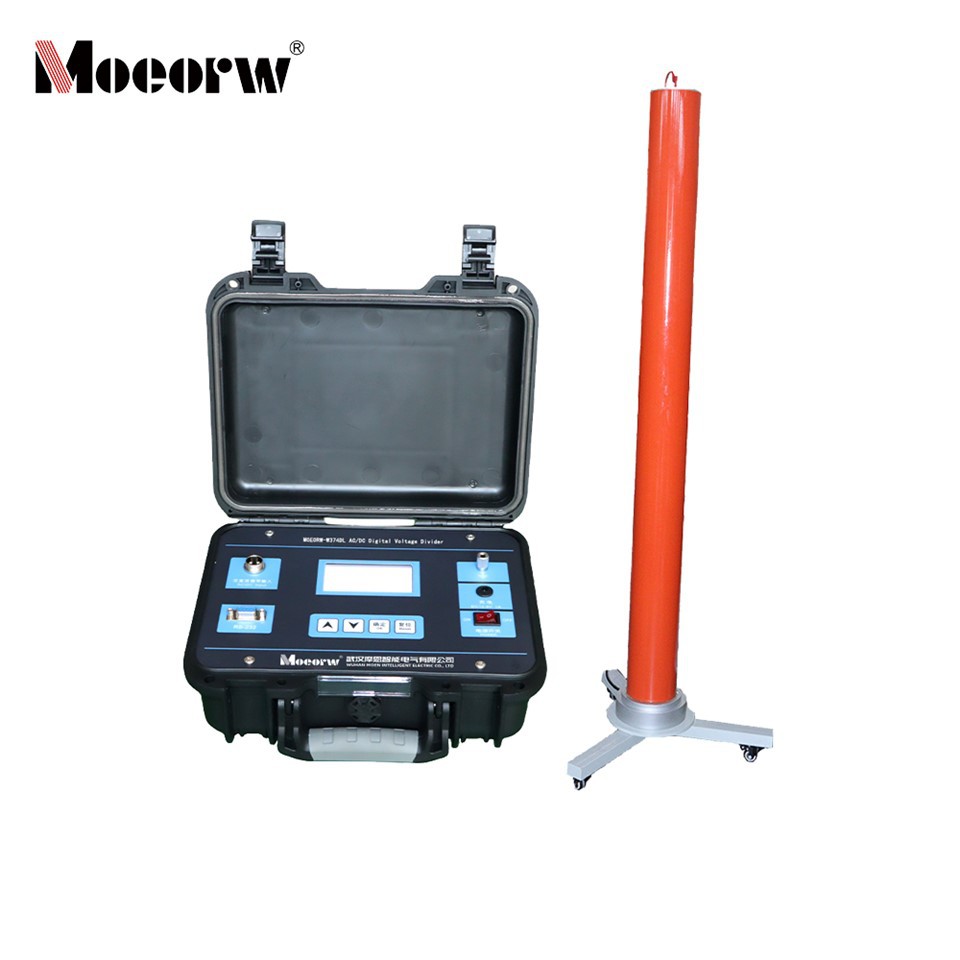

MOEORW-W374DL 200 kV AC DC Voltage Divider
The MOEORW-W374DL AC/DC high-voltage dividers is a dedicated high-voltage measurement device, suitable for high-voltage testing needs in power systems and electrical and electronic equipment manufacturing.
It features high precision, strong anti-interference capabilities, safety and reliability, and is portable. It can measure AC and DC high voltages and can also be used independently with a voltage divider and multimeter for measurement.
Product Introduction
High Voltage Digital Voltmeter is an ideal device for high voltage measurement and is mainly used in power systems and electrical and electronic equipment manufacturing departments to measure power frequency AC high voltage and DC high voltage .
This instrument consists of two parts : a high-voltage divider and a low-voltage display meter . The two parts are connected by a matching cable.
Product Parameter (specification)
|
Voltage divider impedance |
24 00 MΩ |
|
Voltage divider voltage level |
AC: 200kV DC : 200kV |
|
Display range |
0-20kV High: 0-20kV |
|
AC measurement method |
True RMS measurement |
|
accuracy |
AC: 1.0% DC: 0.5% |
|
insulating medium |
DuPont Dry Media Materials (USA) |
|
Voltage divider voltage ratio |
1000:1 |
|
Connect coaxial cable |
4 m |
|
Ambient temperature |
0~40 ℃ |
|
humidity |
≤85%RH |
Product feature and application
1. High precision
It employs precision high-voltage film capacitors and precision high-voltage glass glaze resistors , resulting in high input impedance, reduced test current, low power consumption, and improved measurement accuracy and stability.
The signal processing section uses a high-performance OP for signal amplification, employs the latest dual-slope integrating AD sampling technology, and features a four-and-a-half-digit LCD display with a maximum resolution of 0.001kV. It is a next-generation product that replaces the high-voltage electrostatic voltmeter.
01
2. Good anti-interference performance
Special shielding technology is employed. The smooth and glossy surface of the equalizing sphere made of aluminum alloy effectively improves the electric field distribution around the sphere, prevents tip discharge, and enhances the anti-interference capability of the measurement data . The low-voltage display instrument adopts a fully enclosed metal shielding structure, and the high-voltage divider and low-voltage display meter are connected by a high-quality coaxial cable to reduce the influence of high voltage on the readings, thereby achieving high stability and high linearity.
02
3. Safe and reliable
This instrument consists of a high-voltage divider and a low-voltage display instrument. The high-voltage divider uses DuPont filling material and a special potting process, resulting in a smaller and lighter structure, minimizing internal partial discharge and increasing reliability. There is no oil leakage issue. During operation, the high-voltage divider and the low-voltage instrument are connected by a coaxial cable, with a considerable distance between the high and low voltage sections, ensuring safe and reliable operation.
03
4. Simple to operate
It uses a DIP switch to switch between high and low voltage, AC and DC, which is convenient and quick. The four-and-a-half-digit LCD directly displays the measurement results, which is simple and intuitive. It brings great convenience to on-site testing work.
04
5. Easy to carry
Featuring a portable design, the entire unit is housed in an aluminum alloy case, allowing for easy assembly and disassembly. Its small size and light weight make it easy to carry and use.
05
Prodection details
Power System Field
It is used for measuring high voltage AC and DC voltages in power systems, providing voltage data support for high voltage detection, operation and maintenance of power systems.
Electrical and electronic equipment manufacturing field
It is applicable to high-voltage testing in the production and manufacturing of electrical and electronic equipment, and controls the high-voltage related performance and indicators of equipment during the production process.
