Product Introduction

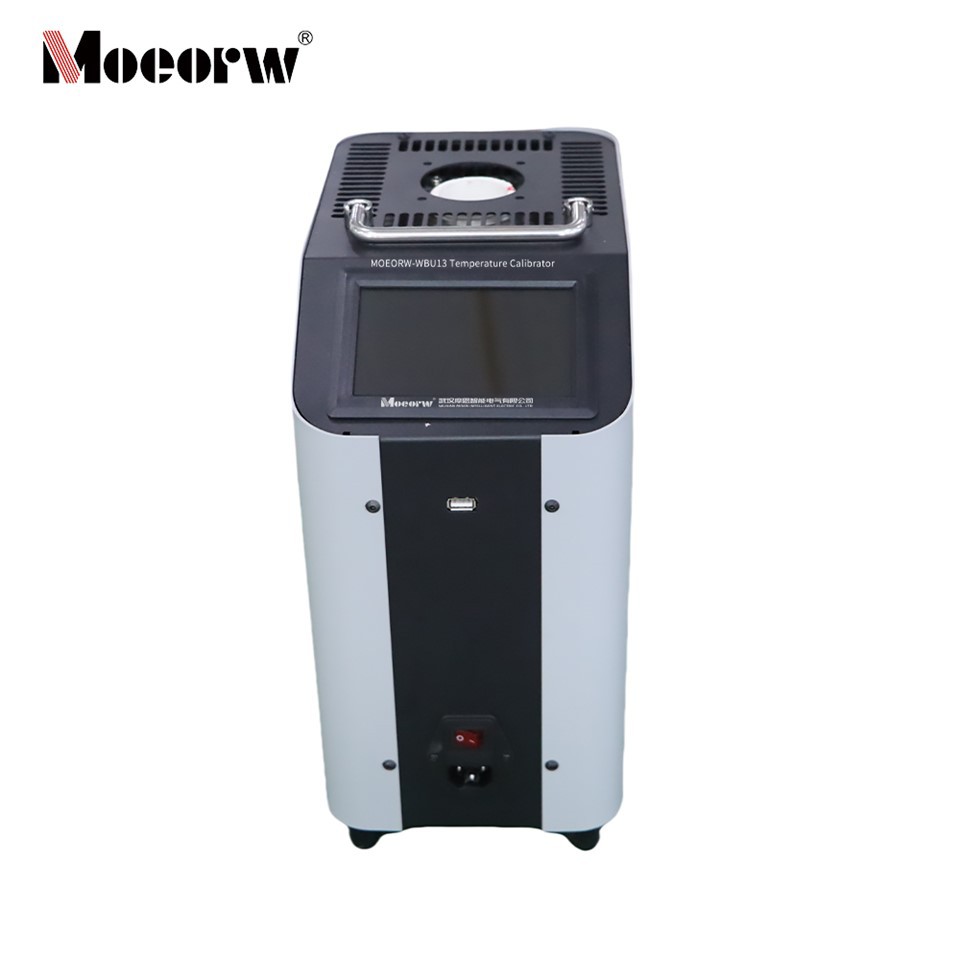

The MOEORW-WBU13 is easy to carry and use, and provides quick and reliable temperature calibration. It is widely used in industries such as machinery, chemicals, food, and pharmaceuticals.
Currently available dry-block calibration furnaces in China generally suffer from slow cooling and slow temperature hold-up, resulting in lengthy calibration times for users. Our latest generation of dry-block furnaces utilizes the most advanced international cooling principle design, featuring rapid cooling and temperature hold-up, significantly improving calibration efficiency.
Through high-precision temperature measurement by sensors and reliable temperature control circuits, the accuracy is ensured to be higher than that of other domestic manufacturers, and the technology meets international standards; the world's first touch operation is simple and quick to use.
Product Parameter (specification)
| Note: This technical specification is valid only after the product has reached and stabilized at the set temperature for 10 minutes in an environment of 23±5℃. | |
| Temperature control range | 300～1200 ℃ |
| Resolution | 0.01 and 0.001 ℃ selectable |
| Temperature units | ℃ , ℉ |
| Control accuracy | ±0.1%FS |
| Temperature stability | ≤ ± 0.2 ℃ /15 minutes |
| Horizontal temperature field | ≤ ± 0.25 ℃ ( under constant temperature fast-acting conditions ) |
| Vertical temperature field | The deviation within 10mm from the bottom of the constant temperature fast hole is no greater than 1 ℃ |
| Insertion depth | 135 mm |
| Heating rate |
25 ℃ to 300 ℃ : 10 minutes; 300 ℃ to 600 ℃ : 15 minutes; 600 ℃ to 800 ℃ : 20 minutes; 800 ℃ to 1200 ℃ : 30 minutes |
| Cooling rate |
1200 ℃ to 800 ℃ : 25 minutes ; 800 ℃ to 600 ℃ : 15 minutes ; 600 ℃ to 300 ℃ : 60 minutes ; 300 ℃ to 50 ℃ : 180 minutes |
| Number of sensors that can be inserted and hole diameter | The standard configuration is 4 holes, namely φ6, φ8, φ10 and φ12mm |
| Note: The outer diameter of the constant temperature fast sensor is 39mm. When ordering, please specify the insertion depth and outer diameter of the sensor to be tested. | |
General Technical Specifications
| Ambient temperature range | 0~50 ℃ ( 32-122 ℉ ) |
| Ambient humidity range | 0%-90% (non-condensing) |
| Dimensions | 250mm × 150mm × 310mm (Length × Width × Height ) |
| Weight | 11 kg |
| Operating voltage | 220V AC ± 10%, 110V AC ± 10% optional , 45-65 Hz |
| Power | 3000W |
Product features and applications
1. Small size, light weight, and easy to carry;
2. Multiple types of insertion tubes are available to meet the testing and calibration of sensors of different sizes and quantities. Customization is also available to meet specific user needs.
3. Good horizontal and vertical temperature fields;
4. The insertion depth of the tested sensor is among the best in the industry;
5. 5.0-inch capacitive touch screen, 16-bit true color RGB display, full touch operation, intuitive and easy to use;
6. Rapid cooling, easy to set, and good temperature control stability;
7. The thermostatic block is replaceable;
8. It has functions such as load short circuit, load open circuit and sensor protection.
