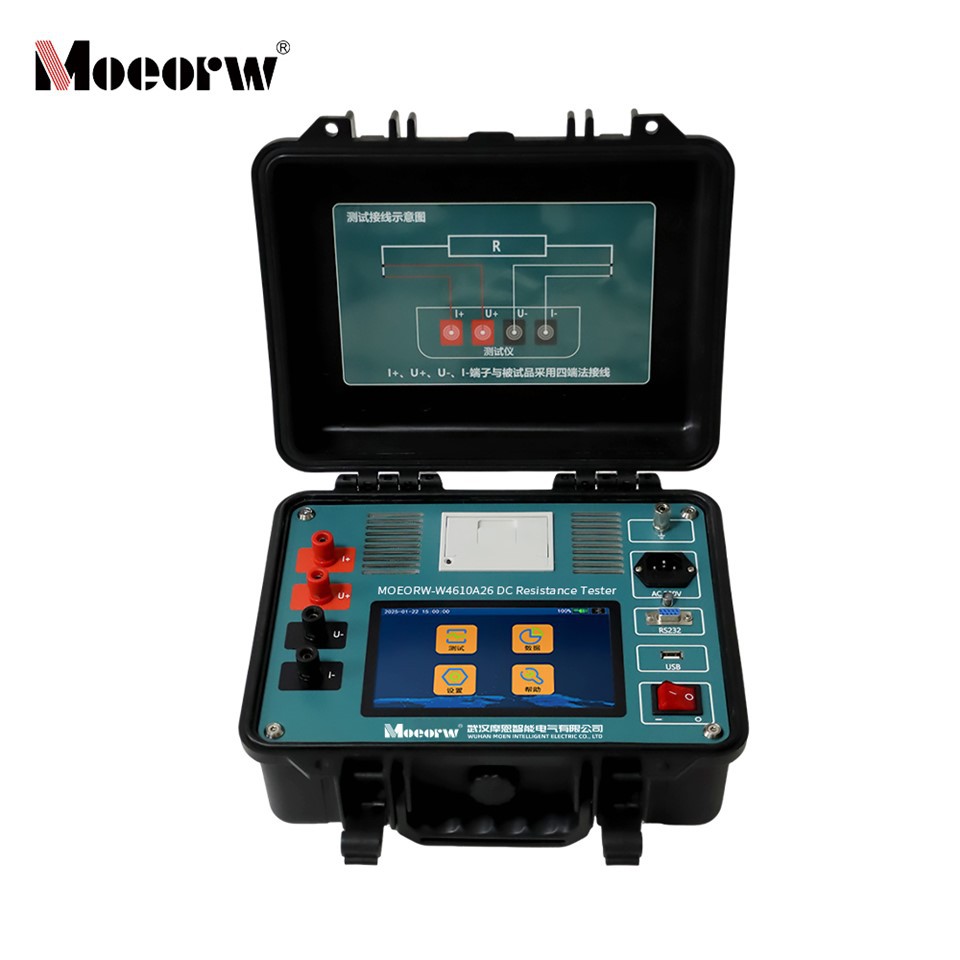

MOEORW-W4610A26 Transformer DC resistance test

The MOEORW-W4610A26 DC resistance tester is a professional device for rapid DC resistance testing of transformers and other equipment, replacing single and double-arm bridges.

10A DC resistance tester features multiple current settings, a wide measurement range, high precision, temperature conversion, multiple data storage and transmission methods, comprehensive protection, and convenient operation.

It is suitable for DC resistance testing in the manufacturing, installation, handover, and preventive testing of electrical equipment such as transformers by the power sector.

Product Introduction

DC resistance measurement of transformers is a mandatory test item in the manufacturing process, including semi-finished and finished product factory tests, installation and commissioning tests, as well as preventive tests by the power sector. It can effectively detect manufacturing defects such as material selection, welding, loose connections, missing strands, and broken wires in transformer coils , as well as potential hidden dangers after operation. The DC resistance tester is a rapid testing device for measuring the DC resistance of transformers, instrument transformers , generators, and motors, and is a replacement product for single-arm and double-arm bridge circuits.

Product Parameter (specification)

Test current	Test range	Accuracy
10A	200 μΩ ~ 1.6Ω	± (0.2% reading + 1 μΩ)
5A	5 mΩ ~ 4.0 Ω	± (0.2% of the reading + 0.005 mΩ )
1 A	20 mΩ ~ 20 Ω	± (0.2% reading + 0.02 mΩ)
100 mA	200 mΩ ~ 200 Ω	± (0.2% reading + 0.2 mΩ)
10 mA	2 Ω ~ 50K Ω	± (0.5 % reading + 2mΩ )

Main unit dimensions: 330mm × 250mm × 150mm
Main unit weight: 4.7kg

Usage conditions
Ambient temperature	-10℃ to 50℃
Ambient humidity	≤85%RH
Operating power supply	AC220V ±20%

Product feature and application

The instrument has a wide resistance measurement range ( 0-50kΩ ) , high resolution, and multiple current ranges to choose from .
It has a complete protection circuit, clear indication, and prevents misoperation.
It features a high-brightness 7-inch color LCD screen that is visible in sunlight, provides a clear display, and has a user-friendly interface.
It supports Bluetooth data communication and RS232 interface.
It has a built-in printer that can print measurement data.
It can store at least 512 sets of measurement data.
It has a built-in high-precision clock that displays the time in real time.
Supports switching between Chinese and English interfaces.
It supports both APP operation and PC software operation.
The instrument has an automatic testing (blind testing) function.
The instrument has comprehensive back EMF protection.
The instrument has a temperature conversion function, which automatically converts the resistance value to the standard temperature.
The longitudinal test of the DC resistance of an on-load tap-changing transformer can be completed in one go.
The instrument has high measurement accuracy and features anti-interference, shock resistance, and portability.
It has USB flash drive storage function.
