Handheld DC Resistance Tester

Handheld Transformer DC Resistance Tester

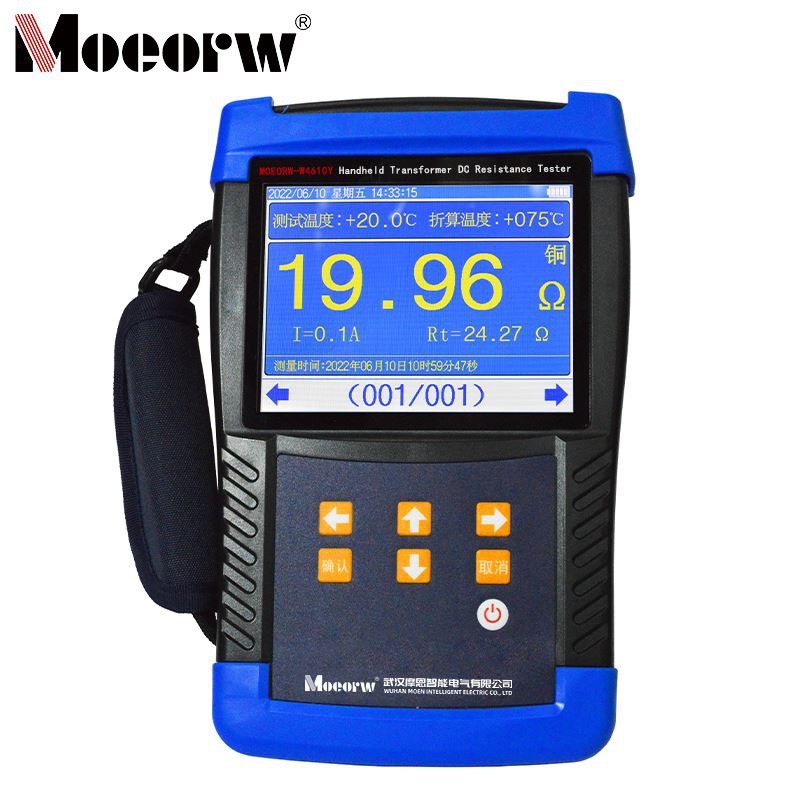

MOEORW-W4610Y Handheld Transformer DC Resistance Tester is an innovative product featuring a compact size and handheld operation for enhanced portability and ease of use.

Suitable for measuring inductive test specimens such as transformers, instrument transformers, and reactors, it also accommodates resistive test specimens including copper busbars, conductors, and switch contacts. The instrument delivers fast testing speeds and high accuracy.

1. Adaptable to lithium battery or 220V AC power supply. A single charge enables continuous testing of hundreds of transformers' DC resistance, with a simple and convenient testing process.

2. Outputs six current levels, with a maximum output of 10A current and 25V voltage. Features automatic current selection for quick and easy operation.

3. Wide measurement range with high precision: 500μΩ to 50kΩ.

4. Features resistance temperature conversion functionality. Optional wireless temperature measurement module allows real-time monitoring of test specimen temperature to ensure accurate resistance conversion values.

5. Multiple protection functions including back-EMF protection, open-circuit protection, power failure protection, and overheat alarm.

6. 5.6-inch industrial-grade high-brightness color LCD screen remains clearly visible even under strong sunlight.

7. Equipped with an external printer (optional) for convenient data printing.

8. Features both internal storage and USB flash drive storage.

Suitable for measuring DC resistance of inductive test specimens such as transformers, instrument transformers, and reactors, as well as resistive test specimens including copper busbars, conductors, and switch contacts.

The Optics Valley's Wuhan East Lake High-Tech Development Zone, China's "National Independent Innovation Demonstration Zone," is home to Wuhan Moen Intelligent Electric Co., Ltd. The building space of the company's 28-acre property is 8,000 square meters. As a specialized business involved in the design and production of electrical equipment, it mainly supplies sophisticated high-voltage testing and detection tools to the power system's power generation, power supply, and power consumption departments as well as research organizations and power equipment manufacturers. One of the first producers in China with a focus on high-voltage testing, the company was founded in 1992 at the Wuhan High-Voltage Research Institute's High-Voltage Testing Equipment Manufacturing Plant.
