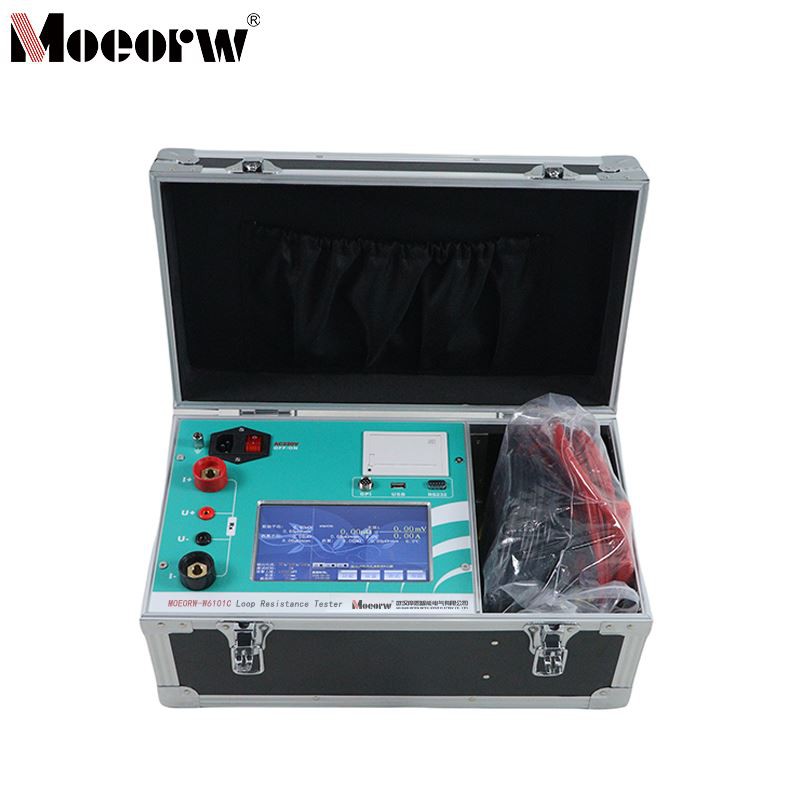

Color Touch Screen Loop Resistance Tester

Product Introduction

The MOEORW-W6101C Loop Resistance Tester is expertly constructed with complex electronic circuitry and cutting-edge high-power switching power supply technology. It is a specialist tool for measuring contact resistance in welded joints, cables, wires, and high/low voltage switches. It precisely ascertains the resistance value of test specimens under standardized current settings by using the standard direct current suggested by national standard GB736.

Product Parameter (specification)

Selection	100A	200A	300A	400A	500A	600A	10-5000A
Measurement gear	20A 50A 100A Customizable	20A 50A 100A 150A 200A Customizable	20A 50A 100A 150A 200A 300A Customizable	20A 50A 100A 150A 200A 300A 400A Customizable	20A 50A 100A 150A 200A 300A 400A 500A Customizable	20A 50A 100A 150A 200A 300A 400A 500A 600A Customizable	Current customization Customized two-phase Customized three-phase
Measurement range	0 ~19999 mWis scalable
Accuracy	0.5%rdg±10dgt
resolution	0.01mW
working power supply	AC 220V ±10% 50Hz ±2%
Length (mm)	450	450
Width (mm)	250	250
Height(mm)	220	280
Weight (Kg)	9.9	12.9
Ambient temperature	-25 °°C ~50 °°C
relative humidity	£90%RH

Product feature and application

1. Color Touchscreen: 7-inch high-definition color touchscreen (800×480 resolution) with human-machine interaction and high-speed thermal printer.

2. Multi-Current Output: Utilizes the latest power supply technology to deliver sustained high-current output over extended periods with multiple current settings. Supports configuring 1-3 distinct current levels for testing, automatically calculating average values.

3. Multiple Data Display: Shows resistance, voltage, current, resistivity, and resistance value converted to standard temperature.

4. Automatic Overlimit Alarm: Sets upper resistance limit; automatically generates test status when resistance is qualified, overlimit, or invalid.

5. Long-Term Testing Capability: Measurement time adjustable from 0-9999 seconds for extended operation. Built-in cooling fan and automatic thermal protection for switching power supply.

6. High-precision measurement: Utilizes precision operational amplifiers and high-accuracy quadruple-integrating A/D converters.

7. Latest system chip: Employs a high-performance 32-bit ARM chip. During measurement, the system automatically switches amplification levels based on signal magnitude, ensuring testing accuracy.

8. Built-in calendar clock: Provides time references for printing and saving data.

9. DC Constant Current Source Function: Outputs 0-maximum current with built-in step-up current testing. Equivalent to purchasing a powerful DC constant current source, offering multi-functionality in one unit.

10. Massive Test Data Storage: Features large-capacity storage for extensive data retention. Includes data storage, browsing, and power failure protection functions.

11. USB Data Export: Equipped with USB data export functionality, exporting data as Excel files.

12. Standard Modbus-RTU: Features an RS232 interface (optional upgrade to RS485), utilizing standard Modbus-RTU communication protocol.

13. PC Control & Data Upload: Includes an RS232 host computer interface for remote control, data upload, and generation of Word/Excel files.

14. Wire-controlled operation for assembly line convenience: Optional wire-control mode allows external switch (closed/open) to initiate/interrupt testing. Over-resistance output dry contacts can activate alarm lights.

15. Wireless remote control for quick operation: Optional remote (available separately) enables one-touch testing/interruption. Customizable remote display shows test status.

16. Temperature-compensated resistance conversion: Preset temperatures automatically convert resistance values to standard temperature equivalents. Optional temperature sensors (optional) measure actual temperatures.

17. Customizable background colors: Adjust screen colors to patterned blue or black backgrounds. Set brightness levels, standby brightness, and standby duration.

18. Built-in training materials: On-screen diagrams illustrate various wiring configurations for field guidance.

19. English input for test information: Enter site, equipment, personnel, and remarks in English to conveniently label and save test data, facilitating labeled test data printing.

20. Rapid high-current cable connection: Utilizes the latest high-current cable interface-simply insert and twist for quick, convenient connection.

21. Optional multi-phase functionality: Standard single-phase configuration; optional upgrade to two-phase simultaneous measurement (dedicated conductor resistance tester) or three-phase simultaneous measurement.

Prodection details

MOEORW-W6101C Loop Resistance Tester is a specialized instrument designed for contact resistance testing of high- and low-voltage switches, cables, wires, and welded joints. It is primarily used in scenarios requiring precise measurement of conductor contact resistance, specifically including:

1. Power Systems:

Contact resistance testing of high- and low-voltage switchgear to ensure switching performance and safe operation of power equipment;

2. Cable Manufacturing & Maintenance:

Testing conductor resistance and joint contact resistance in cables and wires to validate cable quality and connection reliability;

3. Mechanical Manufacturing & Welding:

Inspecting weld seam contact resistance to ensure welded areas meet conductivity standards and prevent issues like overheating caused by excessive contact resistance;

4. Industrial Production Lines:

Supports wired operation (optional), enabling efficient resistance testing in mass production scenarios such as factory quality control for electrical components and conductive parts;

5. Laboratories and Research:

Functions as a DC constant current source with multiple current ranges and temperature compensation, meeting high-precision resistance testing and related research requirements.

Company Qualifications

FAQ

1)What is the core testing principle of the MOEORW-6101C Loop Resistance Tester?

Answer: This instrument employs the current-voltage method (also known as the four-wire method) for testing. A current source supplies current to the resistance under test (Rx) through the "I+" and "I-" ports, with the current magnitude read by an ammeter. The voltage drop across Rx is then measured via the "V+" and "V-" ports and read by a voltmeter. Finally, the resistance value of the measured resistor is calculated using the obtained current (I) and voltage (V) data.

2)What remote control methods does the MOEORW-6101C Loop Resistance Tester support?

Answer: This instrument supports two remote control methods (both optional or standard features):
1. Bluetooth Communication Control (Optional): Install the dedicated Bluetooth app (BTAPP.apk) on an Android phone. After pairing devices (password 1234), you can perform operations such as starting/stopping tests, uploading data, and saving results. Data is stored in the "data" folder on the phone's memory.
2. Serial Port Communication Control (Standard): Connect to a computer via the RS232 interface (upgradable to RS485 as an option). Using the host computer software (MODBUS-RTU-TEST.exe), you can configure parameters, start/interrupt tests, upload data, and export WORD/EXCEL files. The communication protocol is standard Modbus-RTU (baud rate 9600-N-1).

3)What are the key requirements for transporting and storing the MOEORW-6101C Loop Resistance Tester?

Answer:
1. Transportation Requirements: Use the manufacturer's original wooden packaging and shock-absorbing materials. Without wooden crates, stacking is prohibited. With wooden crates, stacking is limited to two layers maximum. During transport, keep the instrument panel facing upward to prevent impact damage.
2. Storage Requirements: Store in a dry, dust-free, well-ventilated indoor environment free from corrosive gases. Without wooden packaging, stacking is prohibited; place with the panel facing upward. Place moisture-proof materials under the equipment base to prevent performance degradation due to dampness.
