Portable Multi Channel Partial Discharge Simulator For Calibrating Pd Meter

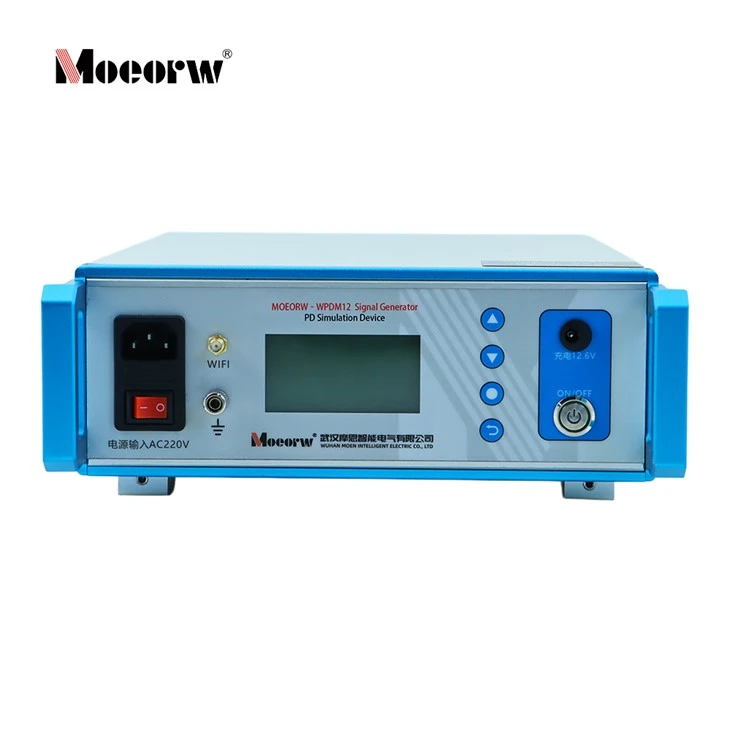

The MOEORW-WPDM12 Partial Discharge Simulator is a professional-grade, multi-functional PD signal generator engineered to simulate real-world insulation defects in electrical equipment. Fully compliant with advanced industry test guidelines, this device generates high-precision simulation pulses across multiple frequency bands, enabling engineers to test, calibrate, and verify the sensitivity of various Partial Discharge Detectors.

Whether used for substation field verification, sensor commissioning, or laboratory training, the MOEORW-WPDM12 provides an indispensable asset for predictive maintenance in power grids.

📡 Ultimate Multi-Channel Output: Features dedicated physical ports for UHF, HF, TEV, AE, and background noise simulation.

⏱️ Ultra-Fast Rise Time: Delivers high-speed simulation pulses with a rise time of ≤300 ps, mimicking actual steep-fronted insulation breakdown pulses.

🔋 Dual-Power Versatility: Supports both standard AC 220V power and built-in 12.6V lithium-battery operation for unrestricted field testing.

🎛️ Intelligent Phase Synchronization: Equipped with internal and external synchronization choices (Internal 50Hz frequency adjustment available).

📶 Wireless Expandability: Features built-in WIFI capabilities to support future smart communication and wireless controls.

This universal calibration tool is optimized for global power utilities, testing laboratories, and high-voltage equipment manufacturers.

Key Global Application Scenarios:

PD Detector Calibration: Verifying online and offline PD monitoring systems according to international IEC 60270 frameworks.

Substation Asset Verification: Simulating real defects to test the accuracy of sensors mounted on GIS (Gas Insulated Switchgear), power cables, transformers, and switchgears.

Smart Grid Diagnostics: Field troubleshooting using localized high-frequency, ultrasonic, and transient earth voltage (TEV) methods.

R&D and Academic Training: Serving as an artificial PD source for high-voltage engineering labs and quality inspection centers.

The MOEORW-WPDM12 accurately replicates the 4 major types of insulation defects and background noise patterns, allowing users to easily train AI diagnostic algorithms or verify phase-resolved partial discharge (PRPD) patterns:

• Corona Discharge : Generates concentrated pulses primarily on the negative half-cycle of the voltage period.
• Surface Discharge : Simulates asymmetrical pulses, where one half-cycle features significantly larger pulse amplitudes than the other.
• Floating Electrode Discharge: Replicates stable, identical symmetrical pulses appearing evenly in the 1st and 3rd quadrants.
• Void / Internal Discharge: Simulates unequal amplitude pulses across a period, maintaining general symmetry in the 1st and 3rd quadrants.
• Background Noise: Outputs stable, non-power-frequency-correlated background noise with a specific repetition rate to test the anti-interference filters of PD meters.

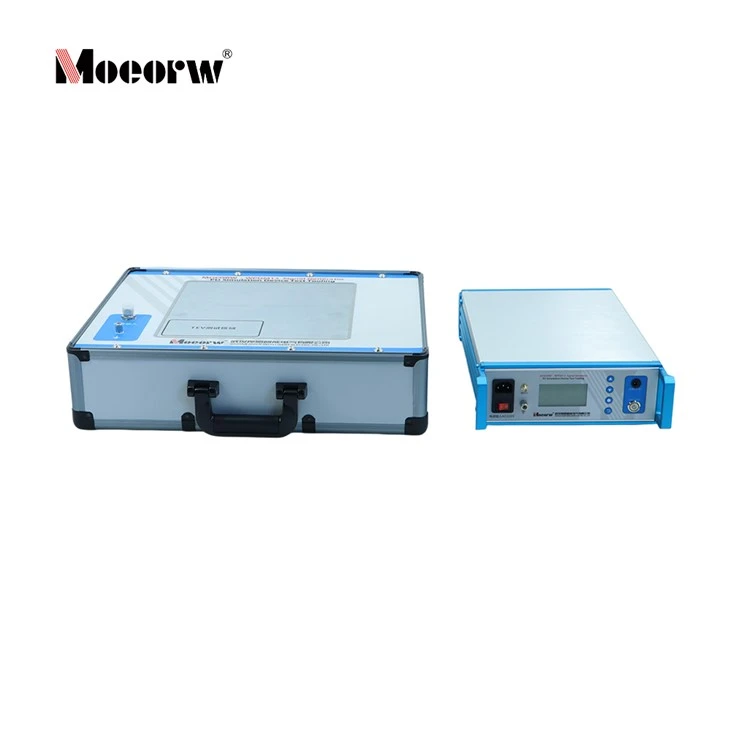

1. MOEORW-WPDM12 Main Unit x1

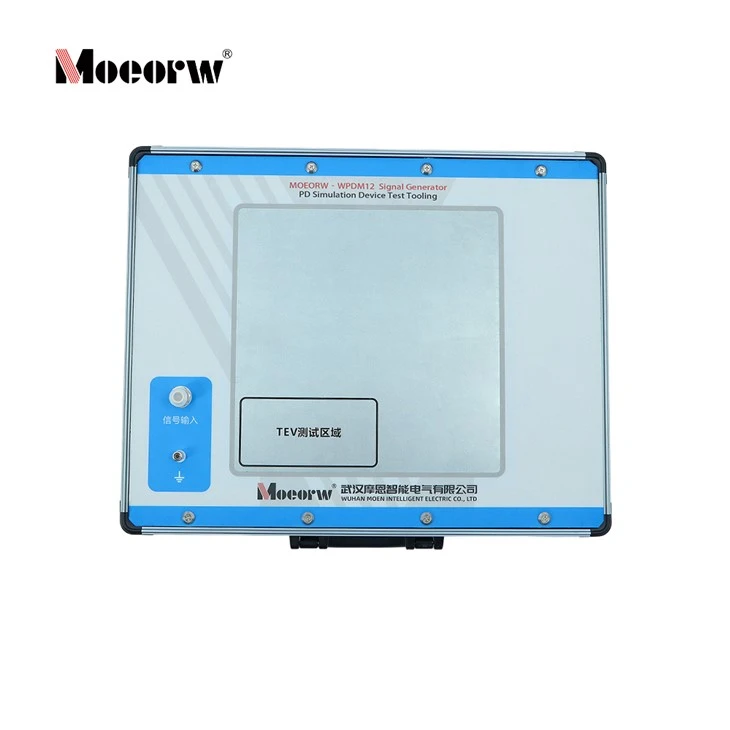

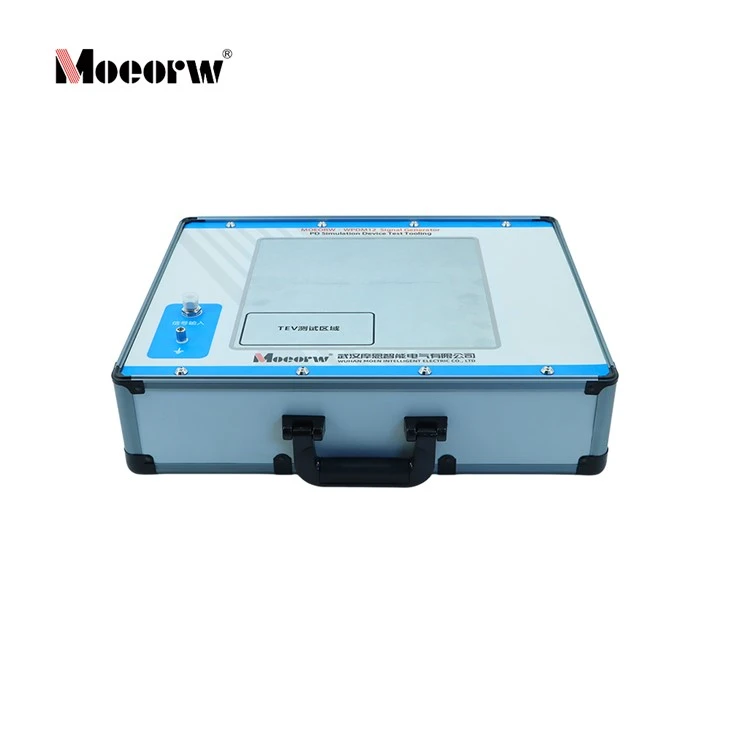

2. TEV Testing Simulation Rig x1
3. Standard Coaxial RF Connection Cables (BNC-N, BNC-Alligator Clips, BNC-M5) x1 Set
4. High-Voltage Protection Carrying Case x1
5. Factory Calibration Certificate & English Digital Manual x1

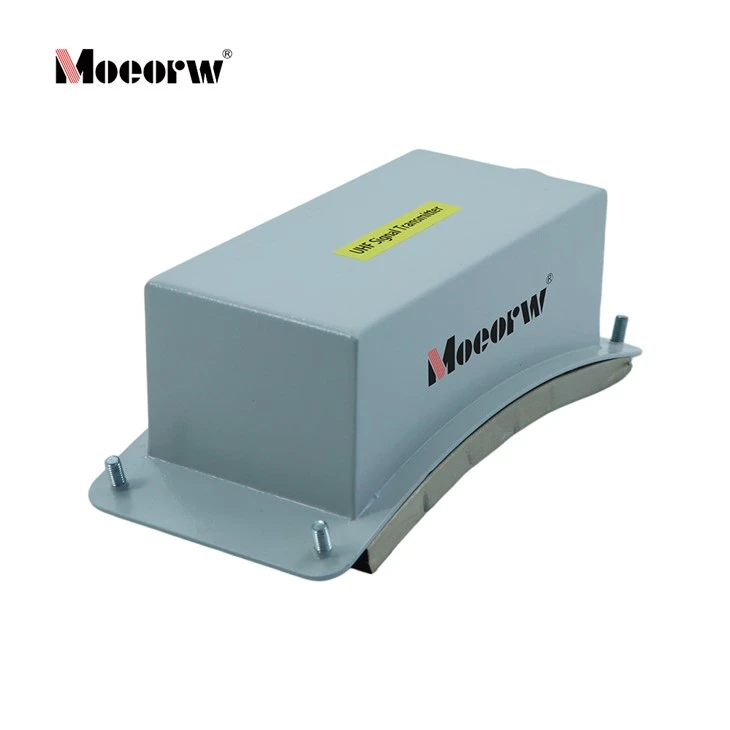

UHF Channel Testing: Use a BNC-to-N cable to connect the rear UHF port to the UHF sensor. Place the PD detector's sensor adjacent to the test fixture's sensor to verify UHF responsiveness.

HF Channel Testing: Use a BNC-to-Alligator Clips cable. Short-circuit the clips and pass them through the High-Frequency Current Transformer (HFCT) of your PD meter to inject simulation pulses.

TEV Channel Testing: Connect the unit to the specialized TEV test fixture using a BNC-to-N cable. Press the PD meter's TEV sensing face firmly against the designated "TEV Test Area" on the fixture box.

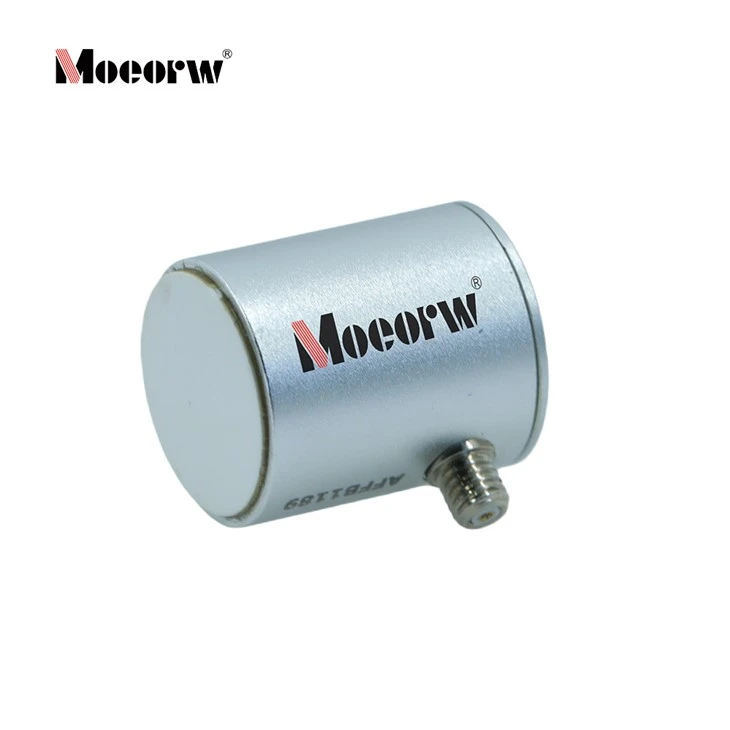

AE (Acoustic/Ultrasonic) Testing: Connect the BNC-to-M5 cable to the ultrasonic transducer. Secure both the simulator's transducer and the PD meter's AE probe onto the fixture panel using silicone gel to ensure seamless acoustic coupling.

The MOEORW-WPDM12 is strictly engineered, manufactured, and inspected according to global electric power grid directives and electronics measurement criteria:

IEC 60270 Compliant: Aligns with international standards for high-voltage partial discharge measurements.

GB/T 6593: Meets quality inspection rules for electronic measuring instruments.

High-Voltage Grid Testing Guidelines: Modeled after standard field application guides for High Frequency (HF), Ultra-High Frequency (UHF), and Ultrasonic (AE) live-line detection technologies on GIS, transformers, and cables.
