Switchgear Online Partial Discharge Monitoring System
Details
MOEORW-W5086KC is a 3-channel online partial discharge monitor for 10kV/35kV switchgear. It supports UHF/TEV/AA/HFCT detection with magnetic non-intrusive installation. Equipped with PRPD/PRPS spectrum and phase-correlation algorithm, it ensures high anti-interference. Dual communication and wide temperature make it ideal for 24/7 insulation condition monitoring.
Category
Online Monitoring Testing Equipment
Share to
Description

Product Introduction



MOEORW-W5086KC is an independent multi-channel on-line monitoring device designed for medium-voltage switchgear. It adopts UHF, TEV and AA sensing technologies to realize synchronous detection of partial discharge signals, supporting POE power supply and non-intrusive installation. Equipped with PRPD/PRPS spectrum analysis and phase correlation algorithm, it accurately identifies insulation defects and reduces false alarms.



Product Parameter (specification)



1. Partial Discharge Data Collector

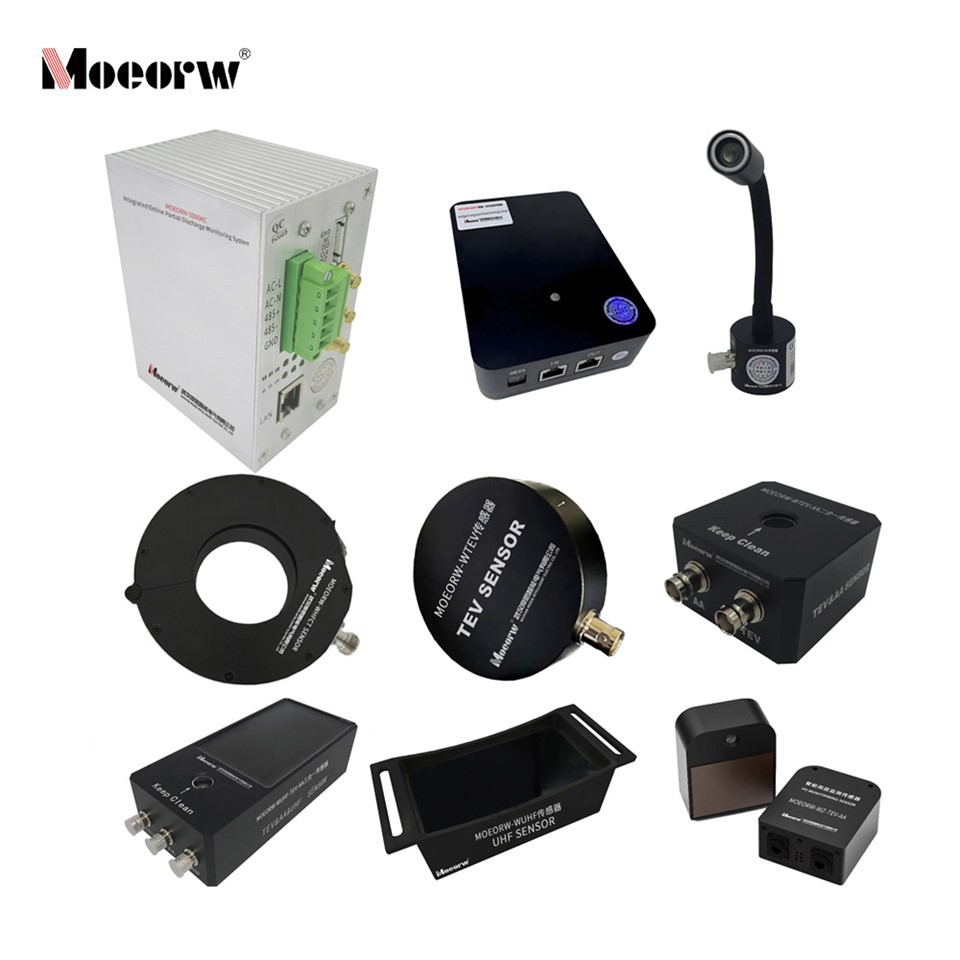

Channels 3 channels, supporting AA, TEV, UHF sensors in any combination
Detection sensitivity ±1 dB
Dynamic range 60 dB
Signal bandwidth TEV: 3 MHz – 100 MHzUHF: 300 MHz – 1500 MHzAA (Airborne Ultrasound): Center frequency 40 kHz
Power supply PoE / 220V AC/DC
Communication RJ45 (TCP/IP), RS485 (Modbus-RTU)
Operating temperature -40°C ~ +85°C
Ingress protection IP7



2. Sensor Parameters

Intelligent UHF Sensor
Frequency band 300 MHz – 1500 MHz
Sensitivity -70 dBm ~ -10 dBm
Mounting Magnetic
IP rating IP65
Operating temperature -20°C ~ 80°C
Intelligent AA (Ultrasound) Sensor
Center frequency 40 kHz
Linearity ≤ ±20%
Mounting Magnetic, flexible probe
IP rating IP65
Operating temperature -20°C ~ 80°C
Intelligent HFCT Sensor
Principle Rogowski coil
Frequency band 1 MHz – 30 MHz
Transfer impedance ≥ 8 Ω
Sensitivity <5 pC
Structure Openable ring, ID 65 mm / 45 mm optional
IP rating IP68
Intelligent TEV Sensor
Frequency band 3 MHz – 100 MHz
Mounting Magnetic
Housing Aluminum alloy, epoxy filled
IP rating IP65
Operating temperature -20°C ~ 80°C
TEV + AA 2-in-1 Sensor
TEV band 3M – 100M
AA band 40 kHz
Dynamic range 60 dB
Mounting Magnetic
Operating temperature -40°C ~ 85°C
TEV + UHF + AA 3-in-1 Sensor
UHF 300 – 1500 MHz
TEV 3M – 100 MHz
AA 40 kHz
Dynamic range 60 dB
IP rating IP67
Operating temperature -40°C ~ 85°C



3. Software & Communication

Modbus-RTU
Baud rate 115200
Data format 8 data bits, no parity, 1 stop bit
Slave ID Default 1
TCP/IP
Default IP 192.168.0.251
Port 10500, 10501
Mode TCP Server
Default Alarm Thresholds
Yellow warning 20 dB
Red warning 40 dB
Pulse count threshold 400 pulses/sec



Product Features



  • 3-channel simultaneous measurement, compatible with UHF/TEV/AA/HFCT sensors
  • Magnetic-mounted sensors, installed outside the cabinet without power outage
  • Dual communication: TCP/IP for spectrum data, Modbus-RTU for characteristic data
  • Wide operating temperature: -40℃ to +85℃, protection class up to IP67
  • Suitable for 10kV/35kV switchgears, distribution stations and industrial power systems



Product Application



  • 10kV / 35kV indoor and outdoor switchgears
  • Power distribution rooms and industrial power distribution cabinets
  • Urban power distribution stations and industrial parks
  • Newly built, renovated and intelligent reconstruction projects



Company Qualifications





FAQ



Q: What sensors does 5086KC support?

A: It supports UHF, TEV, AA and HFCT sensors in flexible combination.

Q: Does installation require power cut?

A: No. All sensors are magnetic-mounted outside the cabinet.

Q: What communication methods are available?

A: RJ45 (TCP/IP) for spectrum data and RS485 (Modbus-RTU) for characteristic values.

Q: What is the operating temperature range?

A: -40℃ to +85℃, protection class up to IP67.

Q: Can it distinguish real PD from interference?

A: Yes. Built-in phase-correlation judgment greatly improves anti-interference ability.
