Product Introduction

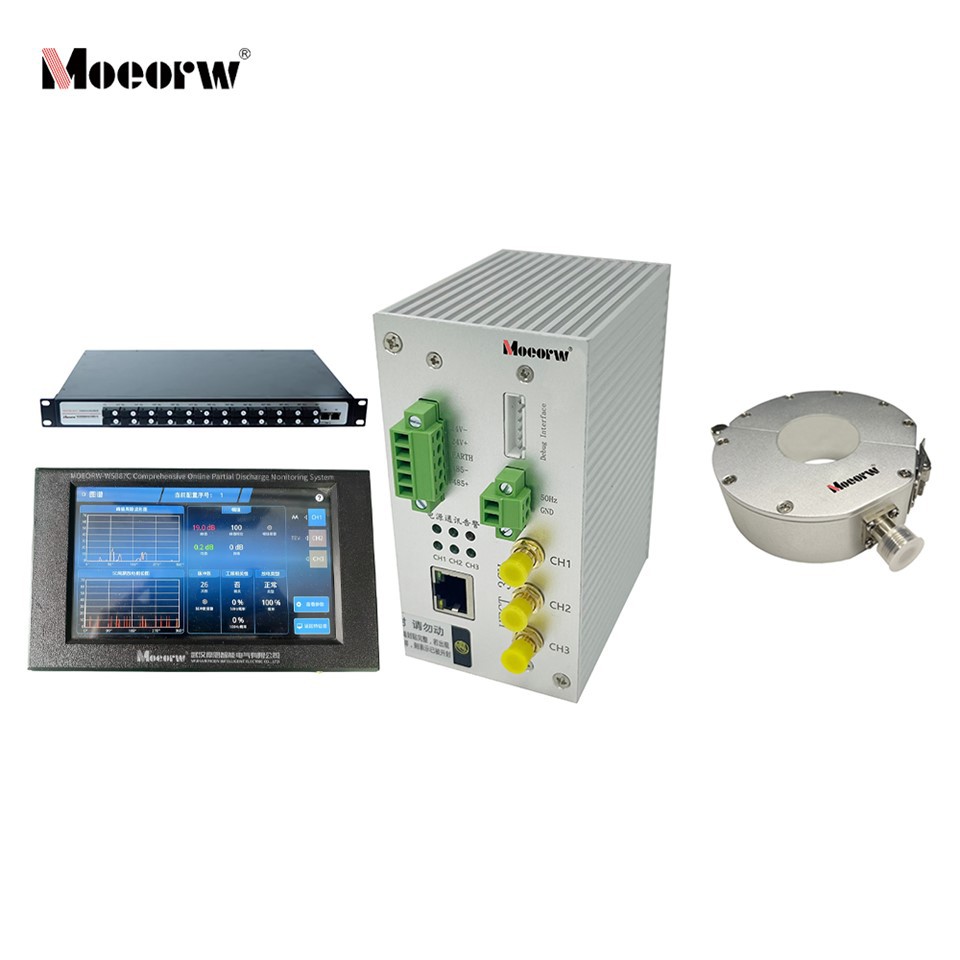

MOEORW-W5087C is a specialized monitoring unit for high-voltage cables and cable joints. It adopts high-frequency current transformer (HFCT) based on Rogowski coil principle to capture weak discharge pulses on grounding wires. With compact structure and high sensitivity, it is ideal for long-term on-line monitoring of cable insulation status.
Product Parameter (specification)
| Channels | 3-channel parallel measurement |
| Detection Sensitivity | ±1 dB (for all channels) |
| Detection Dynamic Range | 60 dB |
| Detection Signal Bandwidth | High-Frequency Current (HFCT): 3 MHz – 30 MHz |
| Power Supply | 220 V AC or 24 V DC (Selectable) |
| Synchronization | Supports Power Frequency Synchronization |
| Communication Interfaces | RJ45, RS485 |
Product Features and Applications
- 3-channel HFCT signal acquisition dedicated for cable discharge detection
- Open-close sensor structure, quick installation without disconnecting ground wires
- Sensitivity <5pC, 60dB dynamic range, reliable for minor discharge detection
- Optional 220V/24V power supply, natural cooling, weight <500g
- Suitable for high-voltage cables, cable terminals, GIS grounding circuits
Product Application
- High-voltage power cables and cable terminal joints
- Cable trenches, box-type substations and distribution stations
- GIS grounding circuit PD detection
- Cable line intelligent monitoring and condition maintenance
Company Qualifications
FAQ
Q: What is the core detection method?
A: It uses HFCT (high-frequency current transformer) for cable grounding pulse detection.
Q: Is sensor installation intrusive?
A: No. Open-close structure enables quick installation without disconnecting ground wires.
Q: What is the detection sensitivity?
A: Sensitivity is＜5pC, dynamic range 60dB.
Q: What power supply options are supported?
A: 220V AC or 24V DC is optional.
Q: What is the device weight?
A: Less than 500g (without sensors), suitable for compact spaces.
