Recently, Wuhan Moen Intelligent Electric Co., Ltd. has launched a customized one-stop comprehensive testing solution for power safety tools and instruments, built on its MOEORW series of customizable testing equipment. The company has successfully completed full customized preventive tests covering five major categories: ladders, insulating rods, conductive shoes, shielding clothes, and grounding wires.
Centered on standards, customer needs, and scenario adaptation, the whole solution realizes full-link customization in equipment functions, testing procedures, and data management, fully demonstrating Moen's core advantage of standardized products plus customized services.
All tests are carried out in strict accordance with national and industrial standards such as DL/T 1476-2023, DL/T 976-2017, and GB/T 6568-2008. According to the user's on-site requirements including station quantity, voltage level, data connection, and operating habits, Moen has customized and adapted five core pieces of equipment to achieve one test, one set of procedures, full compliance, efficiently solving pain points of multi-category, high-frequency, and standardized testing for power operation, construction, and tool manufacturing enterprises.
1. Customized Ladder Static Load Testing Solution

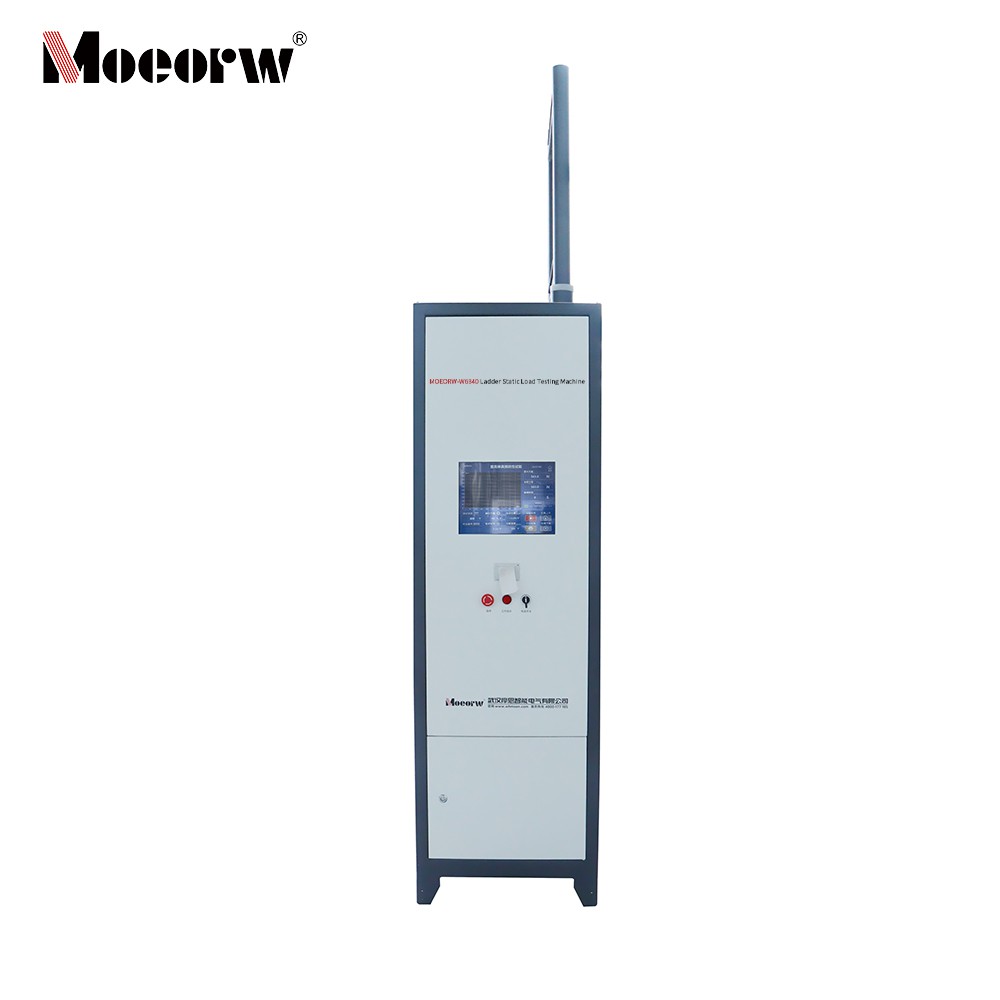

MOEORW-W6840 Ladder Static Load Testing Machine
Customized for mixed-type ladder testing, customizable load, and limited space:
- Max load customizable up to 5kN, supporting non-standard tests for rigid ladders, flexible ladders, ladder stools, and fast-assembly scaffolding.
- Customized step clamps and connecting chains fit different ladder specifications.
- Integrated control cabinet saves lab space for compact layouts.
- Custom data interfaces support direct connection to user management platforms for automatic data upload.
- The system automatically loads, holds, judges, and prints results with stable and reliable performance.
2. Customized Insulating Rod Withstand Voltage Testing Solution

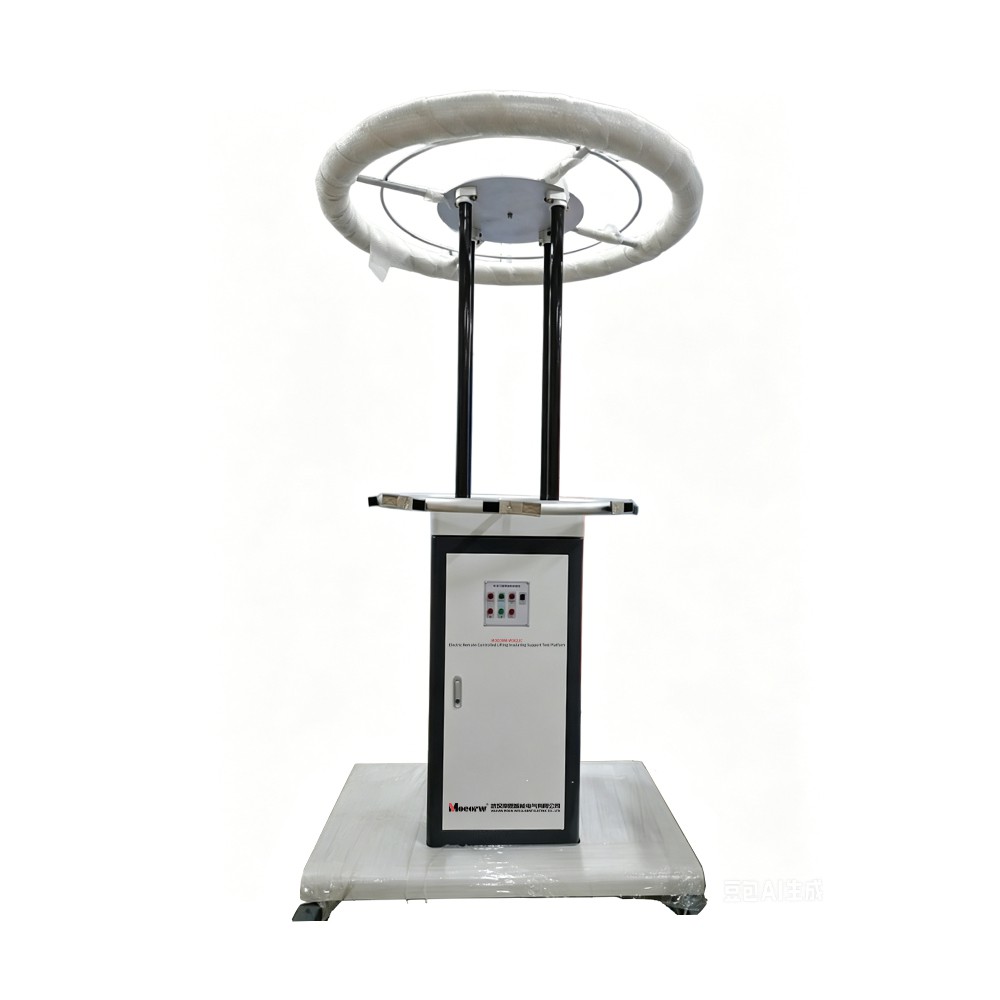

MOEORW-W362JC Electric Remote-Control Lifting Insulating Bracket Test Bench
Customized for 10kV–220kV multi-voltage levels, expandable stations, and remote control:
- Rated voltage customizable up to 250kV for 110kV/220kV full‑section insulating rod tests.
- 8 stations expandable to 16 for high‑efficiency batch testing.
- Dual control: remote control + push-button for unmanned and remote operation.
- Electrode distance customizable 400–1300mm for various sample lengths.
- The system automatically boosts, holds, and reduces voltage with no flashover or breakdown, doubling testing efficiency.
3. Customized Conductive Shoe Resistance Testing Solution

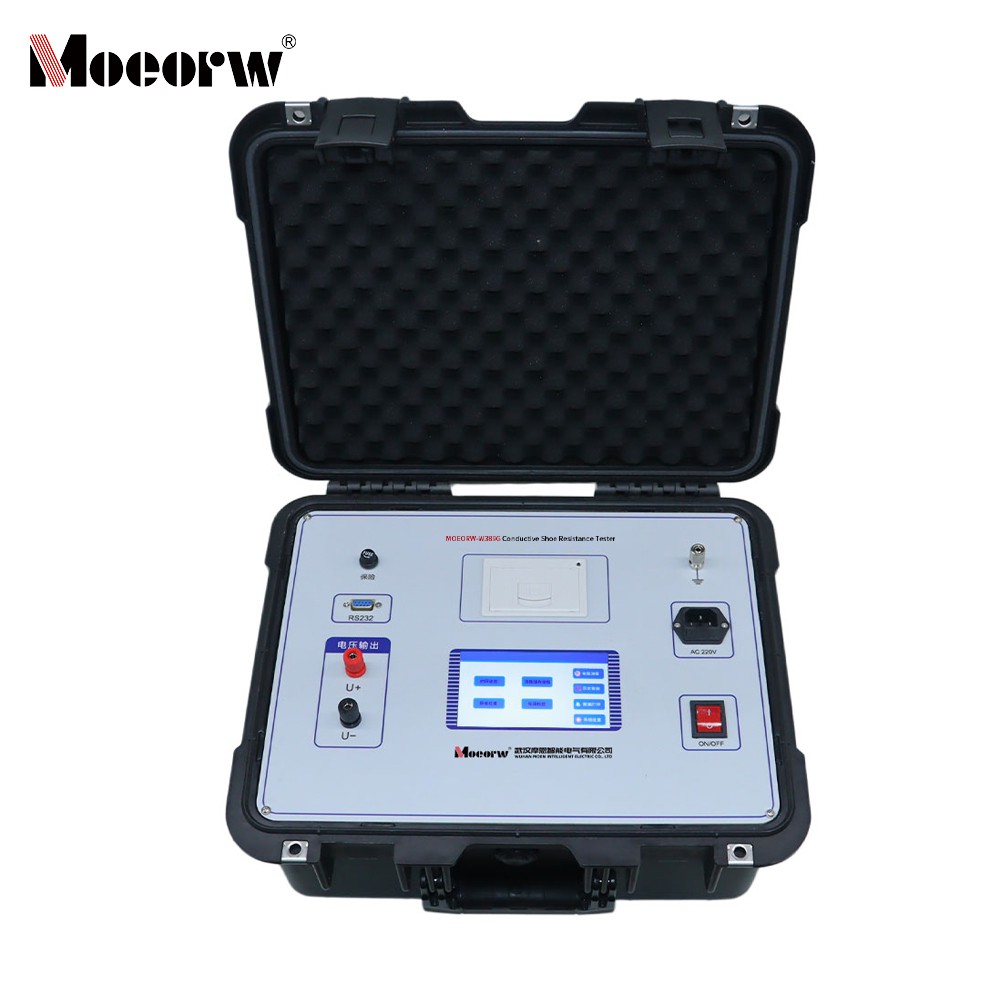

MOEORW-W389G Conductive Shoe High-Resistance Tester
Customized for rapid screening, batch testing, and portable data export:
- Test voltage customized to DC 100V, measuring range 20Ω–999.9kΩ.
- One-key test and automatic judgment for simplified operation.
- Dual output: built-in printer + U-disk export for on-site report generation.
- Lightweight and compact design for mobile field testing.
- Accurately measures resistance and judges compliance with ≤500Ω standard.
4. Customized Shielding Clothing Shielding Efficiency Testing Solution

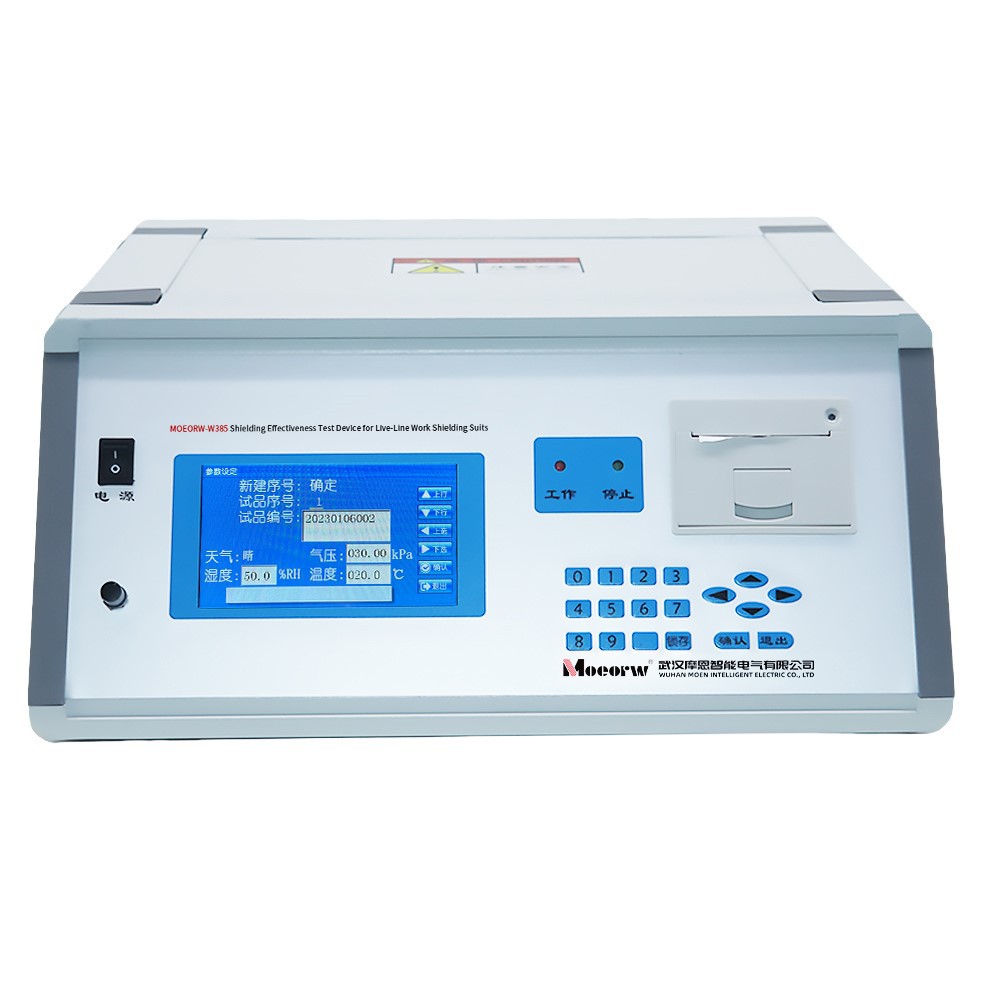

MOEORW-W385 Shielding Efficiency Test Device for Live Working Shielding Clothes
Customized for batch fabric testing, environmental adaptation, and automatic reporting:
- Standard brass electrodes and insulating plates ensure test consistency.
- Custom temperature/humidity linkage automatically records test conditions.
- Automatically calculates shielding efficiency (SE) and generates customized reports.
- Supports custom sample quantity and test positions for random batch inspection.
- Provides accurate average results with compliant and traceable reports.
5. Customized Grounding Wire Group Resistance Testing Solution

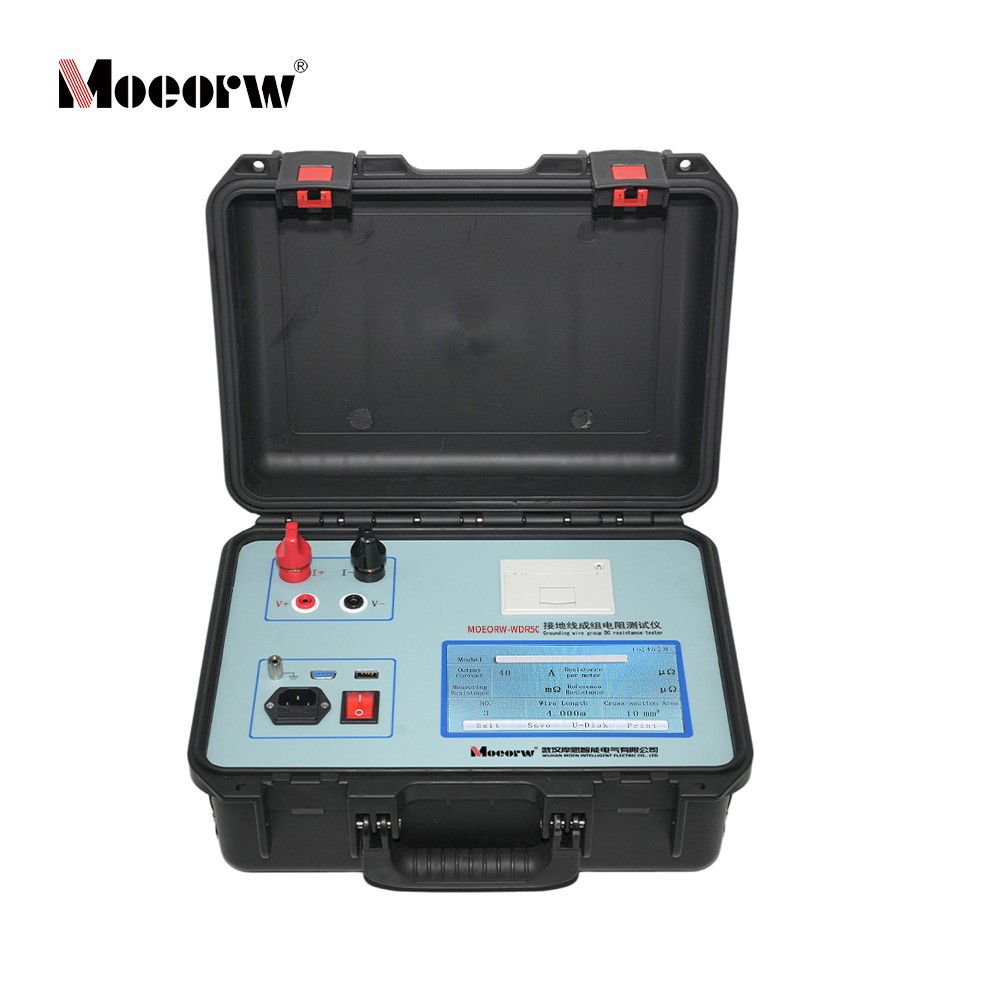

MOEORW-WDR50 Grounding Wire Group Resistance Tester
Customized for high-current testing, mobile APP control, and cloud data management:
- 30A/40A/50A customizable test current, resolution 0.1μΩ.
- Custom Bluetooth/APP remote control for full mobile operation.
- Stores up to 1000 records; supports U-disk and cloud upload.
- 7-inch touchscreen with customizable Chinese/English interface.
- Quickly measures resistance, auto-compares reference values, and manages data efficiently.
Core Advantages of Customized Solutions
- Deeply Adapted to Needs：Full customization from voltage, range, stations to interfaces, operation, and reports.
- Strictly Standard-Compliant：All customized solutions meet national and industrial standards for valid and legal test results.
- One-Stop Integrated Process：Multi-equipment coordination and unified procedures for full-category testing in one deployment.
- Seamless Data Connection：Supports platform upload, cloud management, and customized reports for digital management.
- Flexible Scenario Application：Suitable for laboratory, on-site mobile, and factory batch testing.
Brand Value
Wuhan Moen Intelligent Electric specializes in R&D and manufacturing of power safety tool testing equipment. With standardized products as the foundation and customized solutions as the core, we provide personalized, integrated, and intelligent testing solutions for global power users.
The successful implementation of this customized comprehensive test further proves the strong customizable, collaborative, and expandable capabilities of the MOEORW series, which can precisely match testing demands of different users, scenarios, and scales, supporting safer, more efficient, and reliable preventive testing of power safety tools.
In the future, Moen will continue to focus on customer needs, strengthen customized services, and safeguard the safe and stable operation of power systems with professional technology and high-quality products.
