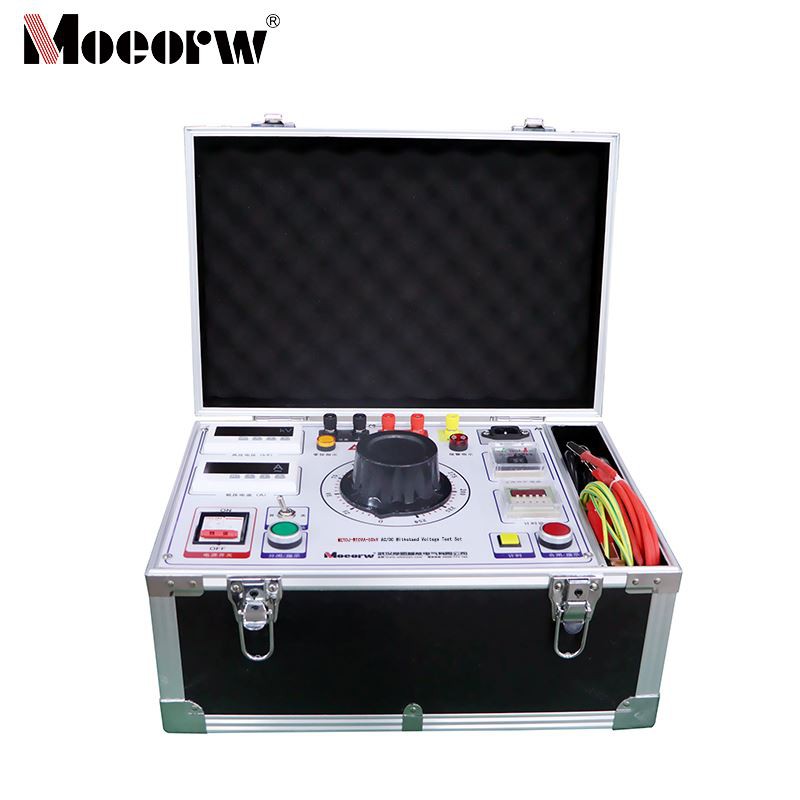

10kVA 50kV AC DC Hipot Test Set

Product Introduction

The Ministry of Machinery and Electronics' "Test Transformers" standard is the basis for the production of the MEYDJ-W10kVA-50kV Power Frequency AC/DC Withstand Voltage Test Device, which incorporates significant advancements over earlier comparable products. A new product line called the TDM(G) series lightweight AC/DC high-voltage test transformers was created from the MEYD(G) series test transformers and improved in accordance with the national standard "ZBK-41006-89." Compact size, light weight, integrated structure, extensive functionality, high adaptability, and easy operation are characteristics of this series. Insulation strength tests under power frequency or DC high voltage on various high-voltage electrical equipment, electrical components, and insulating materials are especially appropriate for power systems, industrial and mining firms, and research organizations. It is a necessary piece of equipment for testing at high voltages.

Product Parameter (specification)

Product Model	MEYD-W10kVA/50kV
Equipment Type	Light Oil-immersed Test Transformer (Single-phase)
Connection Group Designation	I.I
Rated Capacity	10kVA
Rated Output High Voltage	50kV (RMS)
Input Power Supply	380V (Power Frequency, as input voltage for 10kVA and above models is 380V)
Primary Winding Input Voltage Range	Adjustable from 0~400V via autotransformer in the accompanying control box
Output Type	Power Frequency High Voltage (MEYD series without high-voltage silicon stacks, AC output only; TDM (G) series can switch between AC and DC output via short-circuit bar)

Product feature and application

1. Compact Design:

Small footprint and lightweight for easy transportation and installation;

2. Optimized Structure:

Single-frame core design with coaxial winding arrangement ensures strong coupling;

3. Versatile Functionality:

Suitable for AC/DC high-voltage insulation strength testing with broad applicability;

4. User-friendly operation:

Can be used individually or in cascaded configurations with complete supporting equipment;

5. Safe and reliable:

Features comprehensive grounding and overvoltage protection design.

Prodection details

It is essential equipment for power supply companies, large factories, metallurgical plants, power plants, railways, and other entities requiring electrical maintenance departments.

Company Qualifications

FAQ

1)What are the applicable scenarios for the MEYD-W10kVA/50kV Power Frequency Withstand Voltage Test Device?

Answer: The MEYD-W10kVA/50kV power frequency withstand voltage test set belongs to the MEYD series of lightweight oil-immersed test transformers. It is particularly suitable for power systems, industrial and mining enterprises, research institutions, etc. It is primarily used for conducting insulation strength tests under power frequency or DC high voltage on various high-voltage electrical equipment, electrical components, and insulating materials. It is an indispensable and important piece of equipment in high-voltage testing.

2)What are the grounding requirements for the second and third stage test transformers when conducting cascaded tests using the MEYD-10kVA/50kV power frequency withstand voltage test set?

Answer: During cascaded testing, the X terminals of the low-voltage windings, the F terminals of the measuring windings, and the X terminals (high-voltage tails) of the high-voltage windings for the second and third-stage test transformers must all be connected to the housing of the respective stage's test transformer. Additionally, the housings of the second and third-stage test transformers must be grounded via insulating supports.

3)When conducting power frequency withstand voltage tests with the MEYD-W10kVA/50kV power frequency withstand voltage test apparatus, how should abnormal conditions be handled?

Answer: During voltage increase or withstand voltage testing, if any of the following abnormalities occur-such as significant oscillation of the voltmeter needle, charred insulation or smoke emission, or unusual sounds from the test specimen-immediately reduce the voltage and disconnect the power supply. After stopping the test, investigate the cause. Upon test completion, return the voltage regulator to zero position at a steady rate within several seconds before disconnecting the power supply to ensure equipment and personnel safety.
