Product Introduction

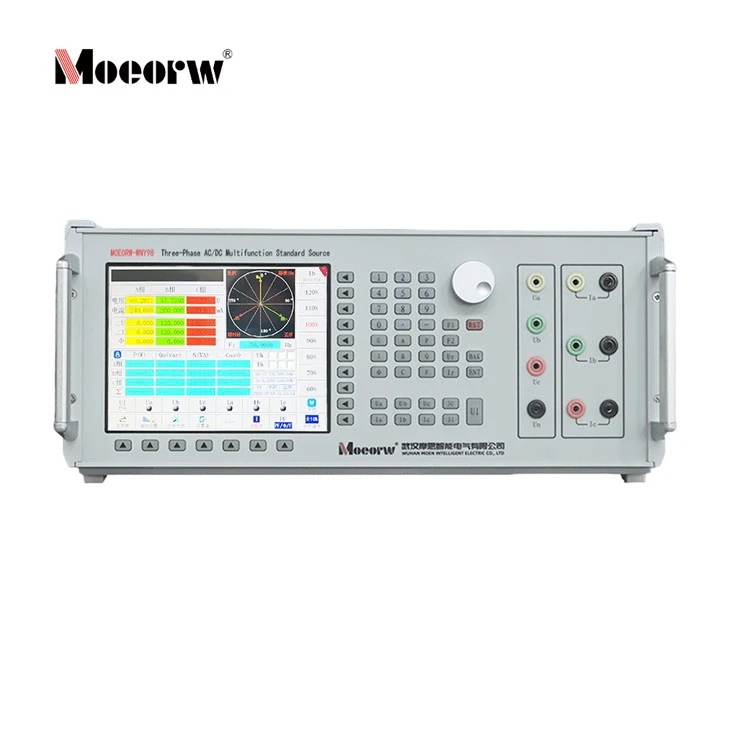

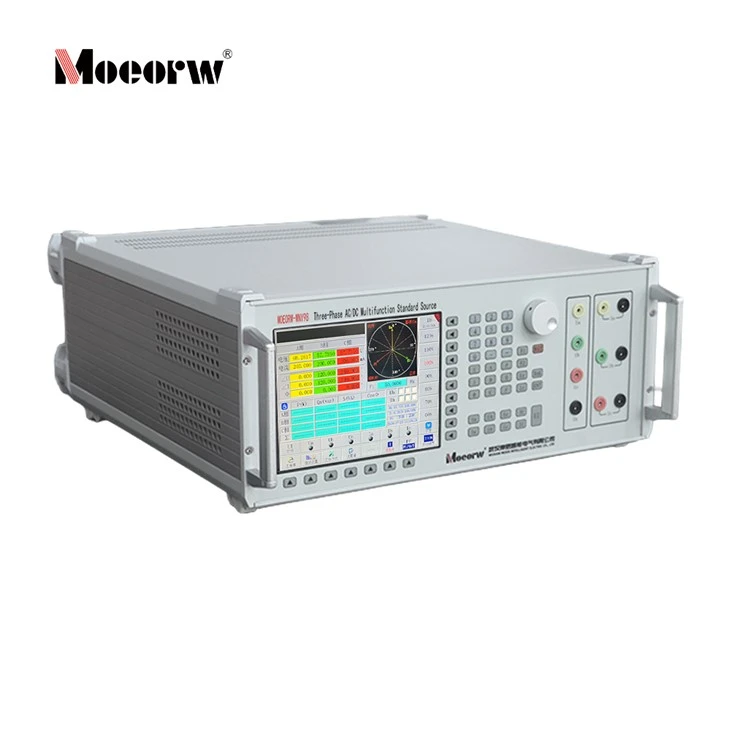

The MOEORW-WNY98 Three-Phase AC/DC Multi-Function Standard Source is an advanced, high-precision calibration instrument engineered for modern power grids, industrial automation testing, and metrology laboratories. Integrating cutting-edge digital sampling technology with state-of-the-art digital signal processing (DSP) methodologies, this equipment delivers ultra-stable, amplitude-adjustable, phase-adjustable, and frequency-adjustable three-phase AC power signals, alongside highly precise DC voltage, current, and power outputs.
Featuring an intuitive capacitive color touchscreen, physical panel keys, and rotary adjustment knobs, the device supports a wide range of operational preferences. Operating on a software-and-hardware dual closed-loop system, it ensures uncompromising accuracy and exceptional stability under diverse load characteristics (including high capacitive loads), making it perfectly suited for both controlled laboratory calibrations and rigorous on-site power tests.
Products Description
|
Parameter / Signal Type |
Range / Measurement Scales |
Accuracy / Tolerance |
Key Technical Specifications |
|
AC Voltage Output |
57.7V, 100V, 220V, 380V |
0.05% RG |
Max output power: 20VA per phase; |
|
AC Current Output |
0.2A, 1A, 5A, 20A |
0.05% RG |
Max output power: 25VA per phase; |
|
Phase Angle |
0° ~ 359.999° |
0.02° |
Features "Energy Metering" & "Relay Protection" directional modes |
|
Frequency Range |
40Hz ~ 70Hz |
0.001Hz |
High-precision tuning to adapt to global grid frequencies |
|
Active Power |
Derived from multi-phase values |
0.05% RG |
Stability: ≤0.05% / 3 minutes |
|
Power Factor |
-1.0 ~ 0 ~ +1.0 |
0.001 Accuracy |
Fine adjustment resolution: 0.0001 |
|
Harmonic Output |
2nd to 51st Harmonics |
Content setting: ±0.1% |
Phase control perfectly benchmarks against Fluke 6105A standards |
|
DC Voltage Output |
10mV, 200mV, 1V, 10V, 75V, 150V, 300V, 1000V (8 Ranges) |
0.02% RG |
Ripple: ≤0.5%; Stability: ≤0.02% / 2 minutes; |
|
DC Current Output |
100uA, 1mA, 10mA, 20mA, 100mA, 200mA, 1A, 5A, 25A (9 Ranges) |
0.03% RG |
Ripple: ≤0.5%; Stability: ≤0.02% / 2 minutes; |
|
Shunt / Hall Voltage |
75mV, 200mV, 1V, 5V |
0.03% RG |
Max output current: 30mA; Stability: ≤0.02% / 2 minutes; |
|
DC Measurements |
Voltage: ±10V Input range |
0.05% RG |
Dedicated rear terminals for shunt and transducer secondary signal validation |
|
Pulse Input / Output |
TTL Level Input (Max 2MHz); 5V±5% Standard Pulse Output |
High Resolution |
Rated AC output frequency: 60KHz; |
|
Physical Specs |
Size: 450mm × 520mm × 178mm |
Environmental Tolerance |
Operating temperature: 0℃ ~ 40℃; Humidity: ≤85%; |
Key Product Features
Dual AC/DC High-Precision Benchmarking: Delivers three-phase AC parameters (voltage, current, phase, frequency, power) and a comprehensive suite of DC signals (voltage, current, power, and low-voltage outputs for shunts/Hall sensors) from a single unit.
Advanced Harmonic Control (Perfect Fluke 6105A Realignment): Generates 2nd to 51st harmonics with arbitrary combinations of harmonic order, content rate, and phase angle. The phase control perfectly targets Fluke 6105A parameters, enabling precise non-linear load simulations.
Real-Time Waveform & Graphical Display: Captures and displays up to 32 electrical parameters simultaneously on a large color LCD. Supports real-time voltage vector diagrams and harmonic bar graphs, showing Crest Factors (CF), Ripple, and Telephone Harmonic Factors (THFF).
Specialized Waveform Simulation: Outputs non-sinusoidal waveforms including peaked waves, flat-top square waves, triangular waves, sawtooth waves, half-wave signals, and 90° phase-triggered waves.
Triple-Channel Independent Pulse Verification: Equipped with 3 independent energy pulse input/output ports, enabling the system to evaluate errors for up to 3 single-phase or three-phase AC energy meters concurrently.
Dual Open Communication Protocols & Secondary Development: Built-in RS232 and RS485 interfaces with full configurations up to 115200. The system supports both custom manufacturing protocols and the standard MODBUS protocol, completely open for third-party automated system integration.
Industrial Foot-Switch Interface: Built-in remote control ports support external foot-switches to trigger 3U/3I/UI signals instantly, enhancing throughput for assembly line operations and high-volume quality control departments.
Robust Fail-Safe Hardware Protection: Employs smart protection mechanisms that automatically cut off output and trigger pop-up window text alerts and acoustic alarms if a voltage short-circuit, current open-circuit, or incorrect wiring configuration is detected.
Comprehensive Product Applications
Electrical Measurement Instrument Calibration:
Digital and analog AC DC voltmeters, ammeters, and multimeters.
High-precision phase meters, frequency meters, power meters, and power factor meters.
Digital power monitoring instrumentation and calibration shunts.
Transducer & Sensor Metrology Verification:
Industrial voltage, current, active/reactive power, power factor, and frequency transducers.
High-precision instrument voltage transformers, current transformers, and clamp-on current sensors.
Smart Grid Control & IoT Power Equipment Testing:
Industrial IoT smart energy meters, multi-functional power meters, and integrated smart metering modules.
Smart measuring switches, intelligent circuit breakers, and electronic load management terminals.
Power data collectors, distribution automation terminals (FTU/DTU), and power loss timers.
Grid reactive power compensation controllers, voltage monitoring devices, and distribution load loggers.
Compliance & Metrological Standards
The MOEORW-WNY98 strictly satisfies and complies with the latest national regulations, industry technical codes, and international verification criteria within metrology:
JJG 597 Verification Regulation of Verification Equipment for AC Electrical Energy Meters
JJG 1186 Verification Regulation of Verification Equipment for DC Electrical Energy Meters
JJG 842 Verification Regulation of Electronic DC Electrical Energy Meters
GB/T 33708 Static Meters for DC Electricity
Q/GDW 1899 Calibration Specification for AC Sampling and Measuring Devices
JJF 1491 Calibration Specification for Digital AC Electrical Parameter Meters
JJF 1587 Calibration Specification for Digital Multimeters
Q/GDW 12174 Technical Specification for Smart Measuring Switches
FAQ
Q1: How does the harmonic output capability of the MOEORW-WNY98 compare to standard laboratory calibrators?
A1: The MOEORW-WNY98 supports highly configurable 2nd to 51st harmonic injection where harmonic order, content percentage, and initial phase are fully independent. Critically for advanced power quality modeling, its harmonic phase architecture is specifically engineered to perfectly match Fluke 6105A standards, providing high-fidelity distortion simulation at a highly accessible price point.
Q2: What is the benefit of the 4-wire remote sensing connection on the DC voltage output?
A2: Under high-load test conditions, line voltage drops along connecting leads can introduce severe measurement errors. The MOEORW-WNY98 addresses this by offering a 4-wire terminal system (U+/U- for primary driving current, and R+/R- for feedback sampling), allowing the internal amplifier loops to compensate for lead resistance and maintain exact voltage accuracy directly at the device-under-test (DUT) terminals.
Q3: Can this equipment be integrated into a larger automated production line software system?
A3: Yes. The unit is equipped with high-speed RS232 and RS485 communication ports. To eliminate vendor lock-in and minimize development times, the device opens up two protocols: a proprietary manufacture command protocol and a standard industry MODBUS protocol, allowing automation engineers to perform seamless secondary development and SCADA integration.
Q4: How does the device handle protective shutdown if an operator accidentally shorts out a high-voltage connection?
A4: Safety is maintained through hardware and software real-time monitoring. If a voltage short-circuit, current open-circuit, or severe phase miswiring occurs, the internal dual closed-loop system senses the impedance fault instantly, kills all analog outputs within milliseconds, and triggers an acoustic alarm along with an on-screen modal notification.
