DC Ground Fault Finder

Portable DC Ground Fault Locator

The portable DC ground fault locator employs a high-precision current clamp meter to detect and pinpoint faults by measuring the DC current differential within the faulty circuit. By integrating fast FFT technology into DC fault detection equipment, it can identify various insulation faults, DC cross-conduction faults, and AC cross-conduction faults across all voltage levels (24V, 48V, 110V, 220V) in DC systems. This instrument features high detection sensitivity, strong anti-interference capability, compact size, light weight, and user-friendly operation. When locating DC system ground faults, it requires no power disconnection and enables precise grounding point localization. The device measures DC system grounding resistance values and determines grounding direction, providing a reliable, high-accuracy detection tool for locating and pinpointing ground faults in power DC systems.

As power systems demand increasingly stringent safety requirements for operation, the need for advanced DC fault detection capabilities will grow. Consequently, high precision and insulation trend analysis will become fundamental requirements for the next generation of portable DC ground fault locators in power systems.

The new portable DC ground fault locator, based on the principle of DC current differential detection, incorporates rapid FFT transformation technology. By conducting a detailed analysis of the amplitude-frequency characteristics of the measured quantities, it balances the conflicting demands of safety and sensitivity in DC ground fault location. This advancement elevates DC ground fault detection technology to a new level, offering broad application prospects.

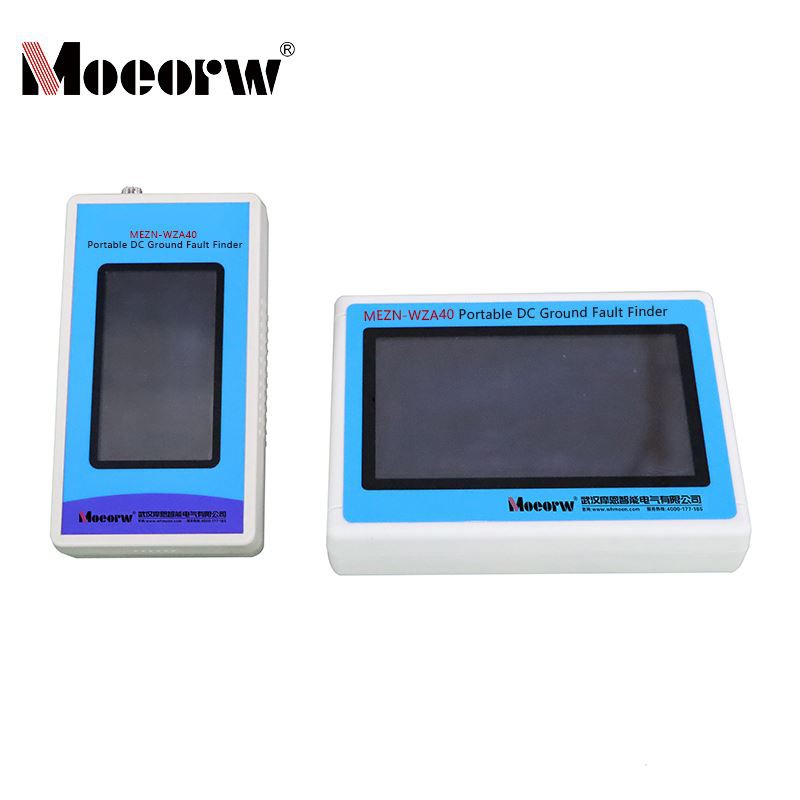

1. This instrument consists of a signal transmitter (analyzer) and a receiver (locator). The analyzer draws power directly from the busbar, eliminating the need for external AC or battery power, making operation more convenient;

2. It resolves all grounding faults, including:

- Poor insulation causing phantom grounding

- High-resistance grounding

- Multiple-point grounding

- Single-point grounding

- Low-resistance grounding

- Direct grounding

- Mixed-line grounding

- Loop grounding

- Capacitive grounding

- AC leakage grounding

- Transistor isolation grounding

3. Completely eliminates DC system grounding faults. Unaffected by large distributed capacitance in the field, it accurately pinpoints and locates faults within the smallest possible area.

4. Accurately indicates the direction of the grounding signal current, enabling rapid identification of the fault point;

5. Provides voice announcements regarding grounding status and direction;

6. Precisely detects the magnitude and phase of line leakage current, rapidly and accurately locating the fault point based on sudden changes in leakage current magnitude and phase before and after the fault location;

7. A single DC grounding analyzer serves all DC systems below 300V, with no additional special requirements for DC voltage;

7. Fully touchscreen intelligent design for enhanced usability; no button controls required. Maximum signal source current <800μA with built-in current limiting protection, ensuring no impact on relay protection, automation devices, or operating circuits for safe operation;

8. Ripple analysis and digital oscilloscope functionality: Utilizes spectrum analysis to eliminate various interference signals and view waveform information of detection signals and circuits;

9. Intelligent current clamp automatically detects open/closed status, compatible with both large and small jaw sizes;

10. Adaptable to ground faults caused by AC/DC cross-conduction, ring network supply grounding, diode-isolated supply grounding, and high-resistance grounding;

11. Resolves same-pole/different-pole DC cross-conduction faults and identifies the faulted branch;

12. Supports station power supplies with varying specifications and ground capacitance, measuring busbar capacitance values;

13. Rapidly locates ground faults without installation, power outages, disconnecting wires, or insulation testing;

14. User-friendly smart touch interface for simple operation, premium packaging for convenient portability.

MEZN-WZA40 Portable DC Ground Fault Locator is designed for troubleshooting DC system faults across various power scenarios, with core applications including:

- DC operating power systems in power plants and substations, resolving busbar and branch grounding/cross-fault issues;

- Industrial enterprise distribution rooms and DC power panels, detecting insulation faults and AC cross-firing at 24V-280V voltage levels;

DC power supply systems in rail transit and communication base stations, rapidly locating complex ground faults such as high-resistance, multi-point, or mixed-line faults;

Various station power supplies and battery-powered systems, accommodating different ground capacitance specifications to perform fault detection without power interruption;

Power operation and maintenance sites, safely investigating grounding hazards in DC circuits related to relay protection and automation devices (without affecting equipment operation).
