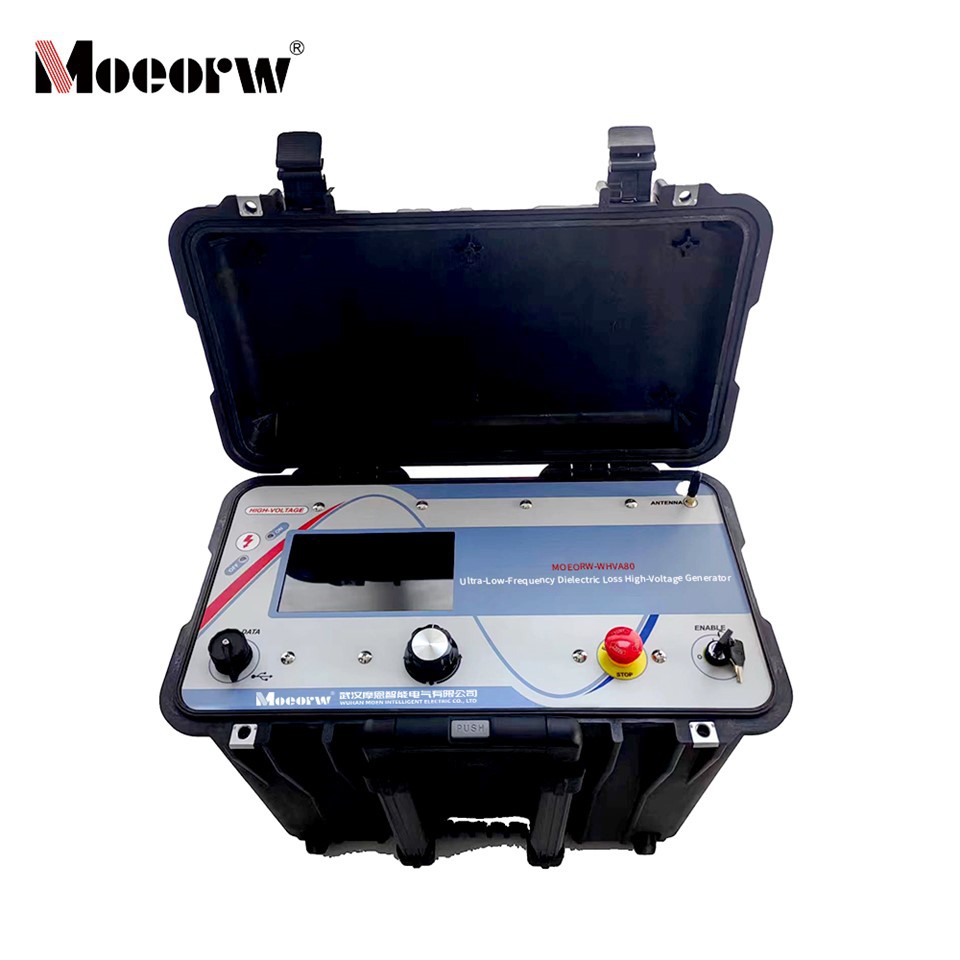

MOEORW- WHVA80 80kV VLF Tester With Tan Delta
The MOEORW-WHVA80 VLF Tester With Tan Delta is suitable for insulation withstand voltage and dielectric loss testing of large capacitor electrical equipment. It is a dedicated device for preventive insulation testing of electrical equipment.
VLF Hipot Tester With Tan Delta can perform handover and preventive testing of 35kV and below power cables, large and medium-sized generators/motors, and power capacitors.
Product Introduction
Our company's new generation of 0.1Hz VLF dielectric loss high voltage generators utilizes the latest power electronic components and microcontroller technology, further reducing the size and weight of the equipment. It features user-friendly operation, more stable performance, and overcomes the shortcomings of the first-generation mechanical step-up transformers, such as short lifespan, high failure rate, and large size. Years of practical experience and extensive user feedback have demonstrated that this series of ultra-low frequency high voltage technologies is leading nationwide and offers excellent value for money!
Product Parameter (specification)
|
Model |
MOEORW- WHVA80 |
|
power supply voltage |
100-240V; 50/60Hz; ±10% |
|
Input power |
400VA |
|
Output voltage [Max.] |
VLF Sinewave: 46 kVrms (RMS), 65 kVPeak (Peak) VLF Squarewave: 65 kV DC [+/-]: +65 kV / -65 kV |
|
Output voltage [Max.] |
Sinewave: 10mArms Squarewave/DC[+/-]: 14.5mA |
|
Output frequency |
0.01Hz-0.1Hz in 0.01Hz increments |
|
Frequency optimization |
have |
|
Output load capacity |
At rated voltage of 0.1Hz: 0.5µF; at low frequency or low voltage: 12µF |
|
Measurement |
Current resolution: 1µA±1% Voltage resolution: 0.1kV±1% Capacitor resolution: 0.1nF-20µF Resistance: 0.1MΩ-20GΩ |
|
Output task |
continuous |
|
Test mode |
Manual or Automatic |
|
Output mode (Unrelated to load, symmetrical) |
VLFACSinewave VLFACSquarewaveDC[+or–polarity] VacuumBottleTesting |
|
Arc Management Mode |
Troubleshooting method: Arc combustion Fault tripping method: Arc extinguishing tripping |
|
PC Interface |
RS232 (standard) USB flash drive module (optional) |
|
Record storage |
Built-in memory: Up to 50 reports, 40 test sequences USB Flash Drive: Unlimited Memory |
|
Computer software (including) |
HVRControlCenterforWindowsXP/Vista |
|
Weight |
19.5kg |
|
Size (Controller not included) |
430mmx360mmx250mm(17"x14"x10") |
|
Environment |
Storage temperature: -25°C to 70°C (-13°F to 158°F) Operating temperature: -5°C to 45°C (23°F to 113°F) Humidity: 5-85% (non-condensing) |
Product feature and application
☆Advanced Technology: Adopts digital frequency conversion technology and microcomputer control, fully automating the testing process including voltage boosting, voltage bucking, measurement, and protection.
☆Equipment operation: Simple wiring and easy to use.
☆Comprehensive protection: Multiple protections (overvoltage protection, high and low voltage side overcurrent protection), rapid action (action time ≤10ms) , and safe and reliable instrument.
☆Safe and reliable: The controller and high-voltage generator are connected at low voltage, and photoelectric control ensures safe and reliable operation. ☆It adopts a high- and low-voltage closed-loop negative feedback control circuit, eliminating the capacitive rise effect at the output .
☆Fully equipped: Capacitive touchscreen, LCD Chinese character display, automatic saving, automatic printing
☆ Wide testing range: Multiple frequency options including 0.1Hz, 0.05Hz, and 0.02Hz provide a wide testing range.
☆Chinese/English language switching and USB function
Prodection details
◆ Acceptance, preventive withstand voltage and dielectric loss testing of 35kV and below rubber and plastic insulated power cables
◆ Insulation withstand voltage test for large and medium-sized steam turbine/hydro turbine generators and electric motors
◆ Insulation performance testing of large-capacity electrical equipment such as power capacitors
◆ AC withstand voltage test (an alternative to DC withstand voltage test) for preventive insulation testing of electrical equipment.
