400 KV- 30 KJImpulse Voltage Generator

MOEORW-W314 (400 kV-30 kJ) Impulse Voltage Generator

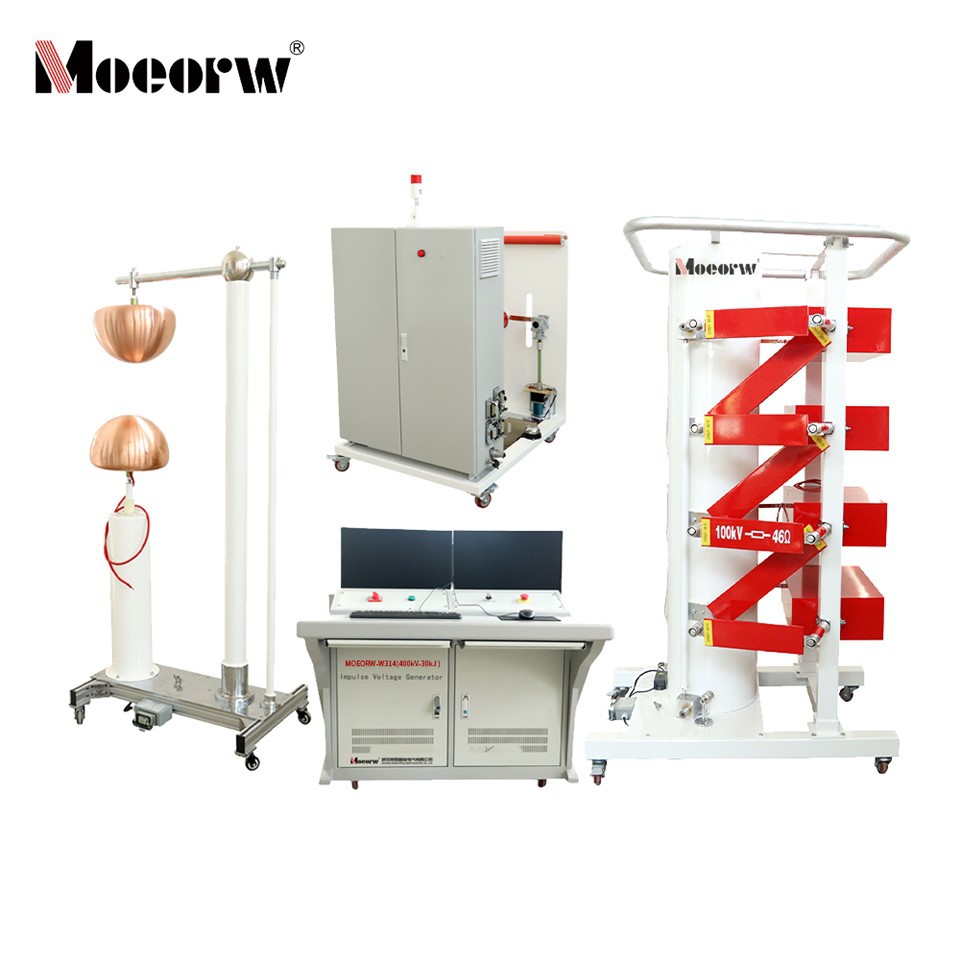

The MOEORW-W314 (400kV-30kJ)Impulse Voltage Test System is suitable for impulse voltage testing of power transmission and transformation equipment. It can generate various standard waveforms and its core components include four main parts:

Charging components include a rectifier, charging transformer, and automatic grounding device, supporting constant current charging.

Generator body: pulse capacitor, various resistors, ignition ball gap, insulating support, tower structure.

Control console: PLC measurement and control system, with display and operation modules, supporting both manual and automatic control.

Measurement equipment: weakly damped capacitive voltage divider, oscilloscope, measurement cable; accurate measurement with anti-interference capability.

This series of Lightning Impulse Voltage Test Set is mainly used to generate standard full-wave lightning impulse voltage, chopped lightning impulse voltage, oscillating lightning impulse voltage wave, standard operating impulse voltage wave, oscillating operating impulse voltage wave, and steep-wave impulse voltage wave for impulse voltage testing and other scientific experiments on insulators, air gaps, bushings, power transformers, surge arresters, GIS and other power transmission and transformation equipment.

This series of impulse voltage generators adopts an epoxy-supported tower structure, with a stage voltage of 100 kV. The impulse voltage generators feature advanced technical specifications, a compact structure, and an attractive appearance.

I. Usage Conditions

1.1 The altitude shall not exceed 1000 meters;

1.2 The ambient temperature is -10℃ to +45℃, and the relative humidity is not greater than 90%;

1.3 Free from dust and corrosive gases;

1.4 The generator body should be reliably grounded nearby, and the grounding grid should have a low grounding resistance (below 0.5 ohms) and good impulse characteristics.

Rated Parameters

● Superior structure : Epoxy pillar tower structure, compact and aesthetically pleasing; core components with movable chassis, resistive plug-in type, ball gap electric adjustment, convenient for disassembly/movement/operation.

●  High performance : charging voltage deviation and instability are both <±1.0%, amplitude adjustment error is ≤1%; generator efficiency is high (lightning full wave ≥90%), waveform parameters are accurate, and meet national/IEC standards.

●  Intelligent control : Siemens PLC core, opto-isolation for anti-interference; supports manual/automatic dual modes, constant current charging can automatically track set value, rapid switching between positive and negative polarity, visual interface, and precise parameter setting.

● Full-featured : It can generate various waveforms such as full-wave/cut-off wave, switching wave, and steep wave of lightning, and is suitable for testing various power transmission and transformation equipment; it can be expanded to the 1500kV level, has good continuous operation capability, and high voltage utilization coefficient.

●​​​​​​​ Accurate measurement : Equipped with a movable weakly damped capacitor voltage divider, the voltage division ratio accuracy is ±1%, and it has strong anti-interference capabilities; a 12-bit high-precision digital module acquires data, and the accuracy of various measurements reaches 0.5%.

●​​​​​​​ Strict protection : single-point grounding design with grounding resistance ≤0.5Ω; multiple protections including overvoltage/overcurrent/limit/emergency stop; alarm bell warning; two-person operation required for testing; contact with high-voltage end is strictly prohibited before discharge is complete.

●​​​​​​​ Easy to maintain : The components are clearly laid out, and faults are detected in real time and can be quickly reset; daily maintenance only requires cleaning the insulating parts, checking for oil leaks and grounding devices, resulting in low maintenance costs.
