Product Introduction

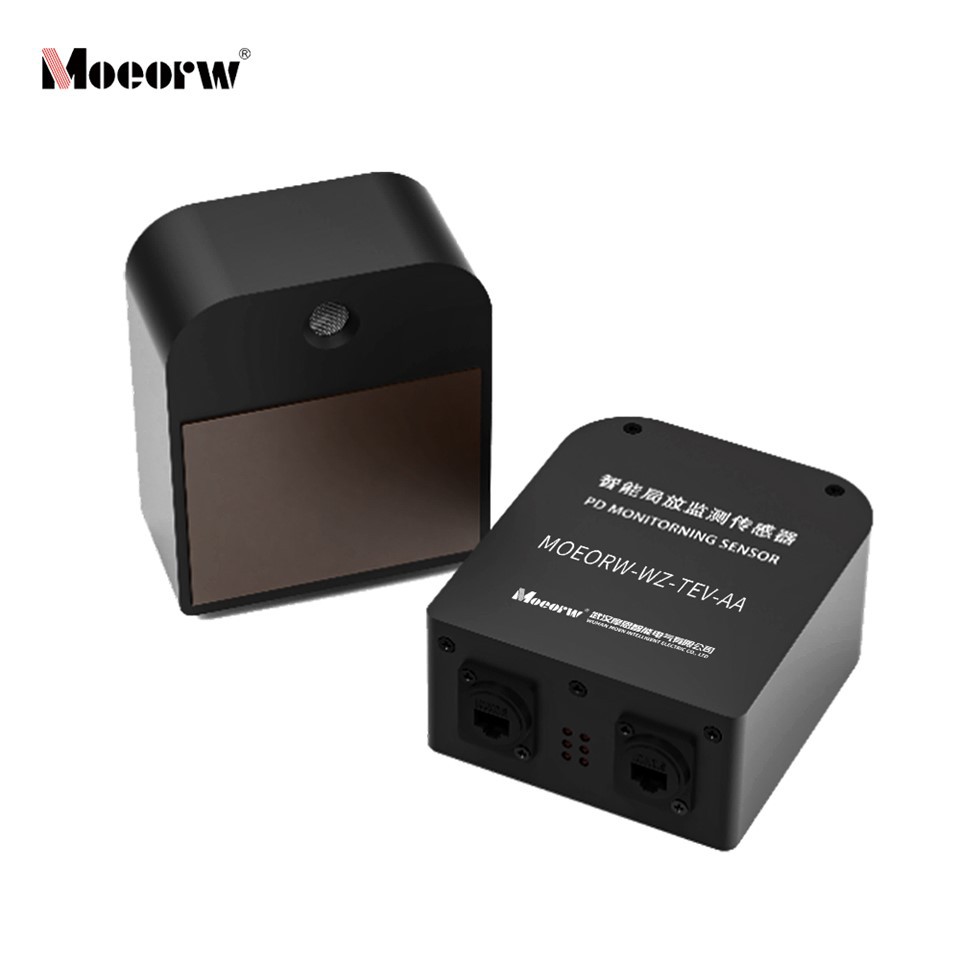

MOEORW-WZ-TEV-AA is an intelligent integrated partial discharge sensor optimized for outdoor distribution equipment such as ring main units and box-type substations. It adopts dual detection technology of TEV and AA, which can comprehensively perceive internal insulation discharge signals of the equipment.
The sensor features a full CNC aluminum housing and epoxy resin overall potting process, providing excellent waterproof, dustproof and anti-corrosion performance to adapt to complex outdoor environmental conditions. The innovative daisy-chain power and communication design allows up to 16 sensors to be connected to a single cable, significantly reducing wiring costs. The built-in high-performance microprocessor analyzes and processes the collected signals in real time, directly outputting characteristic values such as discharge peak and pulse count.
Product Parameter (specification)
|
Detection Type |
Parameter |
Value |
|
AA Ultrasonic |
Dynamic Range |
0-65dBuV |
|
Center Frequency |
40KHz |
|
|
Repeatability Error |
≤±5% |
|
|
TEV |
Dynamic Range |
0-65dBmV |
|
Bandwidth |
3MHz-100MHz |
|
|
Pulse Count Error |
≤±5% |
|
|
Communication |
Interface |
RJ45 Ethernet |
|
Protocol |
Modbus RTU |
|
|
Power Supply |
DC 24V |
|
|
Installation |
Magnetic (Cabinet Surface) |
|
|
Environment |
Temperature: -40℃~85℃, Humidity: 5%~95% non-condensing |
Product Features
- New generation intelligent algorithm, reduces false alarm rate by 30%
- Industrial-grade CNC magnetic design, ≥50N adsorption force, stable in vibration environments
- Hot-swappable daisy-chain architecture, sensor replacement without power shutdown
- Built-in watchdog circuit, automatic restart on abnormality, ensures long-term reliability
- Standard Modbus 485 protocol, seamless connection to SCADA and EMS systems
Product Application
- Outdoor ring main unit (RMU) long-term online monitoring
- Box-type substation insulation status detection
- Distribution automation system PD monitoring nodes
- Street lighting distribution cabinet remote monitoring
- New energy charging station power equipment monitoring
Company Qualifications
FAQ
Q1: What is the difference between this model and WP70?
A: This model is optimized for outdoor environments, with enhanced anti-vibration and anti-corrosion performance, and built-in watchdog circuit for higher reliability.
Q2: Can sensors be replaced without powering down the entire system?
A: Yes. The hot-swappable daisy-chain design allows replacing a single sensor without affecting the operation of other sensors in the chain.
Q3: What data does the sensor output?
A: It outputs real-time discharge peak value, pulse count and signal intensity, which can be directly used for equipment status evaluation.
Q4: Is it compatible with third-party power monitoring systems?
A: Yes. It uses standard Modbus RTU protocol, which can be seamlessly connected to SCADA, EMS and other mainstream power monitoring systems.
