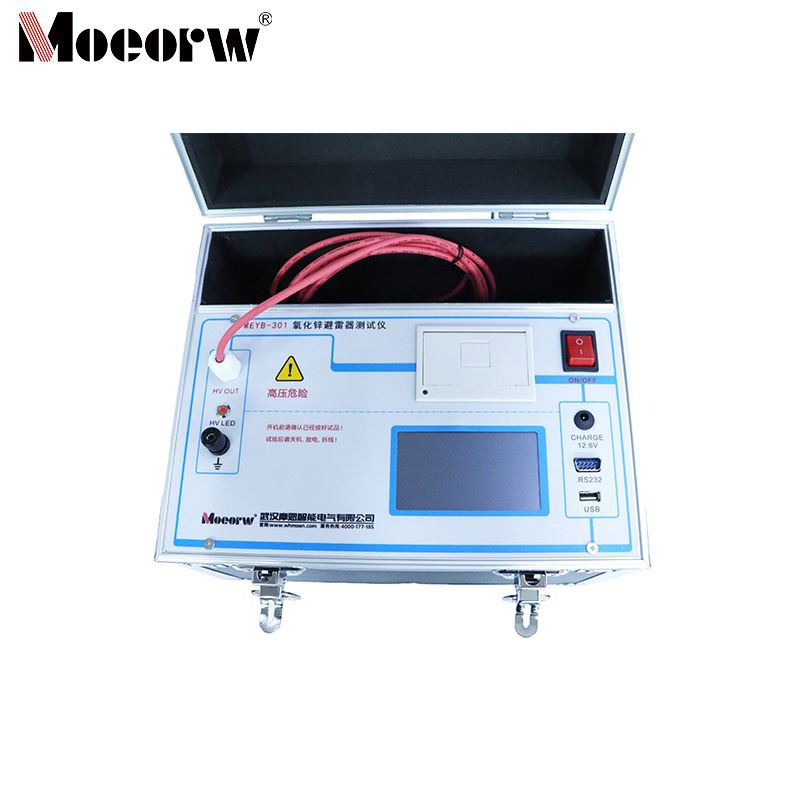

MEYB-W301 Zinc Oxide Surge Arrester Tester. This instrument integrates a DC high-voltage power supply with measurement and control systems, reducing its size and weight. It replaces traditional bulky testing equipment and methods with user-friendly operation settings. It supports touchscreen operation, remote control via a remote controller, wireless operation via a mobile Bluetooth app, wired operation via RS232/RS485 connections (optional), and external I/O line control operation, offering exceptional flexibility. external IO wired control, and other measurement methods, offering exceptional flexibility.

1. One-Touch Testing: This method automatically finishes testing with only one button push and shows the findings right away.
2. Color Touchscreen: An interactive user interface on a 320x240 high-definition color touchscreen.
3. Built-in Lithium Battery: Standard configuration contains a high-capacity lithium-ion battery, perfect for power-free conditions.
4. Integrated Calendar Clock: An integrated calendar clock offers time references for data storage and printing.
5. Temperature & Humidity Monitoring: High-precision display of current temperature and humidity values.
6. Massive Test Data Storage: A lot of test data is kept in large-capacity internal memory. Features data storage, browsing, and power-off protection.
7. USB Data Export: Equipped with USB data export capabilities, exporting data as Word files.

8. Bluetooth Control & Data Upload: Standard Bluetooth functionality with Android Bluetooth app. Install the app on a phone or tablet to test, pause, upload, share, print via Bluetooth printer (optional), and produce Word files.
9. Integrated Training Resources: To help with on-site usage, the screen shows several wire setups.
10. English input for test data: This feature makes it easier to identify and label test data during storage and printing by supporting English entry for locations, equipment, persons, notes, etc.
11. Language switching: Directly toggle between Chinese and English interfaces to support both domestic and foreign usage scenarios (optional).

12. Thermal printer: On-site thermal printer for test result output; optional external wireless Bluetooth printer available.
13. Flexible connection: Optional serial port RS232 or RS485 MODBUS connection, optional IoT MQTT test control upload.
14. High-Speed Sampling: Exceptionally high measurement precision, robust anti-interference performance, high sampling frequency, and sophisticated digital signal processing technology.
15. Portable Design: Lightweight design and a small chassis size make transportation simple.

This instrument blends a DC high-voltage power source with measuring and control systems, achieving a small footprint and decreased weight. Suitable for testing in varied contexts such as substations, repair workshops, industrial facilities, and labs, it substitutes traditional cumbersome testing equipment and methodologies. It is an important instrument for on-site inspections in power systems and at zinc oxide arrester production plants.
