High Voltage 10kV Insulation Resistance Tester Calibrator with Auto-Range
Product Introduction

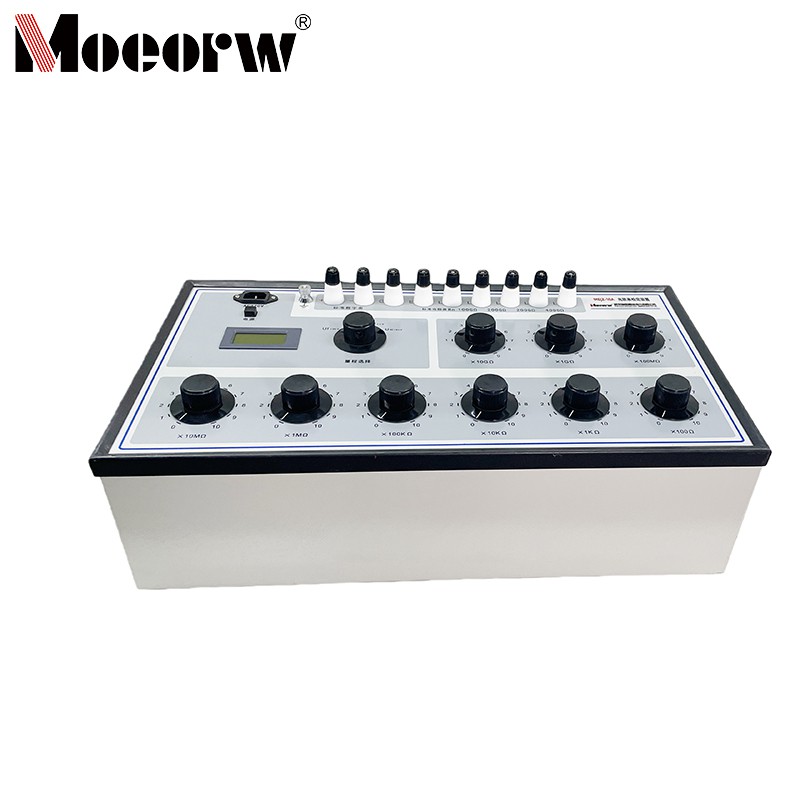

The MOEORW-WRZ33 Insulation Resistance Tester Calibrator is a high-precision, specialized standard instrument designed for the verification and calibration of all types of insulation resistance testers with rated voltages up to 10kV. Developed in strict accordance with the authoritative national regulations JJG1005-2019 and JJG622-1997, this advanced unit seamlessly integrates a high-precision standard digital voltmeter and a wide-range, high-voltage, high-resistance decade box. It provides an all-in-one, highly accurate reference standard for verifying electronic insulation resistance testers and traditional megohmmeters.
Products Description
📊 1. Voltage Measurement (Standard Digital Voltmeter)
| Parameter | Technical Specifications & Performance |
| Measurement Range | 0 ~ 10,000 V DC |
| DC Voltage (U) Basic Error |
≤1000V: ±(0.4% of reading + 0.1% of full scale) >1000V: ±(0.5% of reading + 0.5% of full scale) |
|
Peak voltage (Uf) |
≤1000V: ±(1% of reading + 0.5% of full scale) >1000V: ±(0.5% of reading + 0.5% of full scale) |
| Response Time | Approx. 25 seconds |
⚙️ 2. Standard Resistors & Decimal Disk Parameters
| Resistance Feature | Value / Specification |
| Total Resistance Range | 0 ~ 1,000,011.1110 MΩ |
| Minimum Step | 100 Ω |
| Maximum Withstand Voltage | 10 kV |
| Residual Resistance | < 1 Ω (Variation ≤ 0.1 Ω) |
| Insulation Resistance (Circuit to Casing) | ≥ 1 × 10^11 Ω |
🛡️ High-Voltage Operational Safety Note:
Calibrating testers at 10kV introduces serious residual static charge risks. Learn how our active "DISCHARGE" design protects your technicians and precision equipment post-measurement.
👉 [Click Here to Read Our 10kV Safety & Verification Blog]
🎛️ Detailed Dial Ratings (Grade Index & Maximum Operating Limits)
|
Decimal disk resistance |
Fixed resistor |
×10000 MΩ |
×1000 MΩ |
×100 MΩ |
×10 MΩ |
×1 MΩ |
×0.1 MΩ |
×10 kΩ |
×1 kΩ |
×0.1 kΩ |
||
|
grade index |
5 |
2 |
1 |
0.2 |
||||||||
|
Maximum operating voltage and current |
10kV |
2500V |
1500V |
500V |
8 mA |
20 mA |
50 mA |
|||||
🌍 3. General & Environmental Specifications
| Environmental Reference Conditions | Temperature: 20 ± 2 - 3 °C | Relative Humidity: 50% ± 10% |
| Nominal Operating Environment | Temperature: 23 ± 5 °C | Relative Humidity: 25% ~ 60% |
| Power Supply Voltage | AC 220V ± 10%, 50Hz |
| External Dimensions | 600 mm × 323 mm × 220 mm |
| Weight | Approx. 10 kg (22 lbs) |
Key Features & Technical Advantages
⚡ 1. Full-Range Coverage & Multi-Function Integration
Wide Resistance Range: 0 to 1,000,011.1110 MΩ with a precise minimum step of 100 Ω.
Built-in DC Voltmeter: Integrated 0–10,000V DC digital voltmeter for comprehensive voltage testing.
All-in-One Verification: Fully verifies indication errors, drop voltage (Ud), open-circuit voltage (Uk), mid-scale voltage (Uz), and peak voltage (Uf) for both electronic and analog megohmmeters (compatible with CY3 constant-speed drive units).
🎯 Key Advantage: This versatile, all-in-one design eliminates the need for multiple standard instruments, drastically reducing laboratory procurement costs and saving valuable bench space.
📊 2. High Accuracy & Certified Traceability
Voltage Measurement Accuracy:
- ≤1000V: ±(0.4% of reading + 0.1% of full scale)
- ＞1000V: ±(0.5% of reading + 0.5% of full scale)
Resistance Decade Dials: Achieves a superior accuracy class up to 0.2 grade.
🎯 Key Advantage: Fully traceable to authoritative national metrological standards. This rigorous data assurance ensures hassle-free compliance and smooth audits against ISO/IEC 17025 quality management systems.
🛡️ 3. Superior Safety Design & Equipment Protection
High Insulation Protection: Enclosure insulation resistance ≥1X1011Ω
Safe Voltage Dissipation: Equipped with a dedicated front-panel "DISCHARGE" switch to safely eliminate residual high voltage post-measurement.
Anti-Overload Markings: Each dial is clearly marked with maximum operating voltages (up to 10kV) or currents (up to 50mA) to actively prevent accidental overload damage.
🎯 Key Advantage: Engineered for high-voltage operational safety, this robust design minimizes workplace risks, protects precision equipment, and ensures full liability protection for your laboratory.
Applications & Use Case
Industrial & Enterprise Calibration: Widely used in power plants, industrial factories, mining facilities, and government institutions for verifying and calibrating all types of insulation resistance testers up to 10kV.
Manufacturing & Repair Bench Standard: Serves as a reliable laboratory reference standard for manufacturers and maintenance centers during the production, quality testing, and repair of megohmmeters.
Flexible Standalone Lab Tool: Features fully decoupled functional components, allowing the high-resistance decade box and the 10,000V DC digital voltmeter to be utilized independently for various standalone testing applications.
Quality Assurance & Professional Services
Certified Traceability & Calibration: Our manufacturing facility maintains advanced standard resistors and high-voltage reference sources fully traceable to the National Institute of Metrology (NIM). Every MOEORW-WRZ33 unit undergoes a rigorous, multi-point, per-dial calibration process before shipment to guarantee that actual accuracy and stability exceed all published specifications.
Strict Aging & Heavy-Duty Testing: To eliminate initial component drift, all critical high-voltage resistor components undergo thorough aging screening and thermal cycling tests. Furthermore, every finished calibrator must pass a 10kV dielectric strength insulation safety test, ensuring long-term field reliability and ultimate operational safety.
ISO 9001 Quality System Control: Operating under a certified ISO 9001 quality system, our factory implements total-process control. From strict component incoming inspection to final product release, every step is fully documented to ensure peak product consistency.
Tailored Customization & Full Lifecycle Support: We deliver complete, integrated solutions, including customized premium test leads and specialized constant-speed drive units (such as our CY3 model). Backed by custom high-strength export packaging for safe long-distance transit, we provide comprehensive pre-sale technical consultations and dedicated after-sales support-including expert product training and long-term maintenance services.
What's in the Box (Packing List)
- MOEORW-WRZ33 Main Unit x 1
- Premium High-Voltage Test Lead Set x 1
- Heavy-Duty Power Cord x 1
- Comprehensive User Manual x 1
- Factory Calibration Certificate (with raw test data) x 1
Q1: Can the MOEORW-WRZ33 calibrate both electronic insulation testers and traditional hand-cranked megohmmeters?
A: Yes, absolutely. The MOEORW-WRZ33 is built with multi-functional integration to handle both electronic (digital) and analog (pointer-type) instruments. When coupled with a constant-speed drive unit (such as our optional CY3 model), it can fully verify specialized analog parameters including open-circuit voltage (Uk), mid-scale voltage (Uz), and peak voltage (Uf), as well as standard drop voltage (Ud) for digital testers.
Q2: Is the calibration data of this device fully traceable to international standards?
A: Yes. Our production facility maintains precision master references and high-voltage sources that are completely traceable to the National Institute of Metrology (NIM). The MOEORW-WRZ33 delivers laboratory-grade accuracy-achieving a 0.2-grade class on core resistance decade dials-making it fully compliant with the data traceability and audit requirements of quality management systems like ISO/IEC 17025.
Q3: How does the MOEORW-WRZ33 handle the risk of high-voltage residual charge after a calibration session?
A: Safety is a core pillar of our design. The MOEORW-WRZ33 features a dedicated "DISCHARGE" position prominently located on the front panel. Once a measurement at up to 10kV is completed, switching to this position actively and safely dissipates any residual static charge and high voltage within seconds, ensuring the operator can handle the test leads with total safety.
Q4: Can the built-in DC digital voltmeter and the high-resistance decade box be used separately for other laboratory tests?
A: Yes, they are engineered as decoupled circuits. The resistor section and the 0 to 10,000V DC voltmeter section can operate completely independently. This means you can use the decade box as a standalone high-voltage standard resistor bank or utilize the digital meter as a standalone 10kV high-precision voltmeter, maximizing your laboratory bench utility.
Q5: What standard safety and overload protections are implemented for the dial switches?
A: To eliminate human error and protect the unit, each decade dial is engraved with its precise maximum allowable operating voltage (e.g., 10kV / 2500V / 500V) or current (e.g., 8mA / 20mA / 50mA). Additionally, the internal structure boasts an ultra-high circuit-to-case insulation resistance of greater than or equal to 1 x 10^11 ohms, preventing internal breakdown during full-load high-voltage operations.
Get Your Technical Proposal & Quotation
Ready to upgrade your calibration laboratory or need to verify specific parameters? Fill out the brief form below. Our senior metrology application engineers will review your requirements and provide a detailed technical proposal and customized quotation within 24 hours.
