Product Introduction

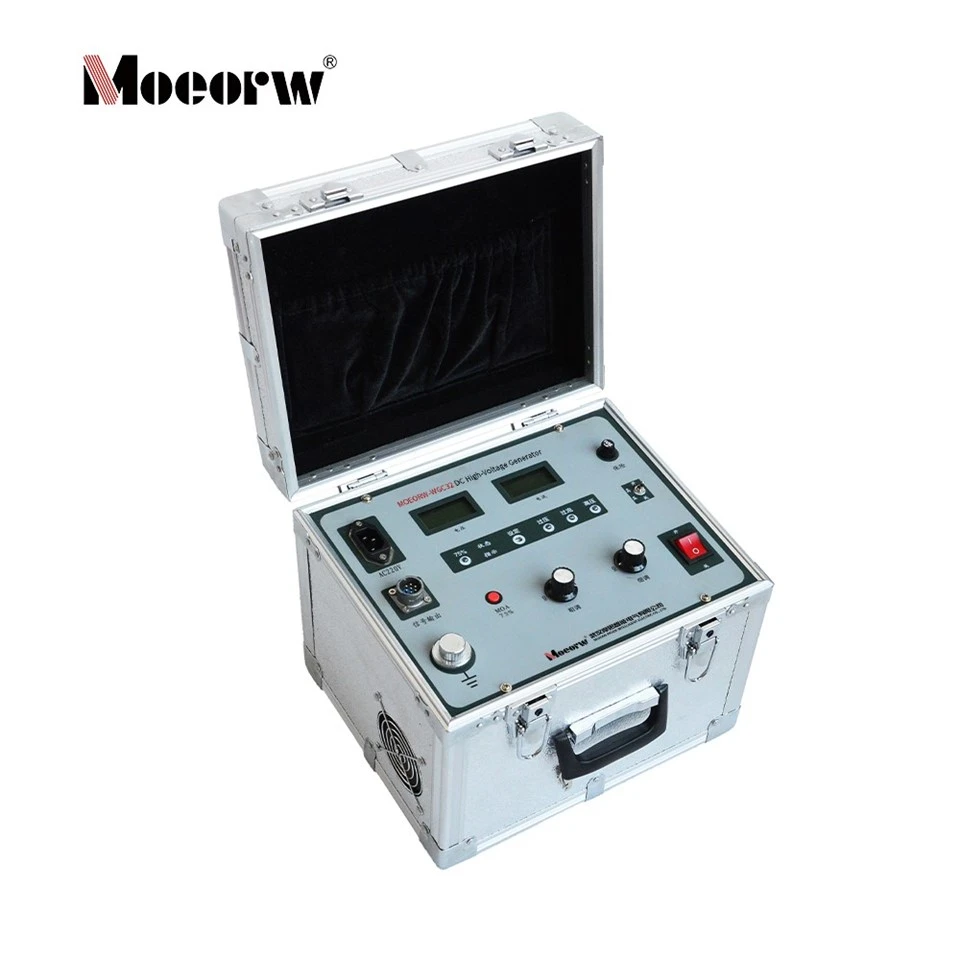

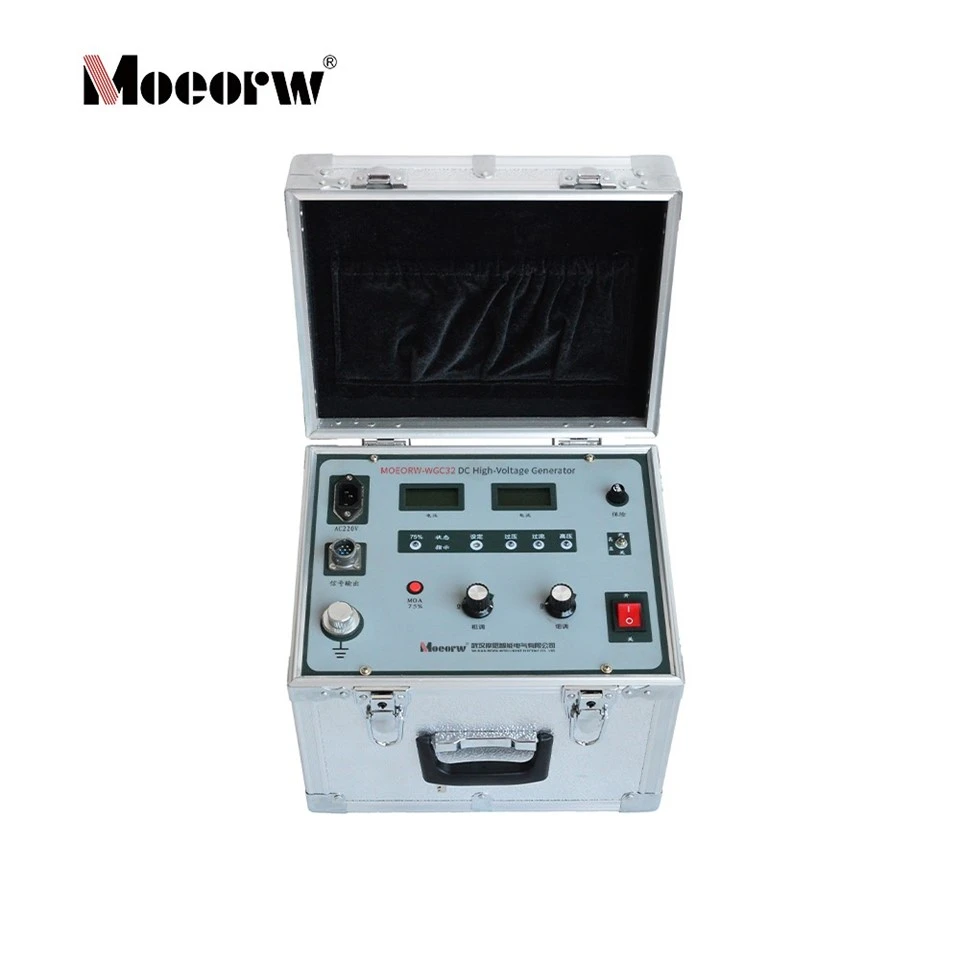

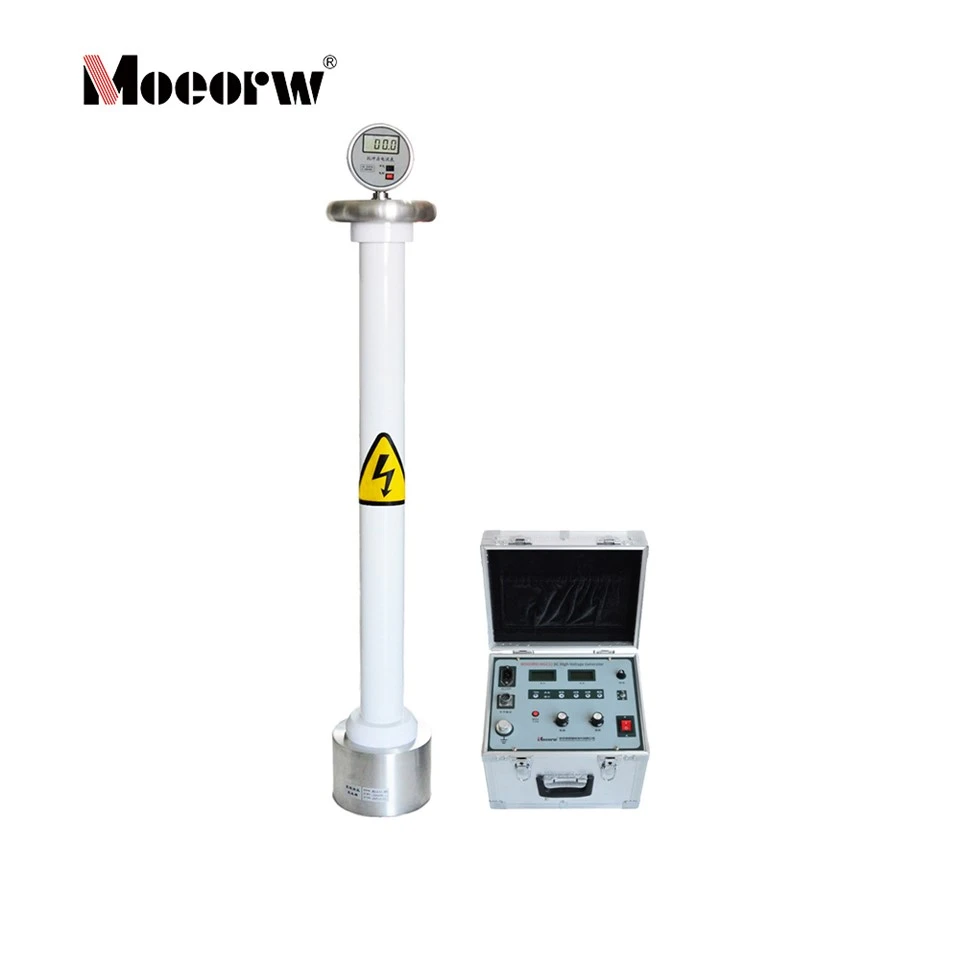

MOEORW-WGC32 is a multi-range portable DC high voltage generator covering 60kV to 300kV. It adopts PWM high-frequency closed-loop control, solid encapsulated multiplier, and intelligent protection system. Stable, lightweight, and easy to operate, it is widely used for on-site testing of power cables, arresters, transformers, and substation equipment.
Product Parameter (specification)
| Rated Voltage | 60kV / 80kV / 100kV / 120kV / 200kV / 300kV |
| Rated Current | 2mA–5mA (By Model) |
| Input | AC220V±10%, 50Hz |
| Voltage Accuracy | ±0.5% rdg ±1 digit |
| Current Resolution | 0.1μA |
| Ripple Factor | ≤0.5% |
| Working Mode | Intermittent, ≤60mins |
| Control Box | 310×250×230mm |
| Weight | 5–9kg (By Model) |
Product Feature
- Multi-range output from 60kV to 300kV for wide application
- PWM closed-loop control with high stability and low ripple
- One-key 75% MOA voltage for arrester test
- Overvoltage, overcurrent, short-circuit, zero-start protection
- Solid insulation, oil-free, maintenance-free
- Lightweight and shockproof for field use
- Clear digital display for easy reading
Product Application
- DC withstand & leakage test for 10kV–110kV power cables
- ZnO lightning arrester DC characteristic test
- Transformer, generator, circuit breaker insulation test
- On-site preventive test in power grid and industrial plants
- Laboratory and engineering DC high voltage supply
Company Qualifications
FAQ
Q: What voltage ranges does GC32 cover?
A: 60kV, 80kV, 100kV, 120kV, 200kV, 300kV.
Q: Does it support MOA arrester test?
A: Yes, one-key 75% voltage function.
Q: Is it suitable for outdoor use?
A: Yes, portable and rugged design.
Q: What protection functions are included?
A: Overvoltage, overcurrent, short-circuit, zero-start, grounding interlock.
Q: Maintenance required?
A: Solid insulation, almost maintenance-free.
