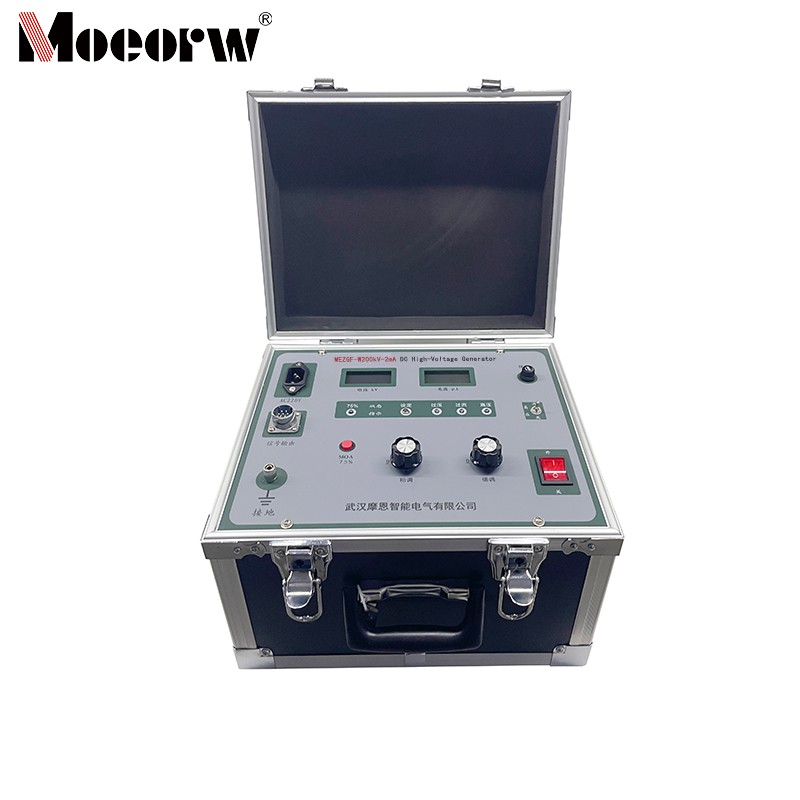

High Voltage Generator DC 200kV 2mA

Product Introduction

MEZGF-W200kV/2mA DC High-Voltage Generator employs PWM high-frequency pulse width modulation technology with closed-loop adjustment, delivering high voltage stability, minimal ripple factor, and fast, reliable protection circuits. The display unit features a wide-temperature LCD screen with green backlighting for clear data visibility in both bright light and darkness. The high-voltage unit utilizes DuPont's new filling material, enhancing product stability and reliability. This product is widely used as a DC high-voltage stabilized power supply in preventive testing by power generation and supply departments, transmission and transformation engineering companies, large industrial plants and mines, as well as research institutes

Product Parameter (specification)

♦ Integrated Unit
Rated Voltage : 200 kV	Rated Current : 2 mA
Rated Power	400 W
High-voltage polarity	Negative voltage polarity, zero-voltage start, linearly and continuously adjustable
Operating power supply	50Hz AC 220V ±10%
Voltage measurement error	0.5% ±1 digit, maximum resolution 0.1kV
Current Measurement Error	0.5% ± 1 digit, maximum resolution 0.1μA
Ripple Factor	Better than 0.5%
Voltage Stability	Random fluctuation, ≤0.5% when grid variation is ±10%
Operating Mode	Intermittent duty cycle, rated load for 60 minutes
Ambient Temperature	-20°C to 40°C
Relative Humidity	≤90% at 25°C, altitude below 3000 meters
External Dimensions = Equalizing Hood Diameter (R) × Insulating Cylinder Diameter (r) × Total Height (H)

Product feature and application

1. Utilizes PWM high-frequency pulse width modulation technology for closed-loop adjustment, delivering high voltage stability, minimal ripple factor, and rapid, reliable protection circuits. Withstands direct ground discharge from high-capacitance test specimens. Compact and lightweight design facilitates field use.

2. Full-range linear voltage adjustment with smooth regulation, achieving voltage accuracy better than 0.1%; Voltage measurement accuracy: 0.5%, resolution: 0.1kV; Current measurement accuracy: 0.5%, resolution: 0.1µA.

3. Power supply: AC 220V (±10%, 50Hz ±1%), ripple factor <0.5%. Suitable for all-weather operation at work sites.

4. High-voltage multiplier employs DuPont materials in fully solid-state encapsulation, eliminating inconveniences associated with air-filled or oil-filled equipment. Wide base with polished outer cylinder ensures stable placement and easier maintenance.

5. 75% voltage conversion button simplifies arrester testing.

6. Features an overvoltage static setting function with real-time overvoltage display during adjustment. Comprehensive overvoltage, overcurrent, and short-circuit discharge protection make it the ideal companion for cable testing.

7. Includes complete open-circuit and non-zero potential startup protection, ensuring operator and test specimen safety at all times. The shockproof control box features an integrated design with a clear, intuitive panel layout and audible operation prompts.

Prodection details

The device is extensively utilized as a DC high-voltage stabilized power supply in power generation and supply departments, transmission and transformation engineering businesses, large-scale industrial facilities and mining enterprises for preventative testing, as well as in research institutions.

Company Qualifications

FAQ

1)can dc voltage arc ?

Discharge of high-capacitance test specimens must be conducted using a 100Ω/V discharge rod. During discharge, the rod cannot come into direct touch with the specimen. Instead, progressively approach the specimen until an audible hissing sound indicates the beginning of air gap ionization discharge at a certain distance. When the sound stops, the rod may be used to start the discharge, and connecting straight to the ground lead can finish the discharge.

2)is high voltage dc harmful ?

The spatial electric field distribution of high-voltage DC ions may induce variable DC potentials among humans standing in close proximity at high-voltage DC levels of 200kV and beyond, even if test workers wear insulated footwear and stay beyond the safety distance. Test personnel should avoid from shaking their hands or making touch with earthed surfaces since doing so might create a mild electric shock. This phenomena is especially visible in dry places, particularly in the winter, even though the little quantity of energy involved frequently provides negligible risk to individuals.

3)How much DC voltage is possible?

Hi, your product's voltage rating defines the highest voltage that may be achieved. Do not hesitate to ask for further specs if you require them.
